Запчасти Case IH 7140 (74.136.AD[01]) - PULLEY, FAN, DRIVE (74) - CLEANING

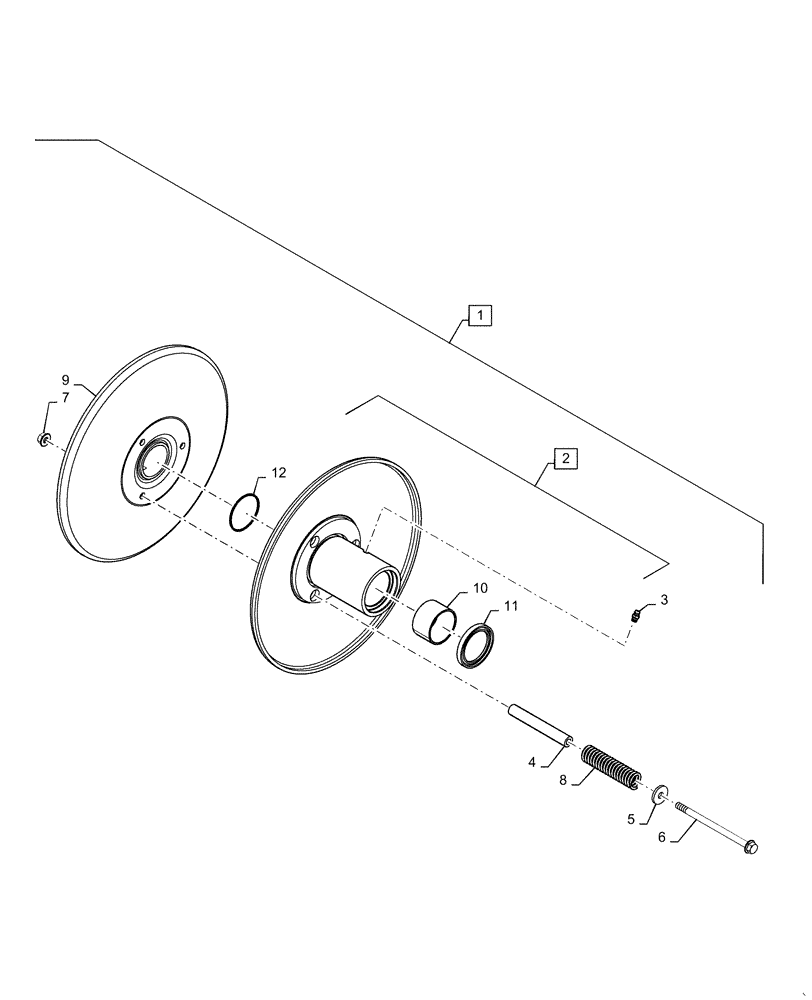

Схема запчастей Case IH 7140 - (74.136.AD[01]) - PULLEY, FAN, DRIVE (74) - CLEANING
6
12
10
8
5
11
4
2
7
9
3
1

Артикул

Название

Примечание

Количество

1

87494908

PULLEY

Cleaning Fan Drive, Incl 2 - 12

1шт.

2

84556153

PULLEY,285mm OD

Fan Driven, Adjustable, Incl 10 - 12

1шт.

3

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

4

1302180C2

BUSHING,8.2mm ID x 14.27mm OD x 101.6mm L

Fan Drive

3шт.

5

495-81117

WASHER,.344" x 1" x .120"

3шт.

6

87681208

BOLT,Hex, M8 X 130, Class 10.9

3шт.

7

87681210

FLANGE NUT,M8 x 1.25, Cl 10

3шт.

8

1302181C2

SPRING

Fan Drive

3шт.

9

87522943

PULLEY,285mm OD

Fan Driven, Fixed

1шт.

10

1541551C1

BUSHING,44.32mm ID x 48.97mm OD x 30.2mm L

Fan Hub

2шт.

11

1541775C1

SEAL

Fan Sheave

1шт.

12

238-5327

O-RING,0.21" Thk x 1.725" ID, -327, Cl 5, 75 Duro

1шт.

Выбрано товаров: 12
