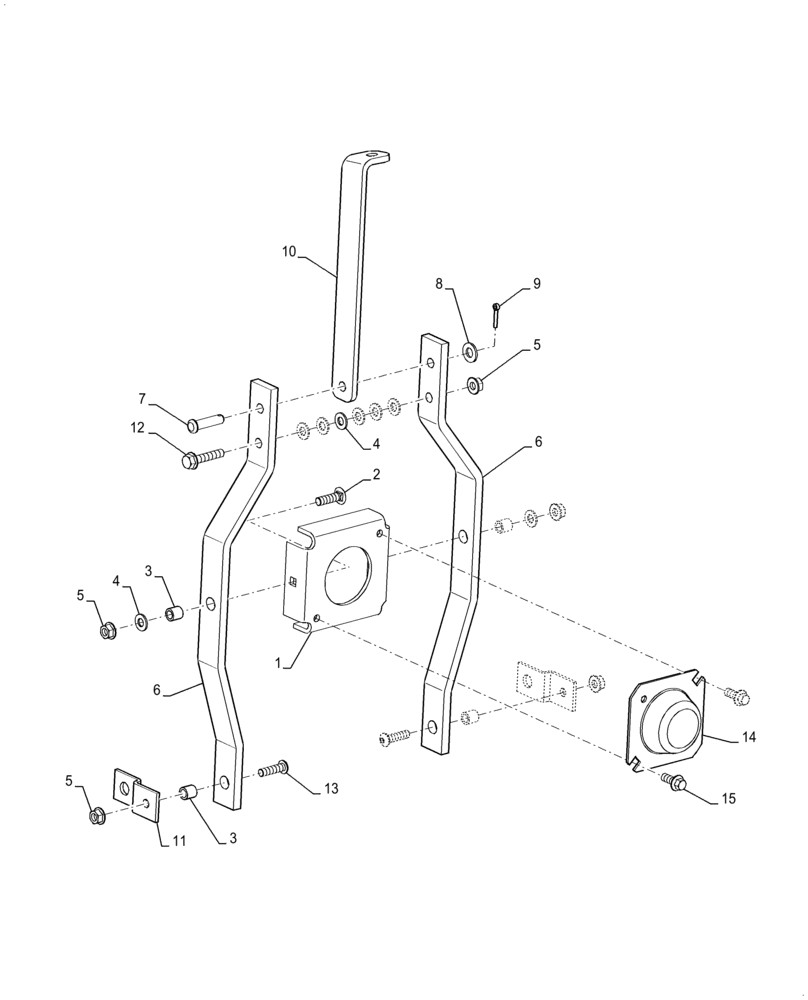

Запчасти Case IH 7140 (74.136.AA) - PIVOT, FAN, SPEED GOVERNOR (74) - CLEANING

1

87647073

BRACKET

Fan Driver

1шт.

2

87682385

CARRIAGE BOLT,Sht Sq Nk, M8 x 30mm, Cl 10.9

2шт.

3

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

4шт.

4

83918746

WASHER,0.34" ID x 0.69" OD x 0.07" Thk

8шт.

5

86507066

FLANGE NUT,M8 x 1.25, Cl 10

5шт.

6

87647079

COVER ASSY

Bar, Fan Control

2шт.

7

84157001

PIN,9.53mm OD x 41.66mm L

Headed, .375" x 1.5"

1шт.

8

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

1шт.

9

80756

COTTER PIN,1/8" x 3/4"

1шт.

10

87647071

PLATE ASSY.

Fan Drive Control

1шт.

11

142853A2

SUPPORT

Bar, Fan Adjuster Extension

2шт.

12

87698834

BOLT,M8 x 48.1mm, Cl 10.9

Flange, M8 x 40mm, 10.9

1шт.

13

86512788

HEX SOC SCREW,Btn Hd, M8 x 1.25 x 30mm, Cl 10.9

2шт.

14

87647075

COVER ASSY

Fan Drive Bearing

1шт.

15

86625200

SELF-TAP SCREW,Hex Flng, M8 x 1.25 x 20mm

2шт.
