(74.130.AJ[03]) - SHIELD, TAILINGS ELEVATOR, REAR, RH

Запчасти Case IH 7140 (74.130.AJ[03]) - SHIELD, TAILINGS ELEVATOR, REAR, RH (74) - CLEANING

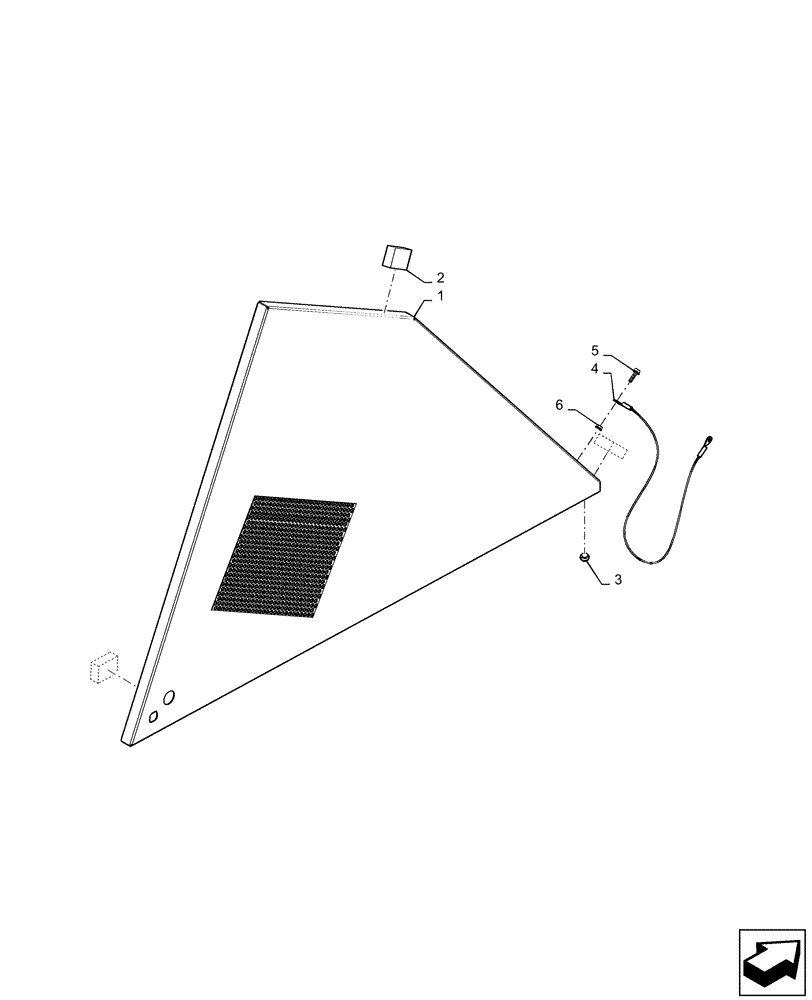

Схема запчастей Case IH 7140 - (74.130.AJ[03]) - SHIELD, TAILINGS ELEVATOR, REAR, RH (74) - CLEANING
4
6
2
3
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84393401

PROTECTION PLATE

Tailings Elevator/Spreader Drive

1шт.

2

187884C1

SEALING STRIP,50mm L

Foam

3шт.

3

1321640C1

GROMMET

Rubber Bumper

1шт.

4

132657A2

CABLE

Shield Tether

1шт.

5

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

2шт.

6

86050300

FLANGE NUT,M6 x 1.0, Cl 10

4шт.
