Запчасти Case IH 7140 (74.114.AZ[03]) - UPPER SIEVE, REMOTE CONTROL (74) - CLEANING

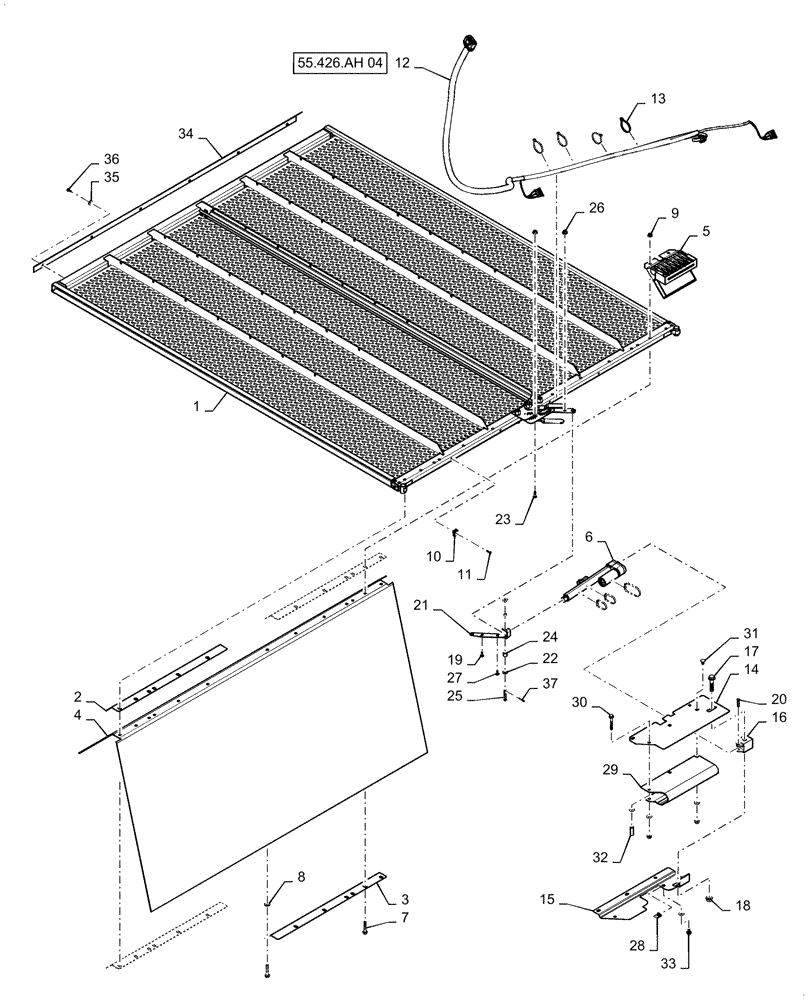

Схема запчастей Case IH 7140 - (74.114.AZ[03]) - UPPER SIEVE, REMOTE CONTROL (74) - CLEANING
30
13
20
33
25
6
9
21
27
4
19
18
8
16
11
12
17
36
10
1
28
23
15
7
32
24
26
2
5
14
34
3
37
22
29
55.426.ah 04
35
31

Артикул

Название

Примечание

Количество

1

87710707

SIEVE,Upper Peterson 1-1/8", 60" x 75.24""

Upper, Petersen

1шт.

1

87710709

SIEVE,Upper Closz 1 - 5/8, 60" x 75.24"

Upper, 1 5/8" Closz

1шт.

1

87710706

SIEVE,Upper Corn, 1-5/8", 60" x 75.24"

Upper, 1 5/8" Corn

1шт.

1

87710708

SIEVE,Closz 1-1/8", 60" x 75.24"

Upper, 1 1/8" Closz

1шт.

2

87711031

ANGLE

Seal, LH

2шт.

3

87711033

ANGLE

Seal, RH

2шт.

4

87732448

CANVAS,1565mm L

Rear Sieve

1шт.

5

245361C2

TRANSMITTER

Grain Loss

2шт.

6

87347281

ACTUATOR

Remote Sieve Adjutment

1шт.

6

84335407R

REMAN-ELECTRIC MOTOR

Remote Sieve Adjutment

1шт.

6

84335407C

CORE-ELECTRIC MOTOR

Return Number

1шт.

7

87698763

FLANGE BOLT,Hex, M8 x 50mm, Cl 0.9

11шт.

8

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

6шт.

9

87681210

FLANGE NUT,M8 x 1.25, Cl 10

14шт.

10

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

6шт.

11

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

4шт.

12

87489861

WIRE HARNESS

Grain Loss/ Remote Actuation

1шт.

13

86566989

CABLE TIE,208mm L

11шт.

14

84130561

SHIELD

Actuator Mount, Top

1шт.

15

84130550

SHIELD

Actuator Mount, Bottom

1шт.

16

87705852

BLOCK

Actuator Control

1шт.

17

87301277

BOLT,M12 x 71.8mm, Cl 10.9

1шт.

18

86512497

FLANGE NUT,M12 x 1.75, Cl 10

1шт.

19

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

20

47479764

CLEVIS PIN,1/4" OD x 1.219" L

1/4" x 1.219"

1шт.

21

87705855

STRAP

Sieve Actuator

1шт.

22

86624138

WASHER,0.28" ID x 0.75" OD x 0.12" Thk

2шт.

23

374891

CARRIAGE BOLT,Rnd Head, M6 x 1 x 25mm, Cl 8.8

1шт.

24

87682401

SPACER,6.83mm ID x 10.29mm OD x 9mm L

1/8" Pipe, 9mm

2шт.

25

86624059

HEADED PIN,1/4" x 1 7/8"

1шт.

26

87301498

FLANGE NUT,Hex, M6 x 1.0, Cl 10

M6

4шт.

27

86512439

CARRIAGE BOLT,M6 x 16mm, Cl 8.8

2шт.

28

86508354

PUSH-ON NUT,M8 x 1.25

1шт.

29

87705853

COVER

Sieve Actuator

1шт.

30

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

1шт.

31

87020310

CARRIAGE BOLT,M8 x 1.25 x 20.8mm, Cl 10.9

2шт.

32

87698776

SPACER,8.48mm ID x 12.7mm OD x 36.5mm L

1шт.

33

87681207

BOLT,M8 x 24.1mm, Cl 10.9

1шт.

34

120001A1

DEFLECTOR

Angle, Chaffer Seal, Peterson Only

1шт.

35

495-31022

WASHER,#10

Peterson Only

6шт.

36

281-5458

SELF-TAP SCREW,Hex Washer, 0.19" - 24 x 1/2"

Peterson Only

6шт.

37

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

Выбрано товаров: 42
