Запчасти Case IH 7140 (74.114.AZ[02]) - UPPER SIEVE, STANDARD (74) - CLEANING

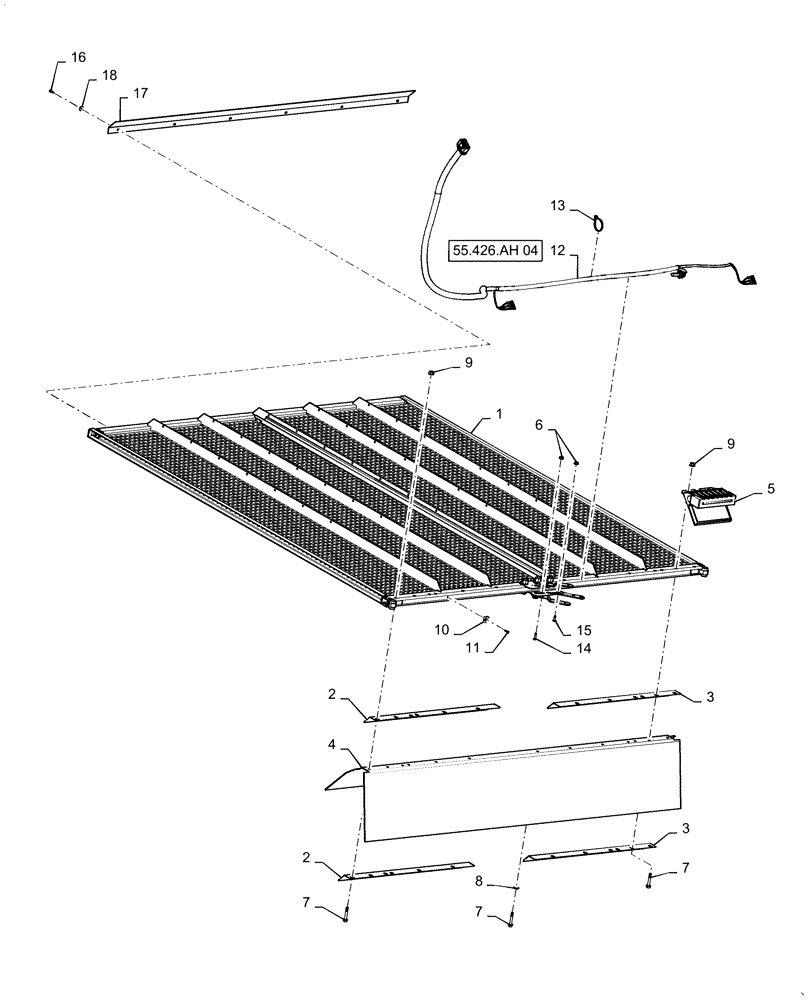

Схема запчастей Case IH 7140 - (74.114.AZ[02]) - UPPER SIEVE, STANDARD (74) - CLEANING
55.426.ah 04
4
13
3
12
5
2
10
1
7
16
7
2
11
7
15
17
14
18
9
6
8
3
9

Артикул

Название

Примечание

Количество

1

87710707

SIEVE,Upper Peterson 1-1/8", 60" x 75.24""

Upper, Peterson

1шт.

1

87710709

SIEVE,Upper Closz 1 - 5/8, 60" x 75.24"

Upper, 1 5/8" Closz

1шт.

1

87710706

SIEVE,Upper Corn, 1-5/8", 60" x 75.24"

Upper, 1 5/8" Corn

1шт.

1

87710708

SIEVE,Closz 1-1/8", 60" x 75.24"

Upper, 1 1/8" Closz

1шт.

2

87711031

ANGLE

Chaffer Seal, LH

2шт.

3

87711033

ANGLE

Chaffer Seal, RH

2шт.

4

87732448

CANVAS,1565mm L

Chaffer, Rear

1шт.

5

245361C2

TRANSMITTER

Grain Loss

2шт.

6

87301498

FLANGE NUT,Hex, M6 x 1.0, Cl 10

3шт.

7

87698763

FLANGE BOLT,Hex, M8 x 50mm, Cl 0.9

11шт.

8

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

1шт.

9

87681210

FLANGE NUT,M8 x 1.25, Cl 10

11шт.

10

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

6шт.

11

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

4шт.

12

87489861

WIRE HARNESS

Grain Loss

1шт.

13

86566989

CABLE TIE,208mm L

9шт.

14

374891

CARRIAGE BOLT,Rnd Head, M6 x 1 x 25mm, Cl 8.8

1шт.

15

86512439

CARRIAGE BOLT,M6 x 16mm, Cl 8.8

2шт.

16

281-5458

SELF-TAP SCREW,Hex Washer, 0.19" - 24 x 1/2"

Peterson Only

6шт.

17

120001A1

DEFLECTOR

Sieve, Front, Peterson Only

1шт.

18

495-31022

WASHER,#10

Peterson Only

6шт.

Выбрано товаров: 21
