Запчасти Case IH 7140 (74.114.AU[02]) - SIEVE ADJUSTMENT SWITCH, REMOTE CONTROL (74) - CLEANING

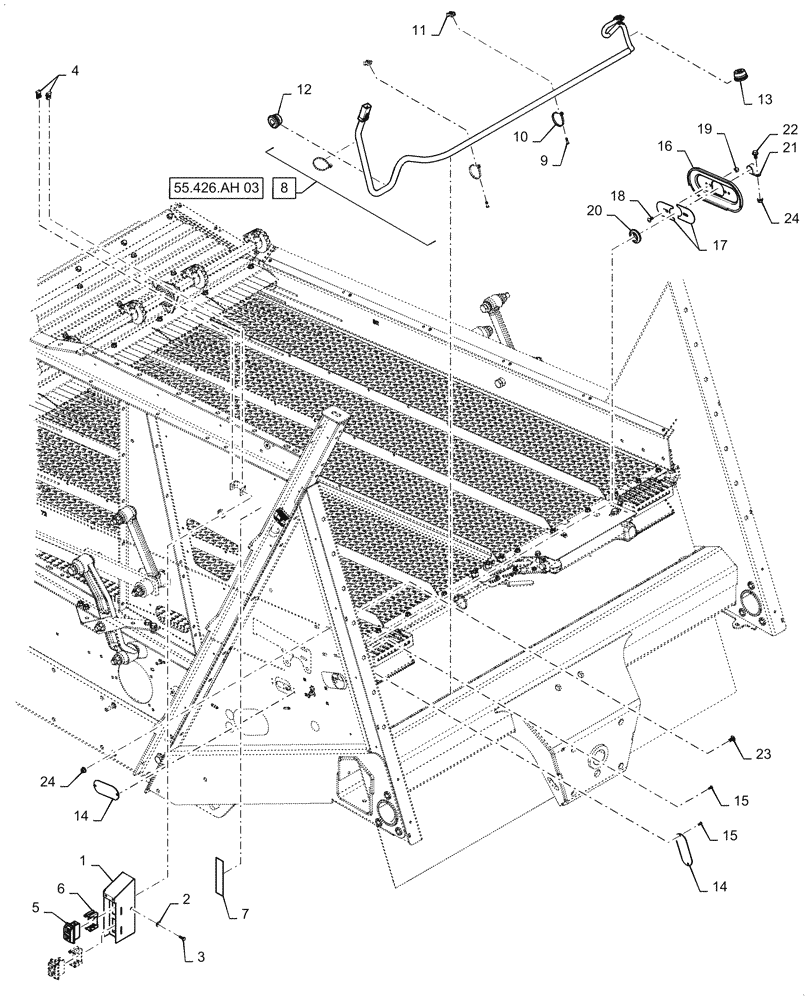

Схема запчастей Case IH 7140 - (74.114.AU[02]) - SIEVE ADJUSTMENT SWITCH, REMOTE CONTROL (74) - CLEANING
18
24
23
6
11
4
9
17
19
20
22
10
2
15
16
5
12
24
21
14
14
3
13
1
8
7
15
55.426.ah 03

Артикул

Название

Примечание

Количество

1

87011997

HOUSING

Upper/Lower Sieve Adjustment

1шт.

2

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

3

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

4

86014250

SPRING NUT,M6 x 1.0

2шт.

5

86627351

SWITCH, SIEVE ADJUST

Remote Adjust

2шт.

6

86627352

CLAMP

Switch Retainer

2шт.

7

87036589

DECAL

Remote Adjustment Switch

1шт.

8

87580679

WIRE HARNESS

Shoe Sieve Control, Incl 9, 10

1шт.

9

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

4шт.

10

86566989

CABLE TIE,208mm L

5шт.

11

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

4шт.

12

86976974

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

41.1mm OD x 19.05mm ID x 26.9mm

1шт.

13

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

41.1mm OD x 127mm ID x 26.9mm

1шт.

14

87389797

COVER

Threshing Frame

2шт.

15

445394

RIVET,Pop, 3/16" x 1/2" OAL

4шт.

16

84127513

SEAL

Upper Sieve Access

1шт.

17

87495389

COVER ASSY

Seal Retainer

2шт.

18

86512439

CARRIAGE BOLT,M6 x 16mm, Cl 8.8

2шт.

19

832-10406

NUT,M6 x 1, Cl 8

2шт.

20

248-1123

GROMMET,1" ID x 1 3/4" x .062"

1шт.

21

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

22

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

1шт.

23

87020310

CARRIAGE BOLT,M8 x 1.25 x 20.8mm, Cl 10.9

7шт.

24

86507066

FLANGE NUT,M8 x 1.25, Cl 10

8шт.

Выбрано товаров: 24
