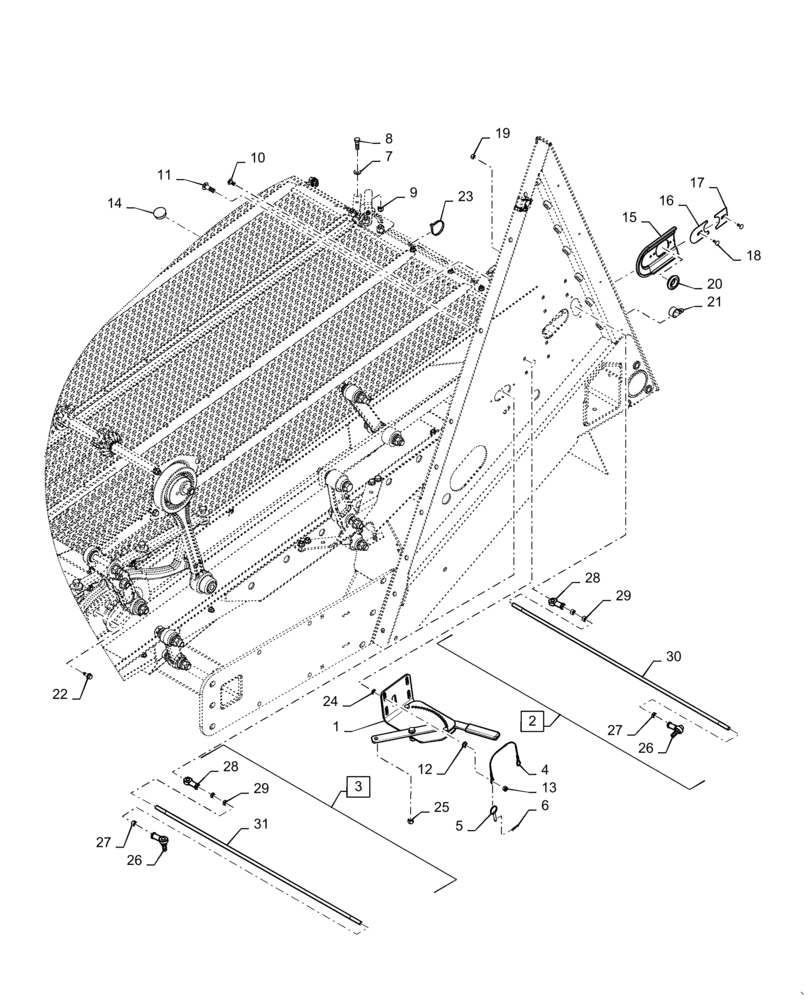

Запчасти Case IH 7140 (74.114.AU[01]) - EXTENSION, ADJUSTABLE SIEVE (74) - CLEANING

1

87605671

ADJUSTER

Upper/ Lower Sieve

2шт.

2

442374A1

TIE-ROD

Chaffer Sieve Adjustment, Incl 26 - 30

1шт.

3

84129225

ROD

Lower Sieve Adjustment, Incl 26 - 29, 31

1шт.

4

427336A1

CABLE,457.2mm L

Handle Retention

2шт.

5

87453256

PIN,6.35mm OD

Quick Release

2шт.

6

136-154

HAIR PIN COTTER,Int, 7/64" x .072"

2шт.

7

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

8

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

9

9637692

NUT,3/8"-16, Gr B

2шт.

10

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

6шт.

11

87682385

CARRIAGE BOLT,Sht Sq Nk, M8 x 30mm, Cl 10.9

2шт.

12

86507066

FLANGE NUT,M8 x 1.25, Cl 10

9шт.

13

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

14

353-414

PLUG,Dome, 1.375" Hole, Nylon

1шт.

15

84127513

SEAL

Frame

1шт.

16

87495389

COVER ASSY

Outer Seal Retainer, Front

1шт.

17

84127574

PLATE

Outer Seal Retainer, Rear

1шт.

18

86512439

CARRIAGE BOLT,M6 x 16mm, Cl 8.8

2шт.

19

832-10406

NUT,M6 x 1, Cl 8

2шт.

20

248-1123

GROMMET,1" ID x 1 3/4" x .062"

1шт.

21

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

22

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

1шт.

23

86566989

CABLE TIE,208mm L

1шт.

24

131-440

PUSH-ON NUT

5/16"

8шт.

25

80855

NUT,Hex, 3/8" - 24

2шт.

26

403123A1

BALL JOINT,3/8" - 24

Studded, 3/8"-24 LH Thread

2шт.

27

129-289

JAM NUT,Jam, 3/8"-24, G5, LH

2шт.

28

427179A1

BALL JOINT HEAD,3/8" - 24

Spherical, 3/8"-24 RH Thread

2шт.

29

425-156

JAM NUT,Jam, 3/8"-24, G5

2шт.

30

407139A2

ADJUSTMENT ROD

Upper Sieve

1шт.

31

407140A2

ADJUSTMENT ROD

Lower Sieve

1шт.
