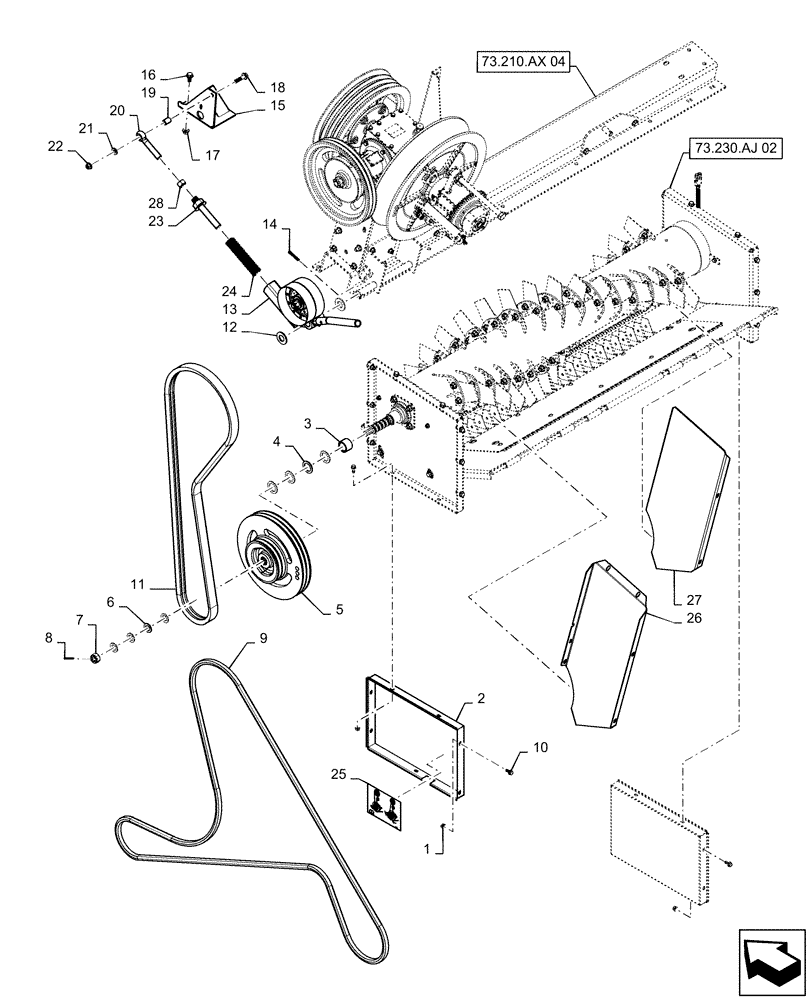

Запчасти Case IH 7140 (73.230.AJ[03]) - STANDARD STRAW CHOPPER (73) - RESIDUE HANDLING

1

86507066

FLANGE NUT,M8 x 1.25, Cl 10

10шт.

2

87753814

SHEET

Chopper Beater Filler

2шт.

3

87614520

SPACER

Chopper Driven Pulley

1шт.

4

87629040

WASHER,1.34" ID x 2" OD x 0.12" Thk

5шт.

5

87735266

PULLEY,356mm OD

Chopper Drive

1шт.

6

87629039

WASHER,0.91" ID x 1.5" OD x 0.12" Thk

4шт.

7

425-1314

SLOTTED NUT,7/8"-14, G5

1шт.

8

432-828

COTTER PIN,1/8" x 1 3/4"

1шт.

9

87476486

V-BELT,22.33 mm W x 5105.40 mm L

Cleaning System Drive

1шт.

10

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

10шт.

11

87330903

V-BELT,16mm W x 2748mm L, 2 Ribs

Chopper Drive

1шт.

12

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

2шт.

13

84146274

PACKAGE,SERVICE

Chopper Drive Idler Lever

1шт.

14

432-1624

COTTER PIN,1/4" x 1 1/2"

1шт.

15

84389239

SUPPORT

Idler Spring

1шт.

16

87343550

FLANGE BOLT,Hex, M12 x 25mm

2шт.

17

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

18

87670764

BOLT,M12 x 61.8mm, Cl 10.9

1шт.

19

87036416

SPACER,13.51mm ID x 19.05mm OD x 26.97mm L

1шт.

20

1315259C1

BOLT,3/4" - 10 x 113mm

1шт.

21

496-21053

WASHER,17/32" x 1 1/16" x .134"

1шт.

22

87681209

FLANGE NUT,Hex, M12 x 1.75, Cl 10

1шт.

23

87566525

PIN ASSY.

Tension Rod Connector

1шт.

24

87564865

SPRING

Idler Tension Chopper Drive

1шт.

25

175788A1

DECAL

Straw Chopper Drive

1шт.

26

182949C2

DEFLECTOR

Discharge, RH

1шт.

27

182948C2

DEFLECTOR

Discharge, LH

1шт.

28

425-1012

NUT,3/4"-10, G5

1шт.
