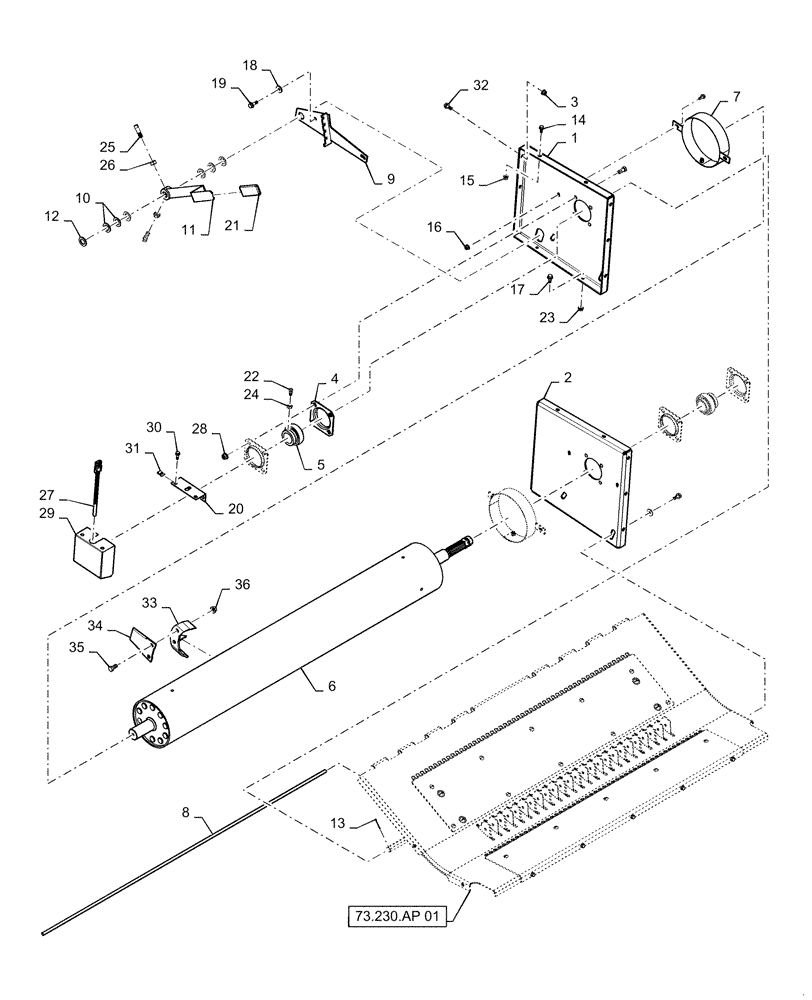

Запчасти Case IH 7140 (73.230.AJ[02]) - STATIONARY BLADE CHOPPER BODY ASSY (73) - RESIDUE HANDLING

1

87649793

SUPPORT ASSY.

LH, Chopper

1шт.

2

87649796

SUPPORT ASSY.

RH, Chopper

1шт.

3

825-51410

FLANGE NUT,M10, Flg Ser

2шт.

4

86979948

FLANGE

Bearing

4шт.

5

47415231

BALL BEARING,45mm ID x 85mm OD x 22mm W

Rotor

2шт.

6

84137786

ROLLER,203.2mm OD x 1849.1mm L

Rotor

1шт.

7

87693310

SUPPORT ASSY.

Chopper Drum Wrap

2шт.

8

182980C1

ROD,11.11mm OD x 1556mm L

Hinge

1шт.

9

87735186

PLATE

Chopper Adjustment Detent

1шт.

10

495-81057

WASHER,23.01mm ID x 38.1mm OD x 3.4mm Thk

6шт.

11

87735079

SHAFT

Chopper Adjustment Control

1шт.

12

495-81056

WASHER,29/32" x 1 1/2" x 3/64

1шт.

13

432-820

COTTER PIN,1/8" x 1 1/4"

1шт.

14

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

16шт.

15

86050279

FLANGE NUT,M10 x 1.5, Cl 10

14шт.

16

87681209

FLANGE NUT,Hex, M12 x 1.75, Cl 10

8шт.

17

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

8шт.

18

496-41041

WASHER,13/32" x 1 1/8" x .134"

4шт.

19

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

2шт.

20

87703786

BRACKET

Chopper Sensor

1шт.

21

402987A1

GRIP

Chopper Adjust

1шт.

22

393598

SET SCREW,M10 x 20mm, Cl 12.9

1шт.

23

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

24

100016

NUT,M10 x 1.5, Cl 8

1шт.

25

485-13116

SET SCREW,Sq Hd, 5/16"-18 x 1", Cup pt

2шт.

26

425-105

NUT,5/16"-18, G5

2шт.

27

87650675

SENSOR

RPM

1шт.

28

87681210

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

29

87473361

COVER ASSY

LH, Chopper Shaft

1шт.

30

87698833

BOLT,M8 x 33.1mm, Cl 10.9

2шт.

31

86625074

SPRING NUT,Multi-Thd, M8 x 1.25

2шт.

32

87698838

FLANGE BOLT,M10 x 35mm, Full Thd, Cl 10.9

2шт.

33

NSS

NOT SOLD SEPARAT

Support, Rotor Blade, Incl In 6

32шт.

34

409731A1

BLADE

Straw Chopper Rotor

32шт.

35

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

64шт.

36

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

64шт.
