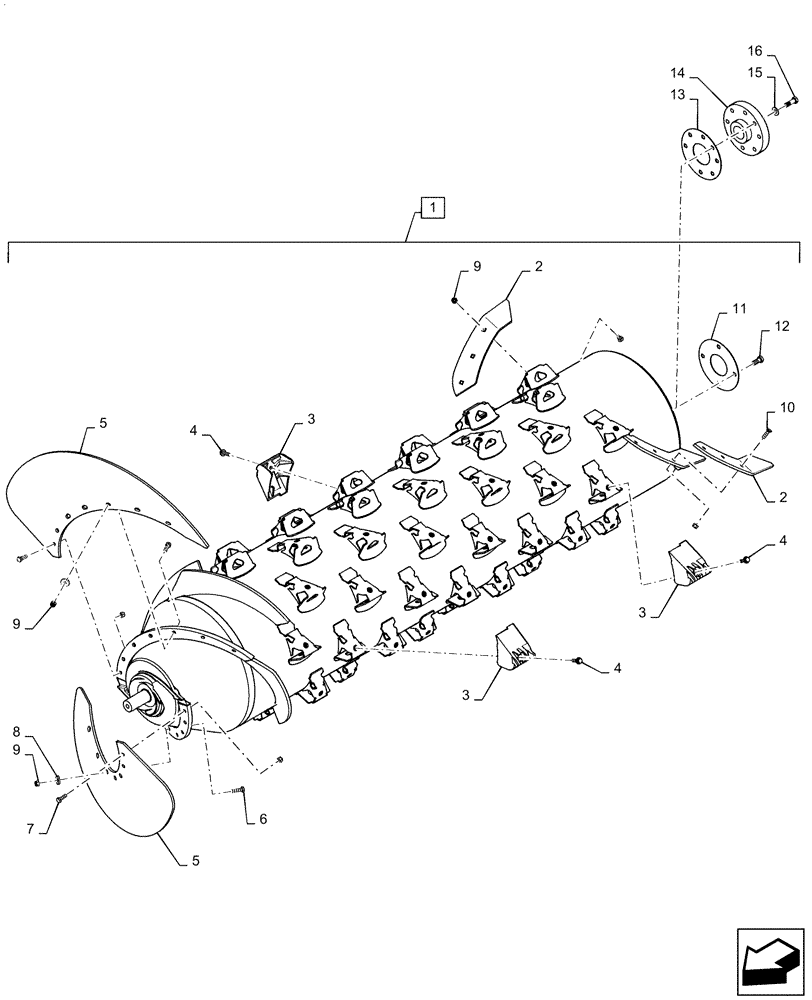

Запчасти Case IH 7140 (66.331.AK[07]) - VAR - 425438 - THRESHING CYLINDER, ROTOR (66) - THRESHING

1

87723448

ROTOR

Small Tube, Rice, Incl 2 - 12

1шт.

2

87544176

STEEL FLIGHT

Rear Kicker

2шт.

3

84317775

RASP BAR

Extended Ear, W/ Spike, 10 Degree

60шт.

4

86981487

BOLT,Flange, M12 x 35mm, Full, Cl 10.9 DOR

60шт.

5

87532511

IMPELLER

Rotor Inlet

2шт.

6

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

10шт.

7

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

4шт.

8

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

10шт.

9

412672

NUT,Hex, M12 x 1.75, Cl 10

20шт.

10

87314103

PLOW BOLT,M12 x 1.75 x 40mm, Cl 10.9

M12 x 40mm, 10.9

6шт.

11

NSS

NOT SOLD SEPARAT

Rear Plate, Incl In 1

1шт.

12

86508583

BOLT,Hex, M16 x 35mm, Cl 8.8, Full Thd

4шт.

13

87619363

PLATE

Rotor Load Ring 8 Bolt

1шт.

14

87619364

COUPLING

HD Rotor Drive 23 Tooth

1шт.

15

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

16шт.

16

87550181

BOLT,Hex, M16 x 95mm, Cl 10.9

Locking, M16 x 95mm, 10.9

8шт.
