Запчасти Case IH 7140 (66.260.AO[01]) - JACKSHAFT DRIVE AND BELT (66) - THRESHING

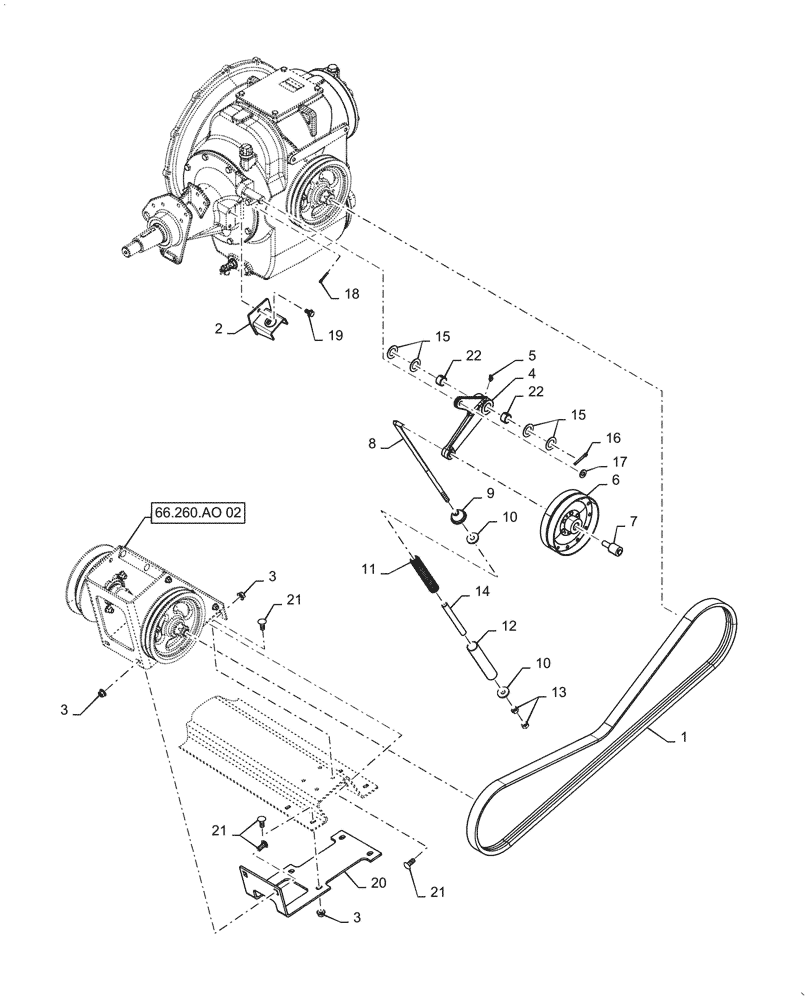

Схема запчастей Case IH 7140 - (66.260.AO[01]) - JACKSHAFT DRIVE AND BELT (66) - THRESHING
66.260.ao 02
19
10
11
20
7
4
3
1
12
9
21
5
3
10
8
3
2
14
22
15
21
17
15
16
18
6
21
22
13

Артикул

Название

Примечание

Количество

1

84548651

BELT

Unload Mid Jackshaft, 2HB

1шт.

2

84255718

SUPPORT

Belt Tensioner

1шт.

3

86512497

FLANGE NUT,M12 x 1.75, Cl 10

12шт.

4

84342822

LEVER

Aux Pump Drive Idler, Incl 22

1шт.

5

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1шт.

6

192865C2

PULLEY

Aux Drive Idler

1шт.

7

274844R91

BEARING ASSY,30mm OD x 73.66mm L

1шт.

8

84233788

ROD

Belt Idler Tension

1шт.

9

86560521

PIVOT,13mm ID x 50mm OD x 25.4mm Thk

Tensioner

1шт.

10

86624148

WASHER,0.53" ID x 1.5" OD x 0.18" Thk

2шт.

11

84375295

TENSION SPRING

Belt Tension

1шт.

12

84375294

SPACER

Outer Jackshaft

1шт.

13

9706685

NUT,M12 x 1.75, Cl 8

2шт.

14

84375293

SPACER

Inner Jackshaft

1шт.

15

86624171

WASHER,1.03" ID x 1.75" OD x 0.06" Thk

4шт.

16

432-1624

COTTER PIN,1/4" x 1 1/2"

1шт.

17

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

1шт.

18

432-1216

COTTER PIN,3/16" x 1"

1шт.

19

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

2шт.

20

84154327

SUPPORT

Lower Jackshaft

1шт.

21

87695426

CARRIAGE BOLT,M12 x 30mm, Cl 0.9

12шт.

22

188068C1

BUSHING,25.4mm ID x 28.57mm OD x 19.05mm L

Incl with 4

2шт.
