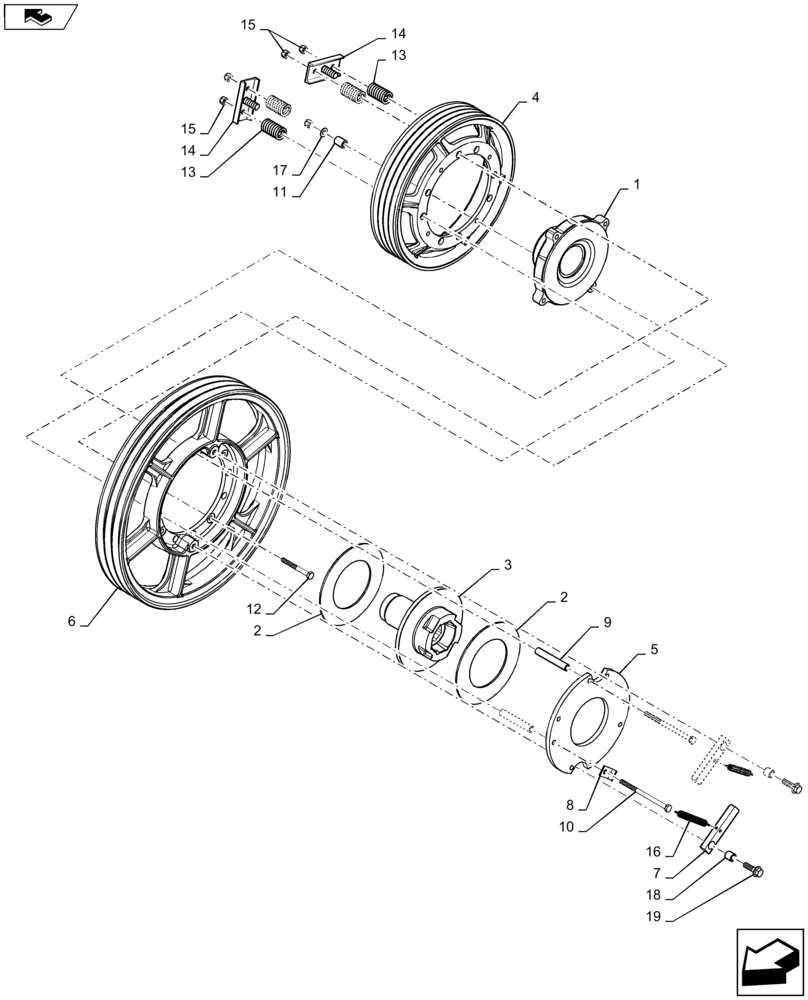

Запчасти Case IH 7140 (60.150.AY[01]) - CLUTCH, FEEDER, ROCK GUARD (60) - PRODUCT FEEDING

1

87543658

HOUSING ASSY.

Friction Clutch, Outer

1шт.

2

84151259

LINING

Friction Disc

2шт.

3

84124122

HUB

Clutch, Feeder Conveyor, Inner

1шт.

4

87665206

PULLEY

Feeder Friction Clutch

1шт.

5

87726043

PLATE ASSY.

Outer, Feeder Reverser Clutch

1шт.

6

87729260

PULLEY,573mm OD

Feeder Clutch Outer

1шт.

7

87730813

BAR

Ratchet, Feeder Reverser Clutch

2шт.

8

86988966

MOUNTING PLATE

Spring Mounting

2шт.

9

87386411

SPACER

Feeder Friction Clutch

8шт.

10

87665088

BOLT

Drive Lug

8шт.

11

87374324

SPACER,11.1mm ID x 19.05mm OD x 25mm L

Slip Clutch Spring Retainer

4шт.

12

86508620

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

Reverser Ratchet

4шт.

13

84146255

SPRING

12шт.

14

1315316C1

SUPPORT

Feeder Clutch

4шт.

15

86512554

NUT,M10 x 1.5, Cl 10

M10 x 155mm, 8.8

12шт.

16

86989592

SPRING

2шт.

17

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

18

87752993

DRIVE BUSHING

2шт.

19

87695413

BOLT,M12 x 51.8mm, Cl 10.9

2шт.
