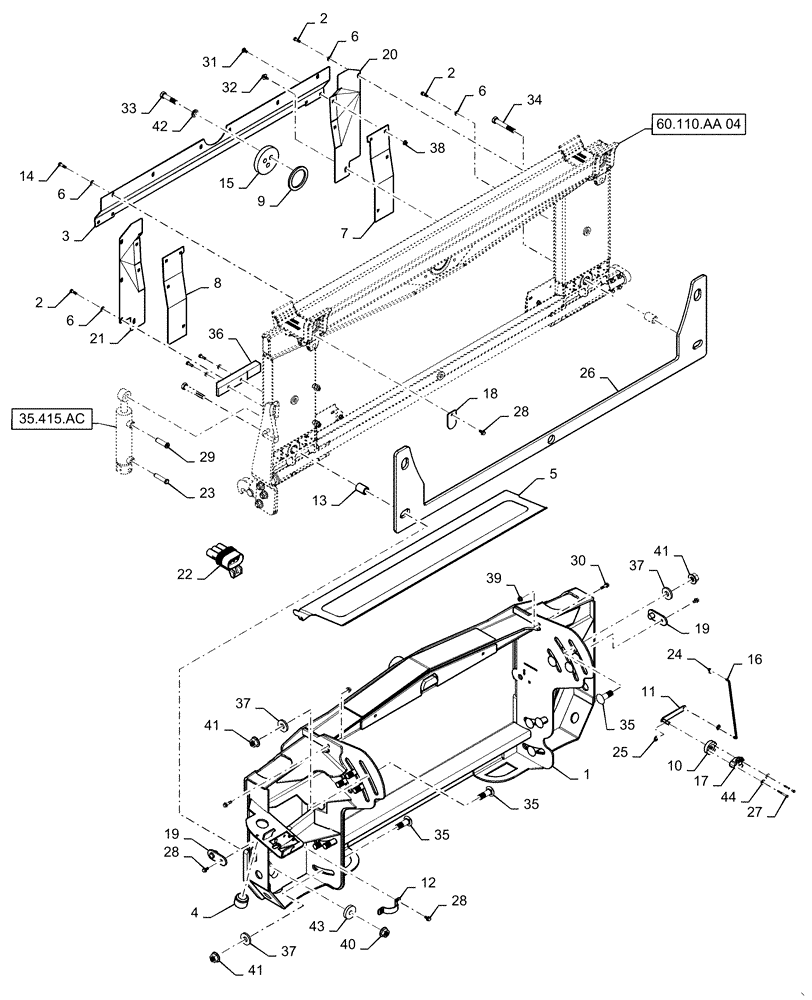

Запчасти Case IH 7140 (60.110.AA[03]) - VAR - 425081, 425082, 425086, 425087 - ADAPTER, FEEDER, ASN YEG012701 (60) - PRODUCT FEEDING

1

47473655

FRAME

Feeder Adjustment, Rear

1шт.

2

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

10шт.

3

87658628

DEFLECTOR

Crop, Upper

1шт.

4

87105683

CAP

Header Harness Protection

1шт.

5

87312135

SHEET ASSY.

Cleanout

1шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

16шт.

7

84158878

DEFLECTOR

Crop, RH

1шт.

8

84158872

DEFLECTOR

Crop, LH

1шт.

9

86995542

THRUST WASHER,77.5mm ID x 101.6mm OD x 7.8mm Thk

Feeder Frame, Center

1шт.

10

87362420

MOUNT

Lateral Tilt Position

1шт.

11

87643243

SHAFT

Position Sensor Linkage

1шт.

12

87107105

U-BRACKET

Retainer

1шт.

13

87107672

SPACER,20.64mm ID x 30.16mm OD x 42mm L

Feeder Face

2шт.

14

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

6шт.

15

87283209

RETAINING PLATE

Center Pivot

1шт.

16

87643245

LINK

Later Tilt Linkage

1шт.

17

87330286

SENSOR

Lateral Tilt Position

1шт.

18

87312141

PLATE

Retaining Tab

1шт.

19

87106719

BRACKET

Adjustment Lock

2шт.

20

87658627

DEFLECTOR

Crop, RH

1шт.

21

87658626

DEFLECTOR

Crop, LH

1шт.

22

87742285

WIRE HARNESS

Feeder Tilt Adapter

1шт.

23

87312143

PIN,14mm OD x 68.5mm L

14mm OD x 64mm L

1шт.

24

9821714

CLIP

Retainer

2шт.

25

86000439

SNAP RING,0.288" ID x 0.66" OD x 0.037" Thk, External

1шт.

26

84392517

WEAR STRIP

Poly

1шт.

27

87384106

BOLT,M4 x 42.92mm, Cl 8.8

2шт.

28

87681207

BOLT,M8 x 24.1mm, Cl 10.9

5шт.

29

47600811

PIN

19mm OD x 64mm L

1шт.

30

87030775

BOLT,M8 x 38.1mm, Cl 10.9

2шт.

31

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

8шт.

32

87673844

SELF-TAP SCREW,M8 x 1.25 x 20mm

2шт.

33

11119231

BOLT,M16 x 75mm, Cl 10.9

3шт.

34

86541970

BOLT,Hex, M16 x 100mm, Cl 10.9

2шт.

35

86981478

CARRIAGE BOLT,M20 x 70.9mm, Cl 10.9

14шт.

36

87693080

PLATE

Stripper

2шт.

37

86592703

WASHER,21mm ID x 50mm OD x 6mm Thk

14шт.

38

86507066

FLANGE NUT,M8 x 1.25, Cl 10

8шт.

39

87681210

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

40

87016581

FLANGE NUT,M16 x 2, CI 10

2шт.

41

86512499

FLANGE NUT,M20 x 2.5, Cl 10

14шт.

42

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

3шт.

43

913347

WASHER,M17 x 56mm OD x 11mm Thk

2шт.

44

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

2шт.
