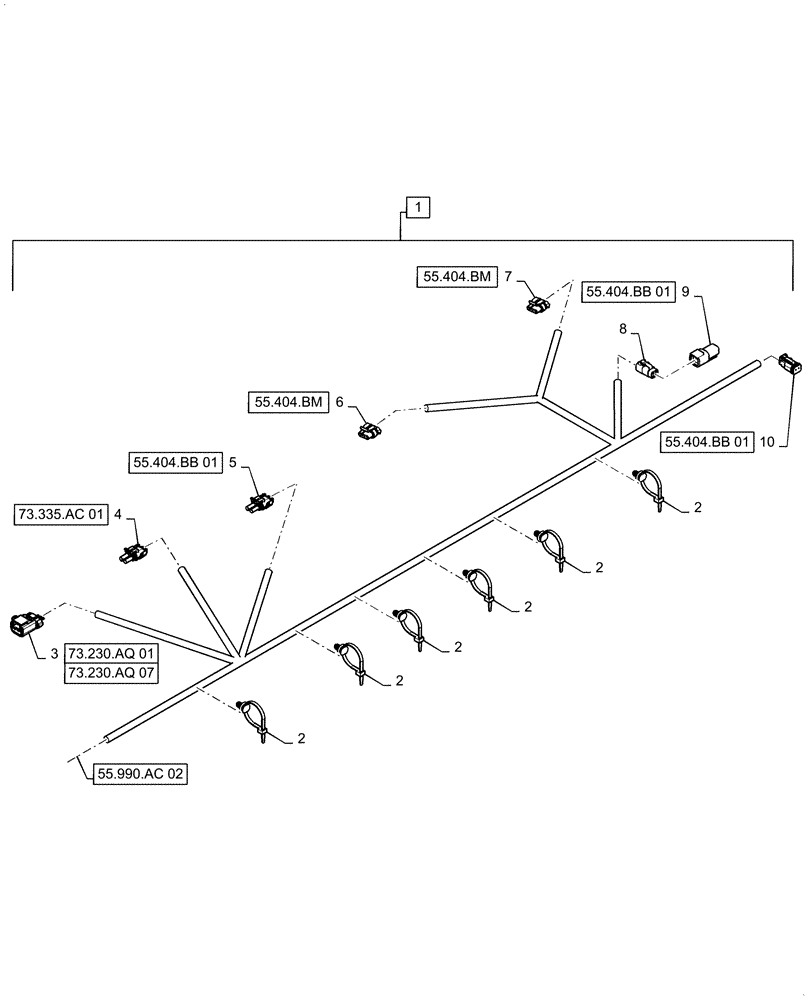

Запчасти Case IH 7140 (55.990.AC[03]) - WIRE HARNESS, STRAW HOOD, CONTINUED (55) - ELECTRICAL SYSTEMS

1

47537155

WIRE HARNESS

Straw Hood, Incl 2 - 10

1шт.

2

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

6шт.

3

87382910

WIRE CONNECTOR,Female, 3 Cavities

Ladder Position Switch, X-247

1шт.

3

84395356

TERMINAL,Female, 2.8mm, 18-20

Ladder Position Switch, X-247

3шт.

4

87692855

CONTACT HOUSING,Male, 2 Cavities

Straw Spreader Speed, X-241

1шт.

4

87692856

CABLE TERMINAL

Straw Spreader Speed, X-241

2шт.

5

87692855

CONTACT HOUSING,Male, 2 Cavities

Rear Deck and Engine Lights, X-218

1шт.

5

87692876

CABLE TERMINAL,Female, Tin, 1 - 2mm

Rear Deck and Engine Lights, X-218

2шт.

6

87688716

ELEC CONNECTOR,Female, 3 Cavities

RR NAR Brake and Tail Light, X-280R

1шт.

6

87693732

LOCKING TAB,Wedge Lock

Lock, RR NAR Brake and Tail Light, X-280R

1шт.

6

87688852

ELEC. TERMINAL PIN

RR NAR Brake and Tail Light, X-280R

2шт.

7

87688716

ELEC CONNECTOR,Female, 3 Cavities

RR NAR Turn/Flashing Light, X-281R

1шт.

7

87693732

LOCKING TAB,Wedge Lock

Lock, RR NAR Turn/Flashing Light, X-281R

1шт.

7

87688852

ELEC. TERMINAL PIN

RR NAR Turn/Flashing Light, X-281R

2шт.

8

87696138

ELEC CONNECTOR

RR Euro Warning Lights, X-188

1шт.

8

87696149

ELEC CONNECTOR

Lock, RR Euro Warning Lights, X-188

1шт.

8

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

RR Euro Warning Lights, X-188

4шт.

9

87700105

ELEC CONNECTOR

Dust Cap, X-188A

1шт.

9

84807680

PLUG

Dust Cap, X-188A

4шт.

10

87695909

ELEC CONNECTOR,Female, 2 Pole

RH Rear Field Light, X-190

1шт.

10

84074638

LOCKING TAB,Locking Wedge, Green

RH Rear Field Light, X-190

1шт.

10

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

RH Rear Field Light, X-190

2шт.
