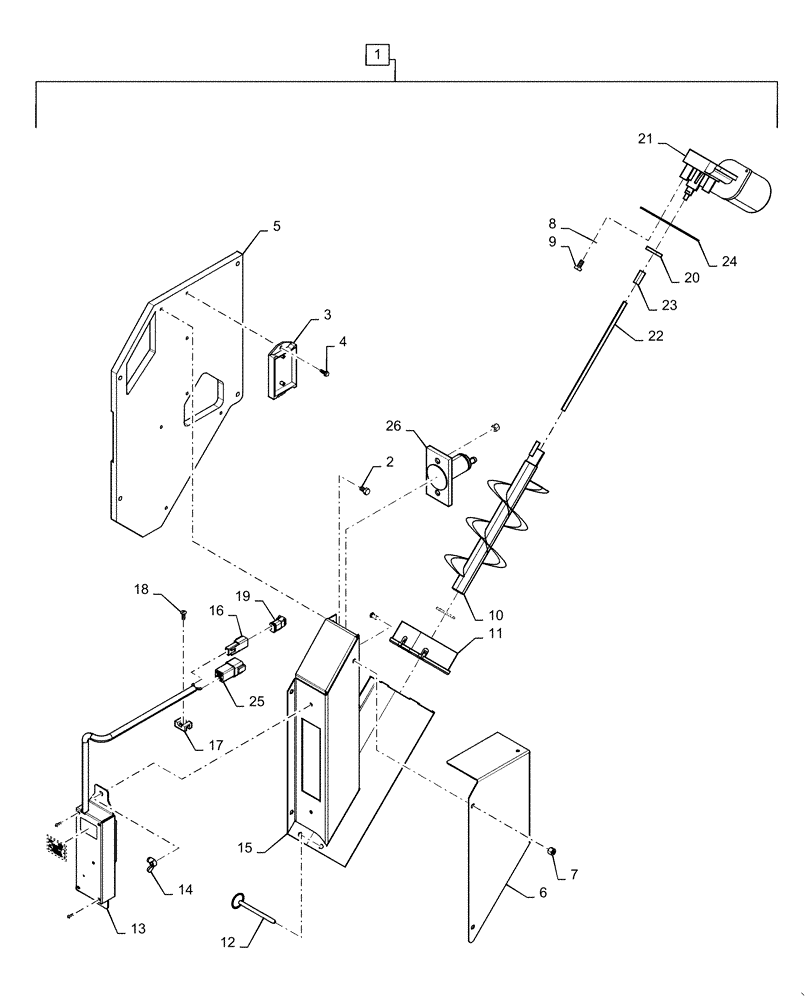

Запчасти Case IH 7140 (55.785.AS[02]) - MOISTURE SENSOR (55) - ELECTRICAL SYSTEMS

1

84295601

SENSOR

Moisture Bypass, Incl 2 - 26

1шт.

2

86625162

SELF-TAP SCREW,HWH, 1/4" - 14 x 1/2"

1/4" - 14 x 1/2"

5шт.

3

84435831

PRINTED CIRCUIT BOAR

Moisture Sensor

1шт.

4

280-2448

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

2шт.

5

363860A1

SUPPORT

Spacer, 1/2"

1шт.

6

84235762

COVER

Moisture Bypass

1шт.

7

393392

LOCK NUT,Prev Torque, M6 x 1, Cl 8

4шт.

8

493-41026

LOCK WASHER,Ext Tooth, 1/4"

3шт.

9

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

3шт.

10

364194A1

AUGER

Metering

1шт.

11

84435830

BLOCK

Retaining

1шт.

12

84435829

PIN,6.35mm OD x 114.3mm L

Detent

2шт.

13

84231452

MOISTURE METER

1шт.

14

84814892

WING NUT,M6 x 1.0

2шт.

15

84235763

HOUSING

Moisture Bypass

1шт.

16

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

3шт.

17

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Cable Tie

1шт.

18

445394

RIVET,Pop, 3/16" x 1/2" OAL

1шт.

19

245484C1

ELEC CONNECTOR,3 Pin

1шт.

20

364845A1

GUIDE

Drive, Metering Auger

1шт.

21

364837A1

MOTOR, ELECTRIC

Auger Drive

1шт.

21

364837A1R

REMAN-ELECTRIC MOTOR

Auger Drive

1шт.

21

364837A1C

CORE-ELECTRIC MOTOR

Return Number

1шт.

22

364843A1

MOUNTING ROD

Threaded, 1/4" x 9"

1шт.

23

368947A1

COUPLING,1/4" - 20

Spacer, 1/4" -20 x .875"

1шт.

24

87418312

SEAL

Purple

3шт.

25

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

2шт.

26

84435833

SWITCH ASSY

Proximity

1шт.
