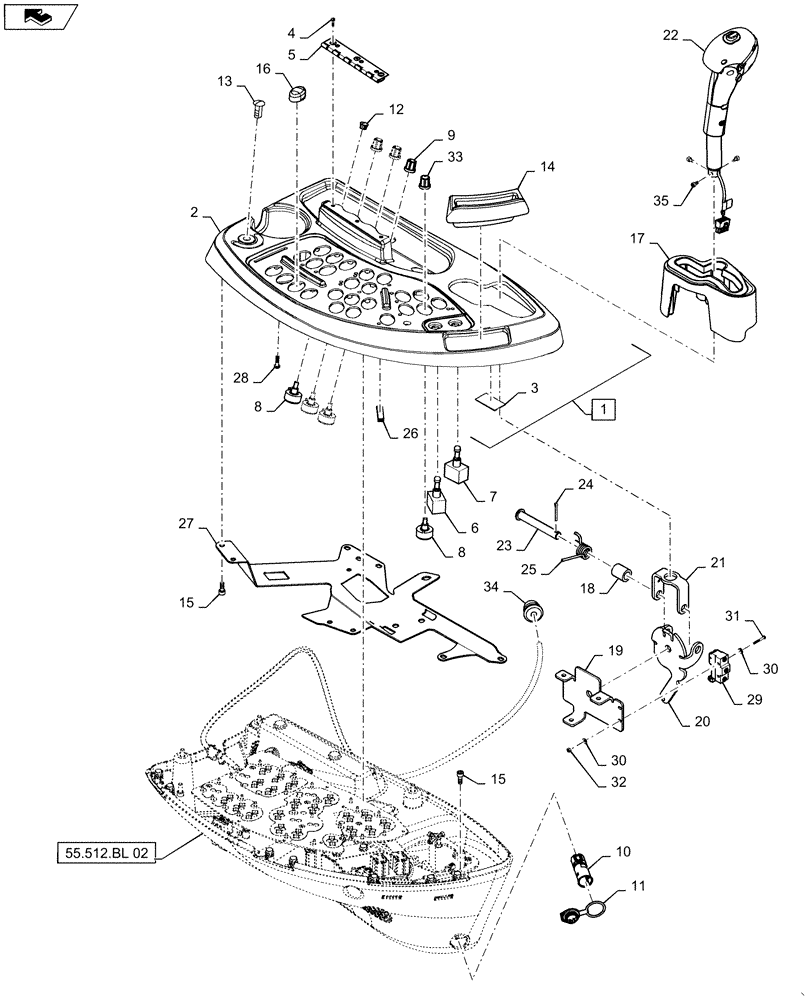

Запчасти Case IH 7140 (55.512.BL[01]) - CONTROL PANEL, CONTROL LEVER, RH (55) - ELECTRICAL SYSTEMS

1

47432029

SHELL

Upper Right Hande Console, Incl 2 - 3

1шт.

2

47409205

SHELL

Upper Console

1шт.

3

84592867

FOAM INSULATION

Sound Damper

1шт.

4

86599775

SCREW,M3 x 0.5 x 14.4mm OAL, Cl 4.8

7шт.

5

84525530

HINGE

Arrmrest Pad

1шт.

6

245634C3

SWITCH

Feeder/Header Engagement

1шт.

7

245632C2

SWITCH

Separator Engagement

1шт.

8

114551A1

POTENTIOMETER,2500 Ohm, 500V

Reel Speed, Header Raise Rate, Header Lower Rate, Accumulator Pressure

4шт.

9

118780A1

KNOB

Black

3шт.

10

388812A1

OUTLET

10A

1шт.

11

84556691

COVER

Outlet

1шт.

12

282056A1

PLUG

Black Dome

1шт.

13

87570112

PLUG

Fir Tree

1шт.

14

47404253

PROTECTIVE SLEEVE

Holder

1шт.

15

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

14шт.

16

84405101

BUTTON

Button Cover/ Blank

6шт.

17

47409202

BEZEL

Multi Function Handle Cover

1шт.

18

224368A1

SPACER,0.546" ID x 0.840" OD x 0.984" OAL

Handle Linkage

1шт.

19

84396784

BRACKET

Inner Handle Mount

1шт.

20

84547423

BRACKET

Lower Handle Mount

1шт.

21

84547431

BRACKET

Upper Handle Mount

1шт.

22

84574524

CONTROL LEVER

Multi Function Handle

1шт.

23

27-8343

CLEVIS PIN,12.7mm OD x 87.33mm L

1шт.

24

432-816

COTTER PIN,1/8" x 1"

1шт.

25

128593A1

SPRING

Handle Return

1шт.

26

84544528

TRIM

Edging

1шт.

27

47391901

BRACKET

Upper Bezel Support

1шт.

28

117067A1

SELF-TAP SCREW,Pan Hd, #10-24 x 3/4"

1шт.

29

141655A1

SWITCH

Neutral Safety

1шт.

30

9824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

4шт.

31

463-10416

SCREW,Hex Hd, #4-40 x 1"

2шт.

32

225-14104

NUT,#4-40

2шт.

33

84514485

KNOB

Black Matte

1шт.

34

195803C1

GROMMET

Propulsion Cable

1шт.

35

14418924

SCREW,M4 x 8mm, Cl 8.8, Full Thd

3шт.
