Запчасти Case IH 7140 (55.510.AH[03]) - WIRE HARNESS, UPPER ROOF, CONTINUED (55) - ELECTRICAL SYSTEMS

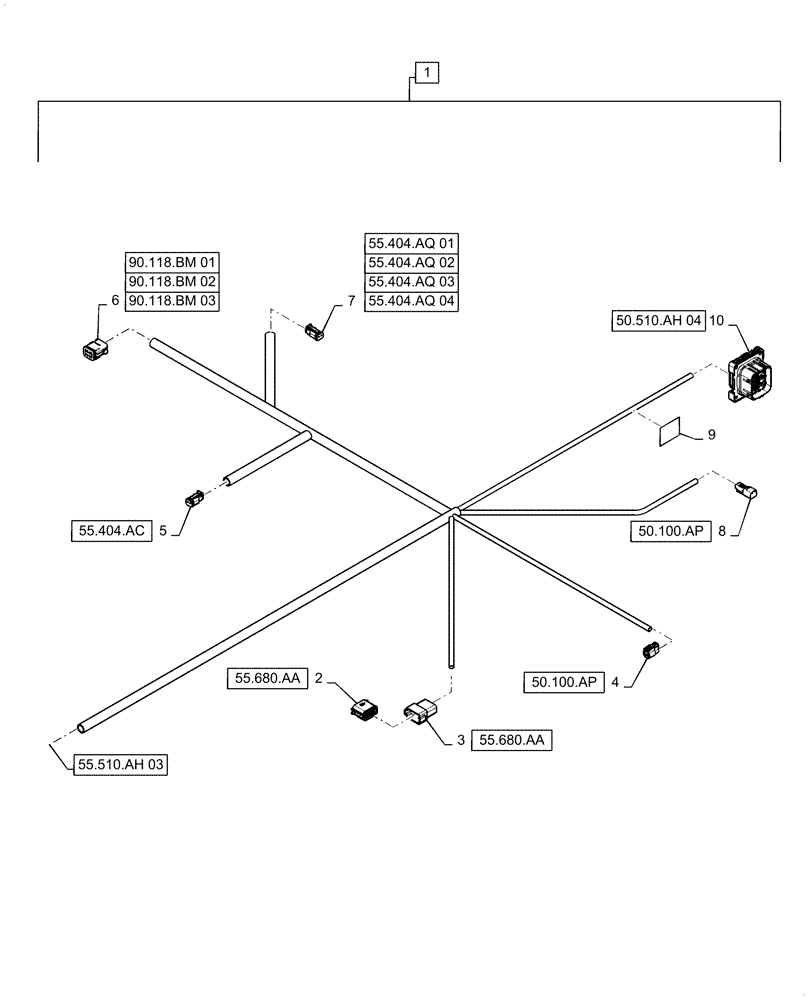

Схема запчастей Case IH 7140 - (55.510.AH[03]) - WIRE HARNESS, UPPER ROOF, CONTINUED (55) - ELECTRICAL SYSTEMS
55.404.aq 03
4
8
5
10
1
2
6
7
9
3
55.510.ah 03
50.510.ah 04
90.118.bm 01
55.404.aq 01
50.100.ap
50.100.ap
55.404.ac
55.404.aq 02
55.680.aa
55.680.aa
90.118.bm 02
55.404.aq 04
90.118.bm 03

Артикул

Название

Примечание

Количество

1

47705803

WIRE HARNESS

Upper Roof, Incl 2 - 10

1шт.

2

84281913

MODULE

Dust Cap, X-469A

1шт.

2

87695651

LOCKING TAB,Wedge Lock

Dust Cap, X-469A

1шт.

2

84068583

PLUG,12 - 16 Ga, White

Dust Cap, X-469A

7шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Dust Cap, X-469A

5шт.

3

84278761

ELEC CONNECTOR

Edge Guidance, X-469

1шт.

3

87698541

LOCKING TAB,Wedge Lock, 12-Pin

Lock, Edge Guidance, X-469

1шт.

3

87695623

ELEC. TERMINAL PIN

Edge Guidance, X-469

12шт.

4

87693320

ELEC CONNECTOR

A/C Low Pressure Switch, X-217

1шт.

4

84199545

TERMINAL

A/C Low Pressure Switch, X-217

2шт.

5

87695909

ELEC CONNECTOR,Female, 2 Pole

RH Beacon Light, X-119

1шт.

5

84074638

LOCKING TAB,Locking Wedge, Green

RH Beacon Light, X-119

1шт.

5

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

RH Beacon Light, X-119

2шт.

6

87708152

ELEC CONNECTOR

RH Side Mirror/Worklight, X-121

1шт.

6

84068583

PLUG,12 - 16 Ga, White

RH Side Mirror/Worklight, X-121

1шт.

6

84806312

LOCKING TAB,Wedge Lock

Lock, RH Side Mirror/Worklight, X-121

1шт.

6

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

RH Side Mirror/Worklight, X-121

2шт.

6

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

RH Side Mirror/Worklight, X-121

5шт.

7

87695909

ELEC CONNECTOR,Female, 2 Pole

RH Distance Lights, X-144

1шт.

7

84074638

LOCKING TAB,Locking Wedge, Green

RH Distance Lights, X-144

1шт.

7

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

RH Distance Lights, X-144

2шт.

8

87696073

PLUG

Freeze Sensor, X-150

1шт.

8

86500166

ELEC CONNECTOR

Lock, Freeze Sensor, X-150

1шт.

8

87695623

ELEC. TERMINAL PIN

Freeze Sensor, X-150

2шт.

9

84123434

TAPE

Reflective, White

1шт.

10

84536444

ELEC CONNECTOR

Cab Roof Lower Harness, X-036

1шт.

10

84807680

PLUG

Cab Roof Lower Harness, X-036

15шт.

10

87704524

ELEC CONNECTOR,Pin, Size 12

Cab Roof Lower Harness, X-036

5шт.

10

87696141

TERMINAL

Cab Roof Lower Harness, X-036

23шт.

10

87695623

ELEC. TERMINAL PIN

Cab Roof Lower Harness, X-036

4шт.

10

84520479

Terminal, Cab Roof Lower Harness, X-036

ELEC. TERMINAL PIN

1шт.

10

87694144

TERMINAL CONNECTOR,Male, 0.75 - 2 mm2

Cab Roof Lower Harness, X-036

4шт.

Выбрано товаров: 32
