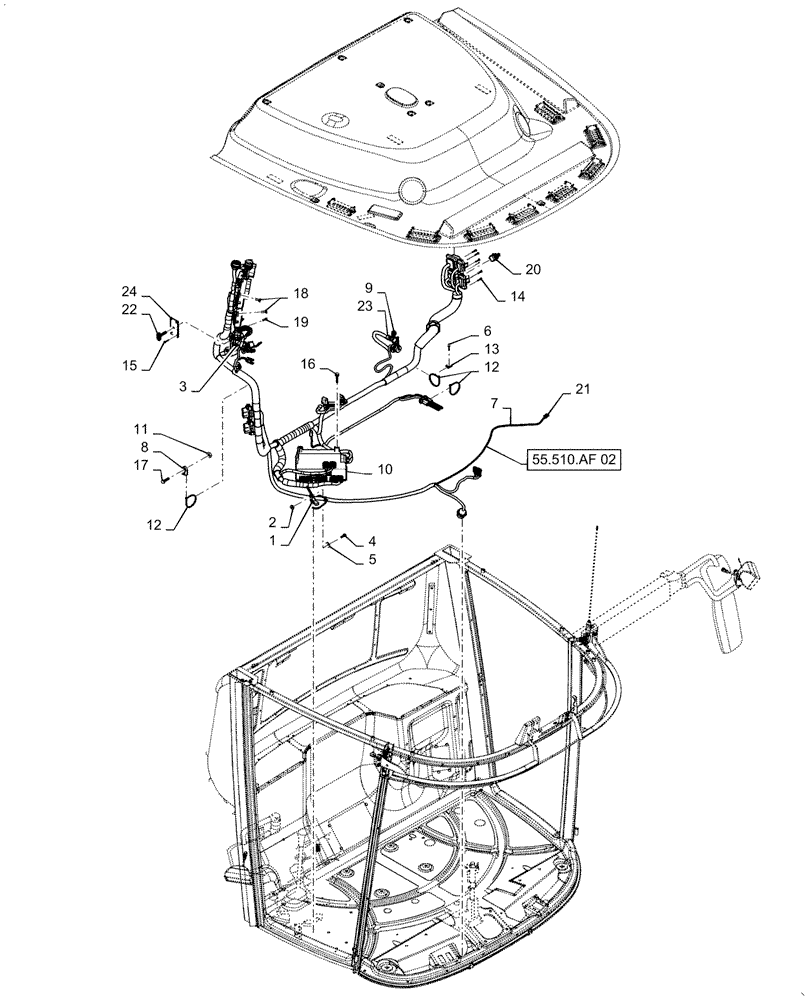

Запчасти Case IH 7140 (55.510.AF[01]) - HARNESS, CAB (55) - ELECTRICAL SYSTEMS

1

60-6515T1

SWITCH

Micro, 3rd Gear Lockout

1шт.

2

225-14104

NUT,#4-40

2шт.

3

425-106

NUT,3/8"-16, Cl 5

2шт.

4

463-10416

SCREW,Hex Hd, #4-40 x 1"

1шт.

5

495-31012

WASHER,#4

2шт.

6

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

6шт.

7

47428822

WIRE HARNESS

Cab Main

1шт.

8

84340333

BASE PLATE

Wire Tie

2шт.

9

84556691

COVER

DC Outlet Dust Cover

1шт.

10

84589142

MODULE

ECU/ UCM 12V

1шт.

11

86050300

FLANGE NUT,M6 x 1.0, Cl 10

6шт.

12

86566990

CABLE TIE,292mm OAL x 4.8mm W

10шт.

13

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

6шт.

14

86625213

HEX SOC SCREW,M5 x 12mm, Cl 8.8

24шт.

15

117067A1

SELF-TAP SCREW,Pan Hd, #10-24 x 3/4"

4шт.

16

87670758

FLANGE BOLT,M6 x 31.6mm, Cl 10.9

4шт.

17

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

2шт.

18

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

12шт.

19

87698833

BOLT,M8 x 33.1mm, Cl 10.9

1шт.

20

190158A1

BLOCK

Junction

1шт.

21

1983341C1

SWITCH

Differential Lock/ Brake

1шт.

22

303717A1

JUNCTION BLOCK

2шт.

23

388812A1

OUTLET

10A, 12V DC

1шт.

24

83822C1

TAPE

Rubber Insulating

3шт.
