(55.404.CU[02]) - WIRE HARNESS, UNLOADING TUBE WORK LIGHT

Запчасти Case IH 7140 (55.404.CU[02]) - WIRE HARNESS, UNLOADING TUBE WORK LIGHT (55) - ELECTRICAL SYSTEMS

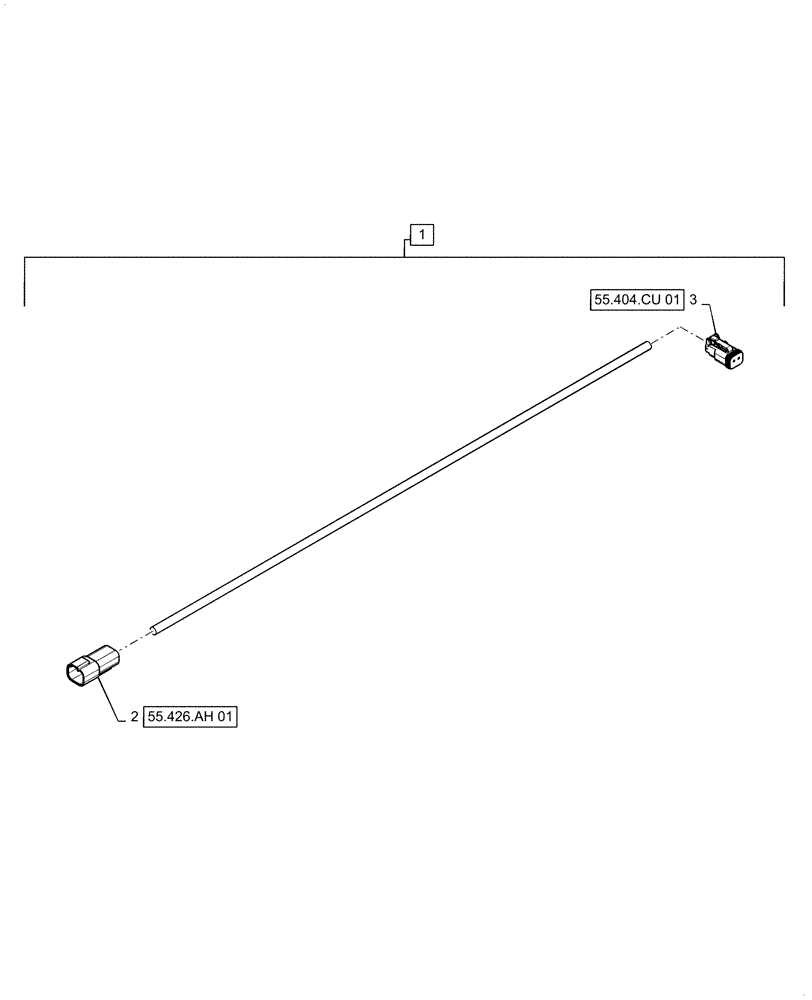

Схема запчастей Case IH 7140 - (55.404.CU[02]) - WIRE HARNESS, UNLOADING TUBE WORK LIGHT (55) - ELECTRICAL SYSTEMS
55.404.cu 01
3
2
1
55.426.ah 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84371206

WIRE HARNESS

Unload Tube Work Light, Incl 2 - 3

1шт.

2

87695914

CONNECTION,ELECTRIC

to Tube Marker Harness, X-288C

1шт.

2

87694145

ELEC CONNECTOR

Lock, to Tube Marker Harness, X-288C

1шт.

2

84068583

PLUG,12 - 16 Ga, White

to Tube Marker Harness, X-288C

2шт.

3

87695909

ELEC CONNECTOR,Female, 2 Pole

to Work Light, X-322

1шт.

3

84074638

LOCKING TAB,Locking Wedge, Green

to Work Light, X-322

1шт.
