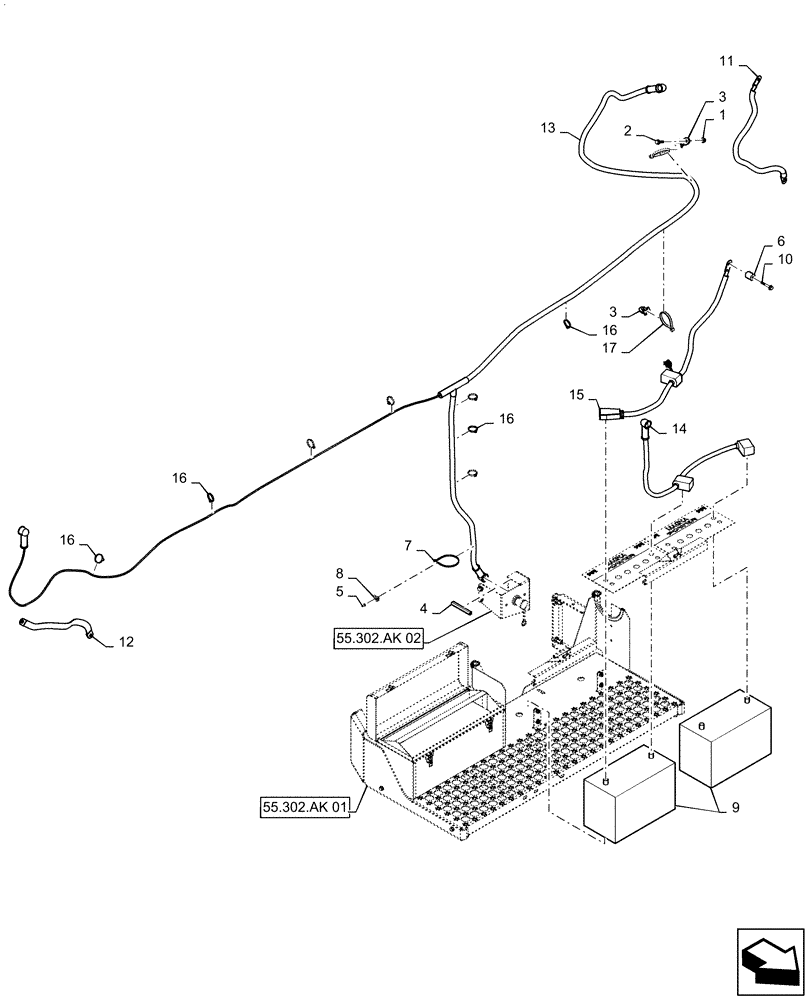

Запчасти Case IH 7140 (55.302.AX[01]) - BATTERY - TRAY & CABLES, NA (55) - ELECTRICAL SYSTEMS

1

86507066

FLANGE NUT,M8 x 1.25, Cl 10

1шт.

2

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

1шт.

3

84474186

BASE

Tie Strap

2шт.

4

291186

PROTECTION STRIP,9.9mm W

Edge Channel

1шт.

5

445394

RIVET,Pop, 3/16" x 1/2" OAL

1шт.

6

84128110

SPACER

Jumpstart Ground

1шт.

7

86566990

CABLE TIE,292mm OAL x 4.8mm W

1шт.

8

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

1шт.

9

BMF31GW

WET BATTERY

950 CCA, US Only

2шт.

9

CCMF31GW

WET BATTERY

950 CCA, Canada Only

2шт.

10

87698763

FLANGE BOLT,Hex, M8 x 50mm, Cl 0.9

1шт.

11

84533617

GROUND CABLE

PTO Housing

1шт.

12

84422959

STRAP

Strap, Cab Ground

1шт.

13

87726637

CABLE

Battery, Positive

1шт.

14

87726635

CABLE

Battery, Positive

1шт.

15

87398398

NEG BATTERY CABLE

Ground

1шт.

16

291207C1

CLAMP

Cable Strap

8шт.

17

529070

CABLE TIE,368.3mm L

2шт.
