(55.101.AC[09]) - VAR - 425467, 425472 - WIRE HARNESS, GRAIN BIN EXTENSION

Запчасти Case IH 7140 (55.101.AC[09]) - VAR - 425467, 425472 - WIRE HARNESS, GRAIN BIN EXTENSION (55) - ELECTRICAL SYSTEMS

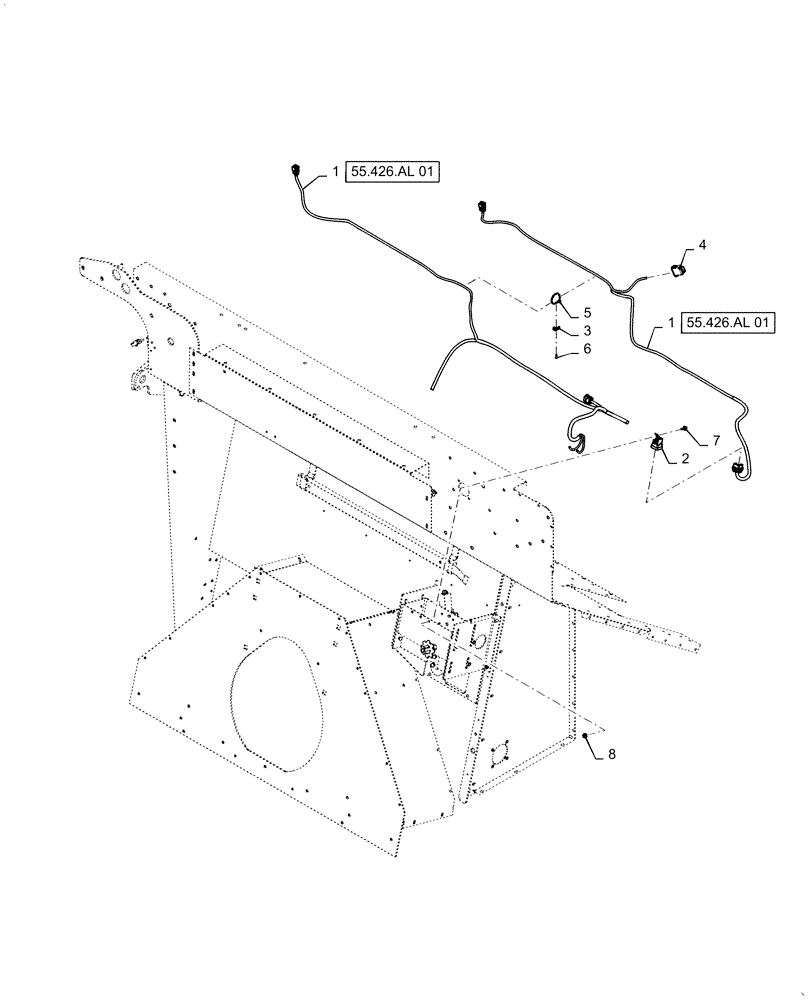

Схема запчастей Case IH 7140 - (55.101.AC[09]) - VAR - 425467, 425472 - WIRE HARNESS, GRAIN BIN EXTENSION (55) - ELECTRICAL SYSTEMS
55.426.al 01
1
1
5
3
7
2
8
4
6
55.426.al 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84373207

WIRE HARNESS

Grain Tank Covers

1шт.

2

86508603

RELAY,12V

Sealed Skirt

1шт.

3

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

4шт.

4

84370691

SWITCH ASSY

Rocker, Cover Actuation

1шт.

5

86566989

CABLE TIE,208mm L

10шт.

6

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

4шт.

7

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

1шт.

8

523282

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

Выбрано товаров: 8
