Запчасти Case IH 7140 (55.101.AC[05]) - WIRE HARNESS, FRAME, FRONT AXLE, BRAKE VALVE (55) - ELECTRICAL SYSTEMS

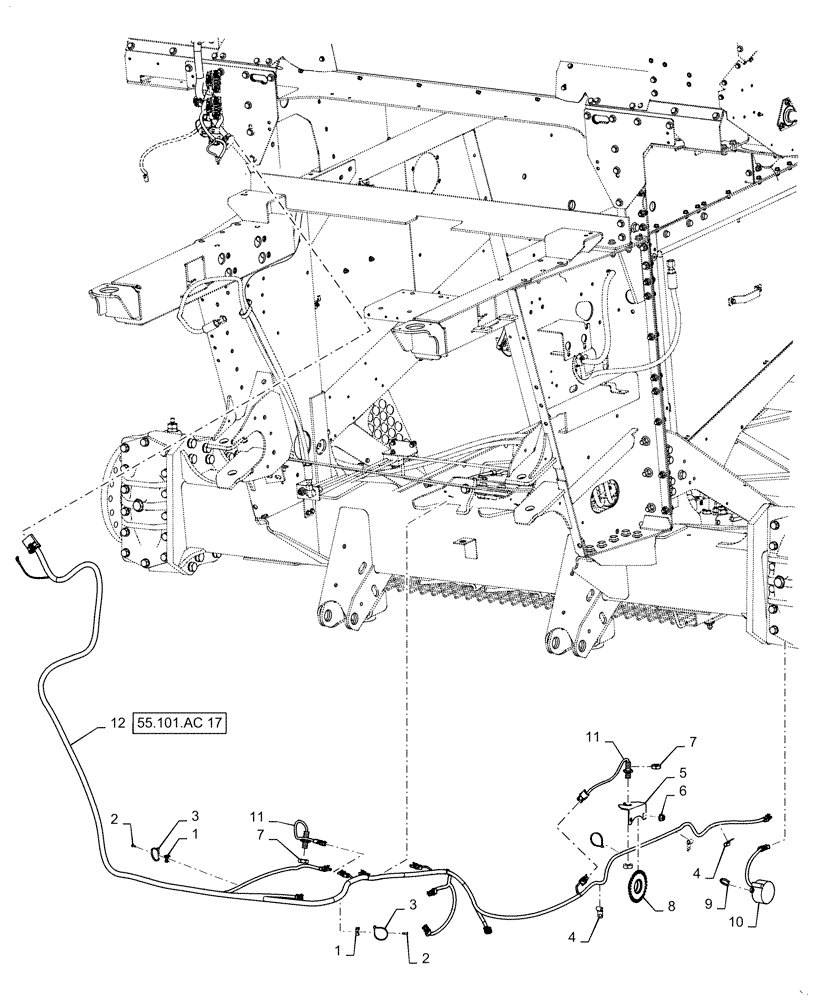

Схема запчастей Case IH 7140 - (55.101.AC[05]) - WIRE HARNESS, FRAME, FRONT AXLE, BRAKE VALVE (55) - ELECTRICAL SYSTEMS
55.101.ac 17
2
4
11
11
12
5
2
3
10
4
7
3
8
1
9
1
7
6

Артикул

Название

Примечание

Количество

1

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

2шт.

2

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

2шт.

3

86566989

CABLE TIE,208mm L

3шт.

4

87016871

CLAMP,9.5mm, Coat, 10.3mm Bolt Hole, J Type

3шт.

5

1541554C1

SUPPORT

Fan Speed Sensor

1шт.

6

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

7

425-1512

JAM NUT,Jam, 3/4"-10, G5

3шт.

8

1541555C1

SPROCKET

Fan Speed Rotor

1шт.

9

473321C1

CABLE TIE,8" OAL x 0.098" W

1шт.

10

47617588

SENSOR

Clean Grain Auger Speed

1шт.

11

245193C2

SENSOR

Cleaning Fan Speed

1шт.

11

245193C2

SENSOR

Ground Speed

1шт.

12

47403813

WIRE HARNESS

Front, Lower, Transmission/ Brake

1шт.

Выбрано товаров: 13
