Запчасти Case IH 7140 (55.101.AC[02]) - WIRE HARNESS, FRAME, RH (55) - ELECTRICAL SYSTEMS

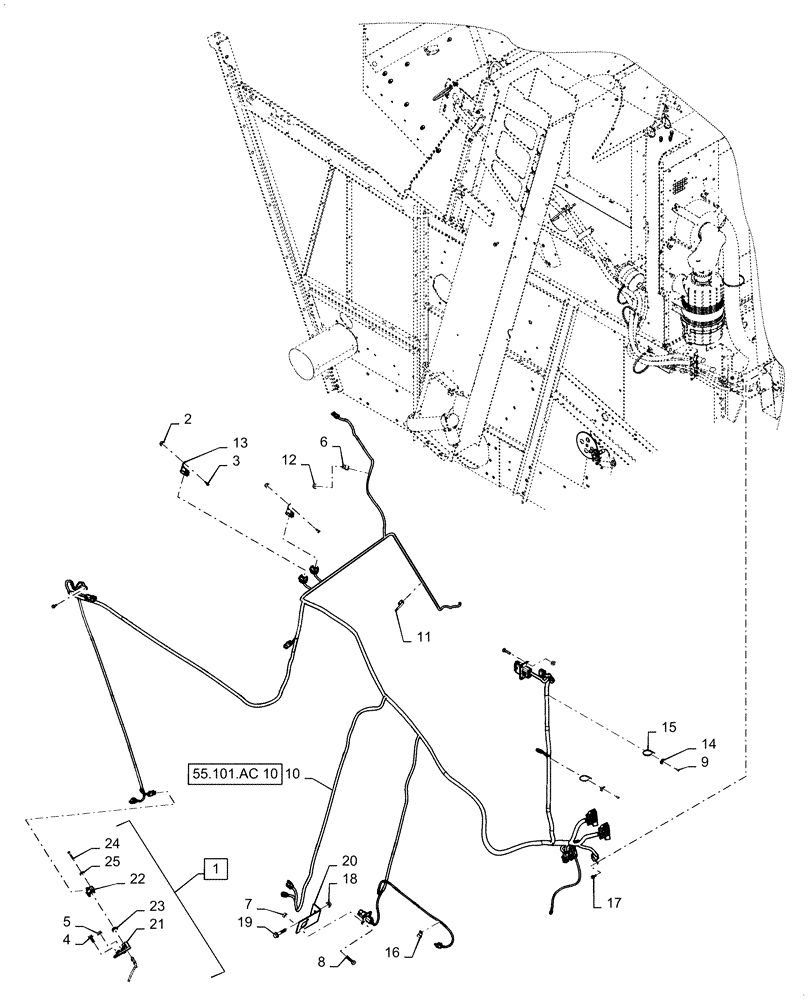

Схема запчастей Case IH 7140 - (55.101.AC[02]) - WIRE HARNESS, FRAME, RH (55) - ELECTRICAL SYSTEMS
55.101.ac 10
12
11
20
5
4
17
25
21
24
3
1
10
19
2
22
15
7
14
6
18
13
23
16
8
9

Артикул

Название

Примечание

Количество

1

87368474

SENSOR

Tailings Speed, Incl 21 - 25

1шт.

2

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

3

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

2шт.

4

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

1шт.

5

425-285

FLANGE NUT,Flg, 5/16"-18, G5

1шт.

6

858956

CLAMP,11.1mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

7

100012

NUT,M4 x 0.7, Cl 8

6шт.

8

412064

BOLT,Hex, M4 x 16mm, Cl 8.8, Full Thd

6шт.

9

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

25шт.

10

47548181

WIRE HARNESS

Chassis, RH

1шт.

11

362666R1

CLIP

Harness Retainer

2шт.

12

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

13

86508603

RELAY,12V

Sealed Skirt, 12V

2шт.

14

86566989

CABLE TIE,208mm L

42шт.

15

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

25шт.

16

87016871

CLAMP,9.5mm, Coat, 10.3mm Bolt Hole, J Type

1шт.

17

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

2шт.

18

87694057

CABLE TIE,200mm L

Edge W/ Cable Tie

1шт.

19

87698834

BOLT,M8 x 48.1mm, Cl 10.9

Flange, M8 x 40mm, 10.9

1шт.

20

87752142

BRACKET

Connector Mounting

1шт.

21

225762A6

HOUSING

Tailings Speed

1шт.

22

87368468

SENSOR

Rotary Position, Tailings Speed

1шт.

23

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

24

463-11024

SCREW,Hex Hd, #10-24 x 1 1/2"

2шт.

25

239809A1

WASHER,8mm ID x 14mm OD x 1.2mm Thk

14mm OD x 8mm ID x 1.2mm

1шт.

Выбрано товаров: 25
