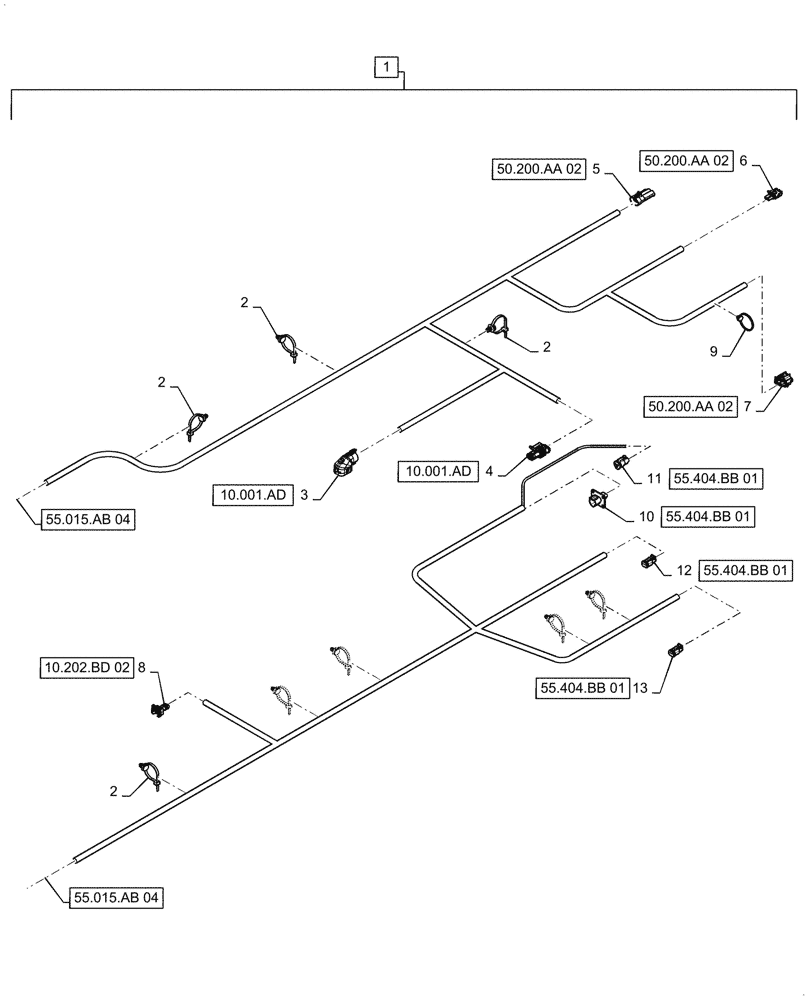

Запчасти Case IH 7140 (55.015.AB[05]) - WIRE HARNESS, ENGINE, SN YEG012001 THRU YEG012595, CONTINUED (55) - ELECTRICAL SYSTEMS

1

47537150

WIRE HARNESS

Engine, Incl 2 - 13, Serial Range: YEG012001-YEG012116

1шт.

Has a Shunt Wire in R1 Position of Relay Block

1шт.

1

47679308

WIRE HARNESS

Engine, Incl 2 - 13, Serial Range: YEG012117-YEG012595

1шт.

Has Shunt Wire Removed and R1 Position of Relay Block is Open

1шт.

2

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

8шт.

3

84152563

ELEC CONNECTOR

FPT Interface Connector C, X-647

1шт.

3

47470364

COVER

Backshell, FPT Interface Connector C, X-647

1шт.

3

84152586

TERMINAL,Tin, 1.50 - 2.50mm

FPT Interface Connector C, X-647

2шт.

3

84129571

PLUG

FPT Interface Connector C, X-647

3шт.

4

87687241

CONTACT HOUSING,Female, 2 Pole

Grid Heater Relay, X-360

1шт.

4

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Grid Heater Relay, X-360

2шт.

5

87688788

MULTIPOLE CONNECTOR,Male, 2 Pole

A/C High Pressure Switch, X-311

1шт.

5

87688862

LOCKING TAB

A/C High Pressure Switch, X-311

1шт.

5

87688814

TERMINAL

A/C High Pressure Switch, X-311

2шт.

6

87692855

CONTACT HOUSING,Male, 2 Cavities

A/C Compressor Clutch, X-310C

1шт.

6

87692876

CABLE TERMINAL,Female, Tin, 1 - 2mm

A/C Compressor Clutch, X-310C

2шт.

7

87709809

ELEC CONNECTOR

Inlet Air Temp and Humidity Sensor, X607

1шт.

7

87705973

TERMINAL

Inlet Air Temp and Humidity Sensor, X607

4шт.

8

84607243

ELEC CONNECTOR,Female, 2 Cavities

Air Filter Clogging Switch, X-309

1шт.

8

87702681

TERMINAL

Air Filter Clogging Switch, X-309

2шт.

9

84332778

STRAP,148mm L x 16mm W

1шт.

10

84146319

3 WAY CONNECTION

Service Light Connector, X-194

1шт.

10

87695625

WIRE CONNECTOR,Locking, Green

Service Light Connector, X-194

1шт.

10

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

Service Light Connector, X-194

3шт.

11

87695580

ELEC CONNECTOR,Female, 3 Pole

Dust Cap, X-194A

1шт.

11

84074639

LOCKING TAB,Wedge Lock

Lock, Dust Cap, X-194A

1шт.

11

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Dust Cap, X-194A

1шт.

12

87695909

ELEC CONNECTOR,Female, 2 Pole

Beacon Light, X-312

1шт.

12

84074638

LOCKING TAB,Locking Wedge, Green

Beacon Light, X-312

1шт.

12

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Beacon Light, X-312

2шт.

13

87695909

ELEC CONNECTOR,Female, 2 Pole

Engine and Deck Light, X-197

1шт.

13

84074638

LOCKING TAB,Locking Wedge, Green

Engine and Deck Light, X-197

1шт.

13

84391159

WIRE CONNECTOR

Engine and Deck Light, X-197

1шт.

13

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Engine and Deck Light, X-197

2шт.
