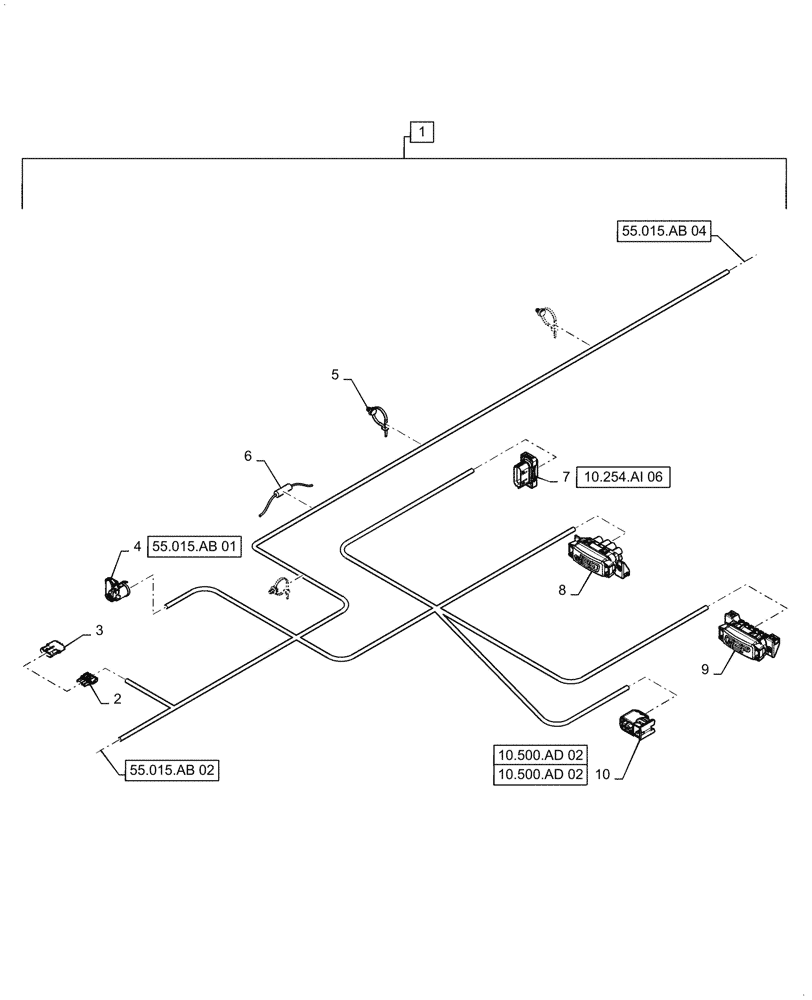

Запчасти Case IH 7140 (55.015.AB[03]) - WIRE HARNESS, ENGINE, SN YEG012001 THRU YEG012595, CONTINUED (55) - ELECTRICAL SYSTEMS

1

47537150

WIRE HARNESS

Engine, Incl 2 - 10, Serial Range: YEG012001-YEG012116

1шт.

Has a Shunt Wire in R1 Position of Relay Block

1шт.

1

47679308

WIRE HARNESS

Engine, Incl 2 -10, Serial Range: YEG012117-YEG012595

1шт.

Has Shunt Wire Removed and R1 Position of Relay Block is Open

1шт.

2

87692817

ELEC CONNECTOR

Lincoln Lube, X-183

1шт.

2

87692876

CABLE TERMINAL,Female, Tin, 1 - 2mm

Lincoln Lube, X-183

3шт.

2

87692856

CABLE TERMINAL

Lincoln Lube, X-183

1шт.

3

87692802

ELEC CONNECTOR

Dust Cap, X-183A

1шт.

3

87686742

PLUG

Dust Cap, X-183A

4шт.

4

84519617

ELEC CONNECTOR

Engine to LH Bulkhead, X-182

1шт.

4

84555419

WIRE CONNECTOR

Engine to LH Bulkhead, X-182

1шт.

4

47519770

PLUG

Engine to LH Bulkhead, X-182

3шт.

4

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Engine to LH Bulkhead, X-182

9шт.

4

87695923

TERMINAL

Engine to LH Bulkhead, X-182

3шт.

5

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

3шт.

6

81878921

DIODE

V-722

1шт.

7

84550084

ELEC CONNECTOR

Engine to Exhaust Bulkhead, X-619

1шт.

7

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

Engine to Exhaust Bulkhead, X-619

2шт.

7

87696141

TERMINAL

Engine to Exhaust Bulkhead, X-619

12шт.

7

84807680

PLUG

Engine to Exhaust Bulkhead, X-619

12шт.

7

84068583

PLUG,12 - 16 Ga, White

Engine to Exhaust Bulkhead, X-619

3шт.

8

84603963

MODULE

Maxi Module, X-645

1шт.

8

82012388

FUSE,30A, Maxival, Green

Maxi Module, X-645

1шт.

8

84157159

FUSE,40A, Maxi, Orange

Maxi Module, X-645

1шт.

8

84539290

RELAY,12V, 50A

Maxi Module, X-645

1шт.

8

47563654

ELEC CONNECTOR

Tether, Maxi Module, X-645

1шт.

8

84574199

TERMINAL

Maxi Module, X-645

4шт.

8

84577567

TERMINAL

Maxi Module, X-645

2шт.

8

84574203

TERMINAL

Maxi Module, X-645

2шт.

8

87693343

TERMINAL

Maxi Module, X-645

2шт.

8

47682476

RELAY

Shunt, Maxi Module, X-645, Serial Range: YEG012001-YEG012116

1шт.

9

84380518

FUSE BOX

Micro Module, X-646

1шт.

9

47371520

DECAL

Micro Module, X-646

1шт.

9

84153830

FUSE,5A, Mini, Beige

Micro Module, X-646

1шт.

9

84127704

FUSE,20A, Mini, Yellow

Micro Module, X-646

2шт.

9

84561098

RELAY,12V, 35A

Micro Module, X-646

2шт.

9

47563654

ELEC CONNECTOR

Tether, Micro Module, X-646

1шт.

9

87686742

PLUG

Micro Module, X-646

34шт.

9

87680656

CONTACT

Micro Module, X-646

8шт.

9

87686739

CABLE TERMINAL,Female, Tin, 2.00 - 3.00mm

Micro Module, X-646

6шт.

10

84146685

WIRE CONNECTOR,Female, 3 Cavities

SCR Tank Heating Valve, X-612

1шт.

10

84123824

BOOT

SCR Tank Heating Valve, X-612

1шт.

10

84152576

TERMINAL

SCR Tank Heating Valve, X-612

2шт.

10

84129571

PLUG

SCR Tank Heating Valve, X-612

1шт.
