Запчасти Case IH 7140 (55.015.AB[02]) - WIRE HARNESS, ENGINE (55) - ELECTRICAL SYSTEMS

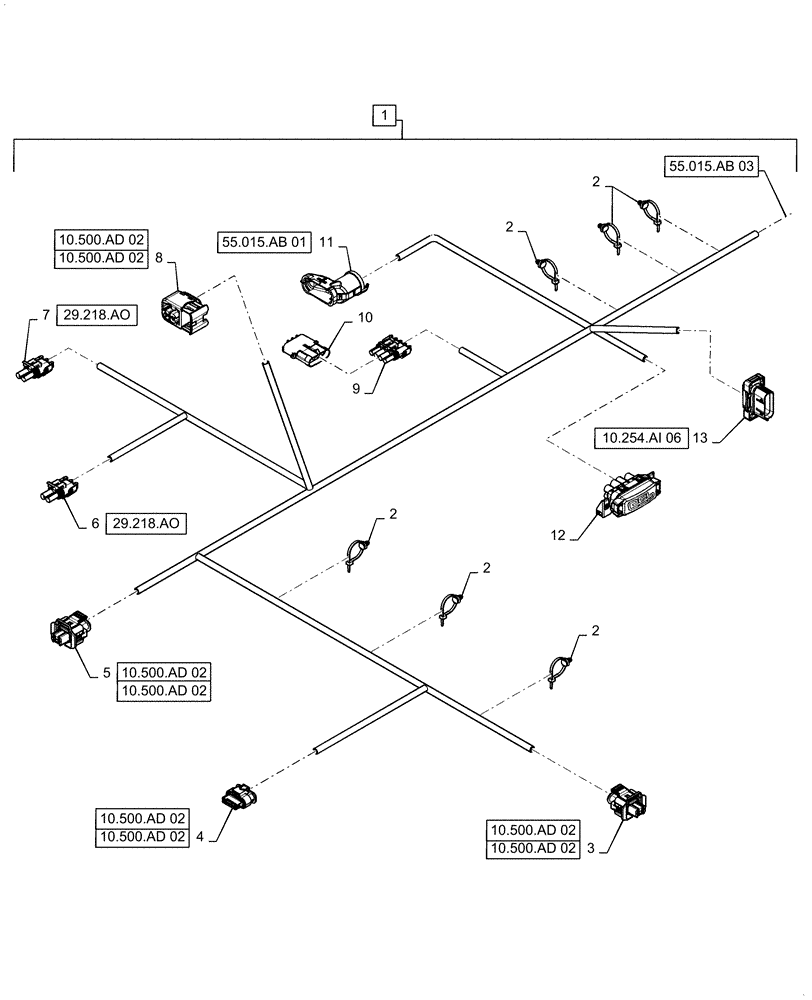

Схема запчастей Case IH 7140 - (55.015.AB[02]) - WIRE HARNESS, ENGINE (55) - ELECTRICAL SYSTEMS
55.015.ab 01
2
2
12
7
11
5
9
13
8
4
6
2
3
1
2
10
2
10.500.ad 02
10.500.ad 02
10.500.ad 02
10.500.ad 02
55.015.ab 03
10.500.ad 02
10.500.ad 02
10.500.ad 02
10.500.ad 02
29.218.ao
29.218.ao
10.254.ai 06

Артикул

Название

Примечание

Количество

1

47681982

WIRE HARNESS

Engine, C9 T4B, Incl 2 - 13

1шт.

2

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

6шт.

3

87709793

WIRE CONNECTOR,Female, 2 Cavities

DOC Upstream Exhaust Gas Temp, X-651

1шт.

3

84137906

BOOT

DOC Upstream Exhaust Gas Temp, X-651

1шт.

3

47399877

TERMINAL

DOC Upstream Exhaust Gas Temp, X-651

2шт.

4

84190317

WIRE CONNECTOR,Female, 5 Cavities

DOC Upstream NOX, X-648

1шт.

4

84428160

BOOT

DOC Upstream NOX, X-648

1шт.

4

47400436

TERMINAL

DOC Upstream NOX, X-648

3шт.

4

47400437

TERMINAL

DOC Upstream NOX, X-648

2шт.

5

87709798

ELEC CONNECTOR,Female, 2 Cavities

Urea Dosing Valve, X-605

1шт.

5

84137906

BOOT

Urea Dosing Valve, X-605

1шт.

5

84130602

TERMINAL CONNECTOR

Urea Dosing Valve, X-605

2шт.

6

87692855

CONTACT HOUSING,Male, 2 Cavities

Hydro Neutral Switch, X-184

1шт.

6

87692856

CABLE TERMINAL

Hydro Neutral Switch, X-184

2шт.

7

87692855

CONTACT HOUSING,Male, 2 Cavities

Hydraulic Oil Temp, X-185

1шт.

7

87692856

CABLE TERMINAL

Hydraulic Oil Temp, X-185

2шт.

8

84146685

WIRE CONNECTOR,Female, 3 Cavities

SCR Tank Heating Valve, X-612

1шт.

8

84129571

PLUG

SCR Tank Heating Valve, X-612

1шт.

8

84123824

BOOT

SCR Tank Heating Valve, X-612

1шт.

8

84152576

TERMINAL

SCR Tank Heating Valve, X-612

2шт.

9

87692817

ELEC CONNECTOR

Lincoln Lube, X-183

1шт.

9

87692876

CABLE TERMINAL,Female, Tin, 1 - 2mm

Lincoln Lube, X-183

3шт.

9

87692856

CABLE TERMINAL

Lincoln Lube, X-183

1шт.

10

87692802

ELEC CONNECTOR

Dust Cap, X-183A

1шт.

10

87686742

PLUG

Dust Cap, X-183A

4шт.

11

84519617

ELEC CONNECTOR

Elec Connector, Engine to LH Bulkhead, X-182

1шт.

11

84555419

WIRE CONNECTOR

Backshell, Engine to LH Bulkhead, X-182

1шт.

11

47519770

PLUG

Engine to LH Bulkhead, X-182

3шт.

11

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Engine to LH Bulkhead, X-182

11шт.

11

87695923

TERMINAL

Engine to LH Bulkhead, X-182

4шт.

12

84603963

MODULE

Maxi Module, X-645

1шт.

12

82012388

FUSE,30A, Maxival, Green

Maxi Module, X-645

2шт.

12

84539290

RELAY,12V, 50A

Maxi Module, X-645

2шт.

12

47563654

ELEC CONNECTOR

Tether, Maxi Module, X-645

1шт.

12

84577567

TERMINAL

Maxi Module, X-645

2шт.

12

84574203

TERMINAL

Maxi Module, X-645

2шт.

12

87693343

TERMINAL

Maxi Module, X-645

2шт.

13

84550084

ELEC CONNECTOR

Elec Connector, Engine to Exhaust Bulkhead, X-619

1шт.

13

84807680

PLUG

Engine to Exhaust Bulkhead, X-619

13шт.

13

84068583

PLUG,12 - 16 Ga, White

Engine to Exhaust Bulkhead, X-619

3шт.

13

87696141

TERMINAL

Engine to Exhaust Bulkhead, X-619

14шт.

13

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

Engine to Exhaust Bulkhead, X-619

2шт.

Выбрано товаров: 42
