Запчасти Case IH 7140 (41.432.AE) - VALVE, AUXILIARY STEERING (41) - STEERING

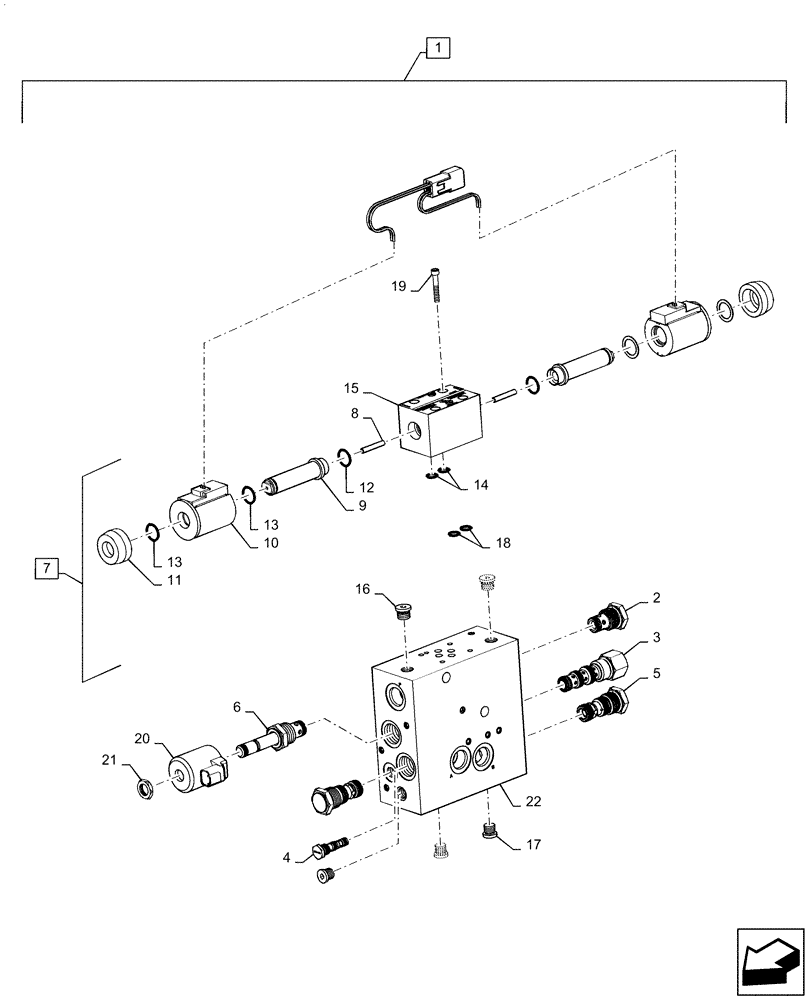

Схема запчастей Case IH 7140 - (41.432.AE) - VALVE, AUXILIARY STEERING (41) - STEERING
13
15
1
11
20
18
22
19
7
21
5
9
10
6
12
17
13
8
14
16
2
3
4

Артикул

Название

Примечание

Количество

1

87673657

VALVE

Auto Guidance With Steer Enable, Incl 2 - 22

1шт.

2

87591594

VALVE

Check Cartridge

1шт.

3

87590351

VALVE

Pilot To Shift Cartridge

1шт.

4

87591593

VALVE

Shuttle Cartridge

1шт.

5

87591596

VALVE

Check Cartridge

2шт.

6

87026232

VALVE

2W2P Solenoid Cartridge

1шт.

7

87673659

VALVE

Proportional, Incl 8 - 15

1шт.

8

196737A1

SPLIT PIN/SAFETY PIN

Proportional Valve

2шт.

9

87439633

TUBE,17.5mm OD x 72.81mm OAL

Proportional Valve

2шт.

10

87662365

COIL

12 VDC, Proportional Valve

2шт.

11

188106A1

NUT

Retaining, Proportional Valve

2шт.

12

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

Proportional Valve

2шт.

13

122056

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

Proportional Valve

4шт.

14

86629543

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

Proportional Valve

4шт.

15

NSS

NOT SOLD SEPARAT

Body, Proportional Valve, Incl In 7

1шт.

16

87035062

PLUG,Hex, 1/2"-20 ORB

2шт.

17

278548

PLUG,Hex, 7/16"-20 ORB

3шт.

18

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

19

281060

HEX SOC SCREW,HSH, #10 - 24 x 1-1/4"

4шт.

20

87623908

COIL ASSY.

Solenoid

1шт.

21

195683A1

JAM NUT,1/2"-20

1шт.

22

NSS

NOT SOLD SEPARAT

Body, Auto Guidance Valve, Incl In 1

1шт.

Выбрано товаров: 22
