Запчасти Case IH 7140 (41.432.AC) - HYDRAULIC SYSTEM, STEERING VALVE (41) - STEERING

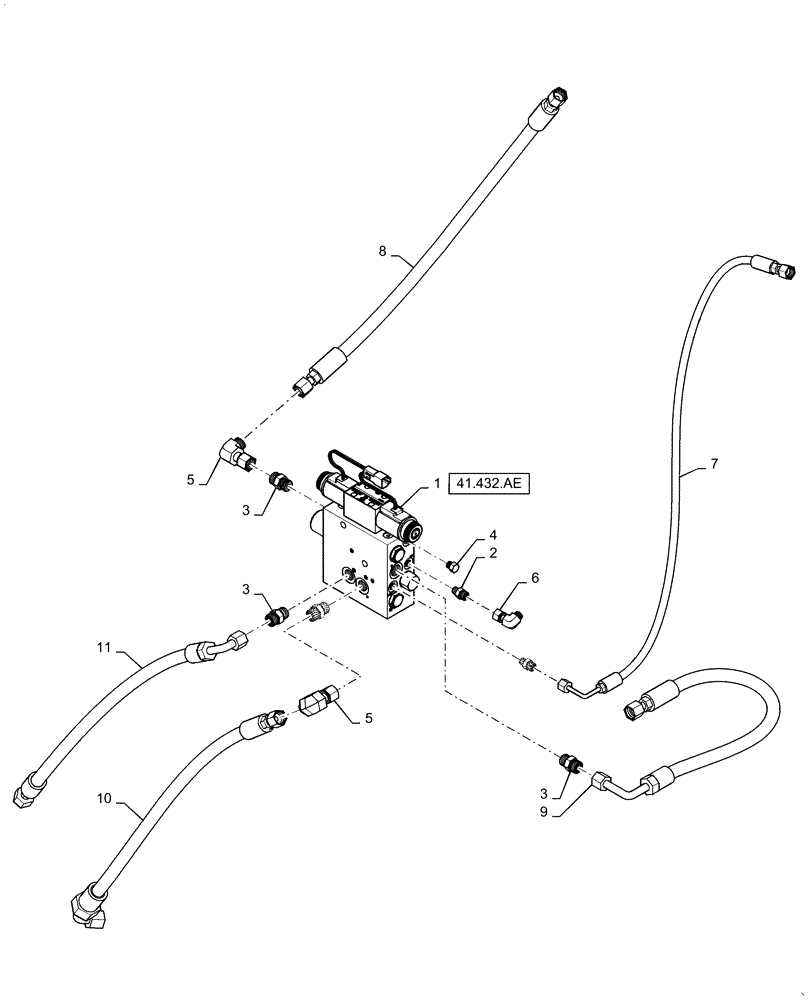

Схема запчастей Case IH 7140 - (41.432.AC) - HYDRAULIC SYSTEM, STEERING VALVE (41) - STEERING
6
5
11
3
2
10
8
41.432.ae
1
3
5
3
4
9
7

Артикул

Название

Примечание

Количество

1

87673657

VALVE

Auto Guidance With Steer Enable

1шт.

2

87681202

HYD CONNECTOR,9/16" - 18 ORFS x 7/16" - 20 ORB

1/4" ORFS x 1/4" ORB

2шт.

3

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

4шт.

4

9672438

PLUG,7/16" - 20 ORB

1шт.

5

201-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

2шт.

6

87017578

ELBOW,90 Degree, 9/16"-18 x 9/16"-18 Fem Sw ORFS

1шт.

7

84156349

HOSE ASSY.,6.35mm ID x 1025mm L, SAE 100R17

Auto Guidance LS2

1шт.

8

84347763

HOSE ASSY.,12.7mm ID x 715mm L, SAE 100R17

Auto Guidance Inlet

1шт.

9

84156348

HOSE ASSY.,12.7mm ID x 680mm L, SAE 100R17

Auto Guidance Tank

1шт.

10

87750011

HOSE ASSY.

Auto Guidance Work Port

1шт.

11

84584187

HYDRAULIC HOSE,12.7mm ID x 735mm L, SAE 100R17

Auto Guidance Work Port

1шт.

Выбрано товаров: 11
