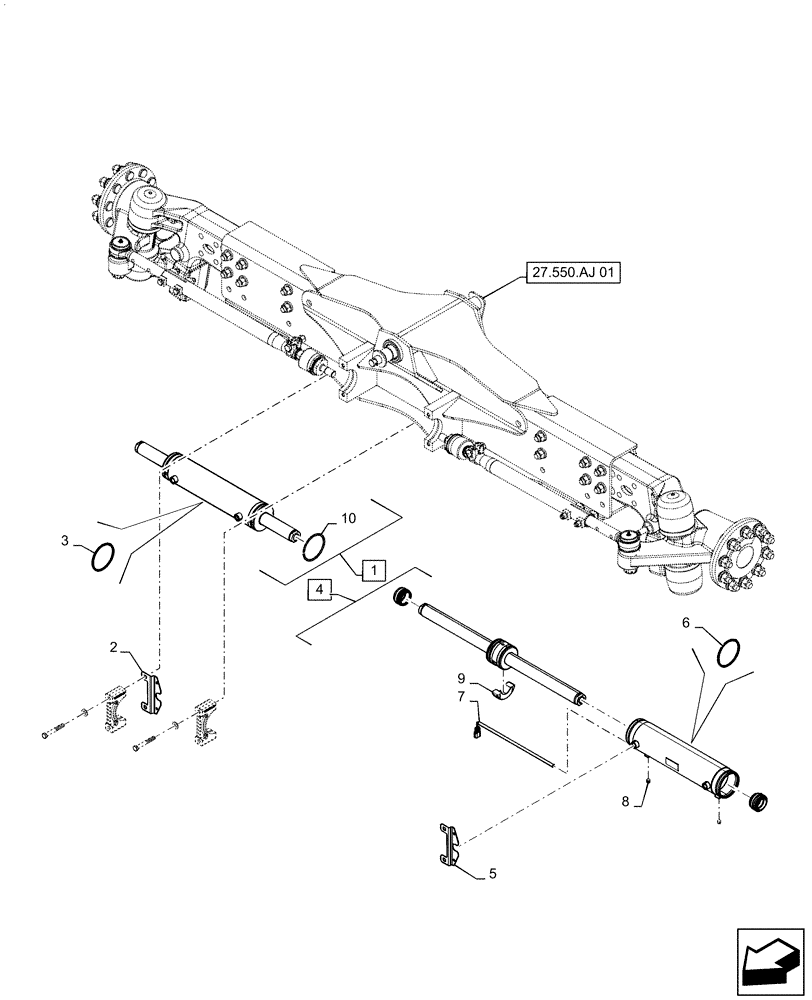

Запчасти Case IH 7140 (41.216.AO) - STEERING CYLINDER (41) - STEERING

1

87674051

STEERING CYLINDER,45mm Rod, 284mm Stroke

Standard Steering

1шт.

2

87753056

BRACKET

Steering Cylinder Mount

2шт.

3

87597609

SEAL PACKAGE

Services 1

2шт.

4

84385653

STEERING CYLINDER

Steering W/ Auto Guidance, Incl 7 - 9

1шт.

5

84428963

BRACKET

Steering Cylinder Mount

2шт.

6

47411041

SEAL KIT

Services 4

1шт.

7

84567630

SENSOR

Steering Position, Auto Guidance

1шт.

8

13797721

SET SCREW,Hex Skt, M6 x 8mm, Cone Pt

2шт.

9

84567649

MAGNET

Steering Position

1шт.

10

47870722

SNAP RING

Cylinder Retention, Incl in 1

1шт.
