Запчасти Case IH 7140 (41.200.AO) - HYDRAULIC LINE, STEERING (41) - STEERING

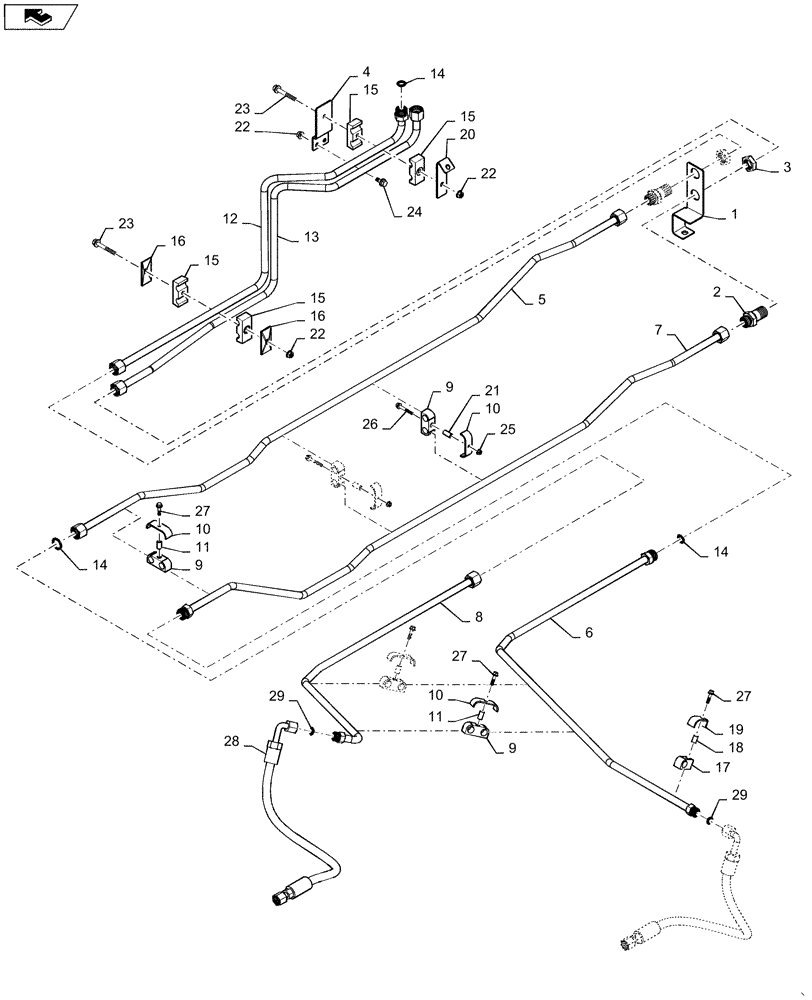

Схема запчастей Case IH 7140 - (41.200.AO) - HYDRAULIC LINE, STEERING (41) - STEERING
27
27
10
16
14
14
22
4
24
20
15
29
15
9
29
3
12
9
7
9
22
22
10
23
17
28
11
15
11
13
18
16
27
8
1
5
6
19
23
25
15
26
2
14
10
21

Артикул

Название

Примечание

Количество

1

84538152

SUPPORT

Steering Line Bulkhead

1шт.

2

201-123

HYD CONNECTOR,1"-14, Blkhd, ORFS

2шт.

3

87381294

LOCK NUT

1" - 14, 10.5

2шт.

4

87389212

SUPPORT TUBE,130.99 mm L

1шт.

5

84537722

HYD TUBE

Steering, Middle Right

1шт.

6

84537718

HYD TUBE

Steering, Rear Right

1шт.

7

84537723

HYD TUBE

Steering, Middle Left

1шт.

8

84537720

HYD TUBE

Steering, Rear Left

1шт.

9

84586492

CLAMP

Twin Tube

5шт.

10

301688A1

ANCHOR

Rubber Body Stirrup

5шт.

11

418785A1

SPACER

Tube Clamp

3шт.

12

84537725

HYD TUBE

Steering, Right

1шт.

13

84537726

HYD TUBE

Steering, Left

1шт.

14

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

15

87000150

CLAMP,15.869mm ID

Hydraulic Tube

2шт.

16

87000230

PLATE

Hose Clamp

2шт.

17

84172525

CLAMP

Tube Single

1шт.

18

87644729

SPACER

Tube Clamp

1шт.

19

87644667

PLATE

Tube Clamp

1шт.

20

87673666

BRACKET

Feeder Lift Hose

1шт.

21

303793A1

SLEEVE

Tube Clamp

2шт.

22

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

23

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

2шт.

24

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

2шт.

25

86050300

FLANGE NUT,M6 x 1.0, Cl 10

2шт.

26

87670759

FLANGE BOLT,M6 x 1.0 x 46.6mm, Cl 10.9

2шт.

27

87670758

FLANGE BOLT,M6 x 31.6mm, Cl 10.9

4шт.

28

87644620

HOSE ASSY.

Steering

2шт.

29

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

Выбрано товаров: 29
