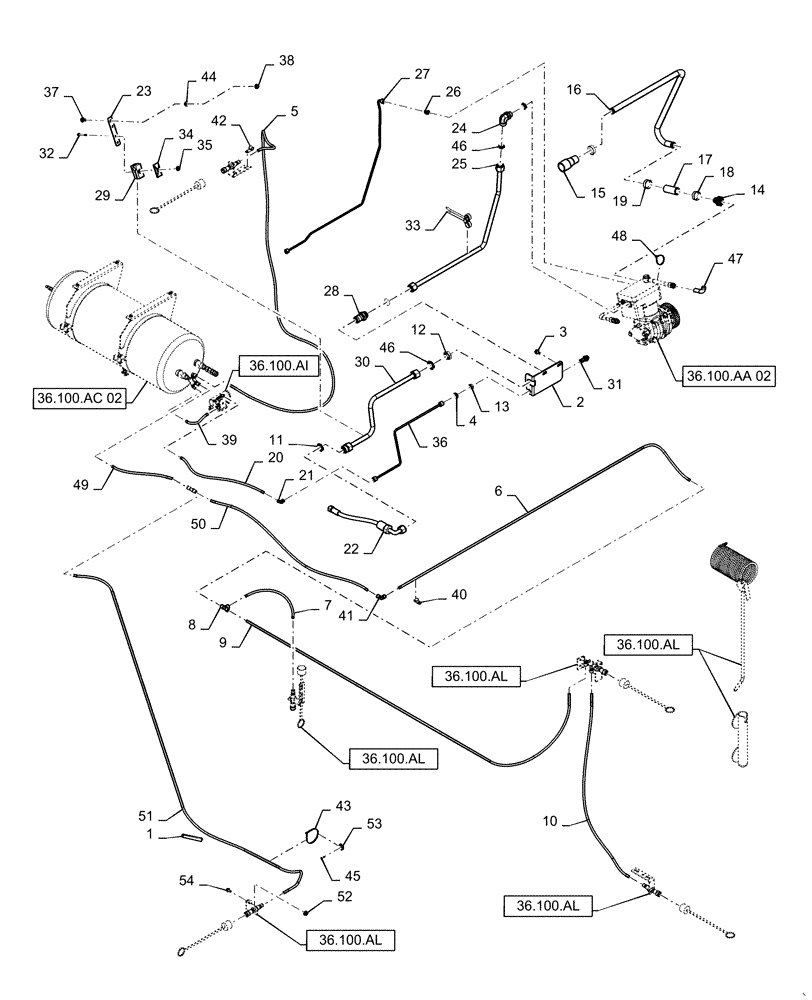

Запчасти Case IH 7140 (36.100.AK[02]) - AIR COMPRESSOR AND RESERVOIR (36) - PNEUMATIC SYSTEM

1

1327979C1

MOLDING

Trim Edge, Black

1шт.

2

47641667

BRACKET

Tube/ Hose Support

1шт.

3

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

2шт.

4

86625102

O-RING,0.07" Thk x 0.301" ID, -11, Cl 7, 75 Duro

.312" OD x .062"

2шт.

5

84372640

AIR HOSE

Reservoir To Beacon Quick Disconnect

1шт.

6

84372644

AIR HOSE

Reservoir To Midship Tee

1шт.

7

84176521

HOSE

Midship Tee To Midship Quick Disconnect

1шт.

8

84175931

HYD CONNECTOR

Tee, Push Connect, 3/8"

2шт.

9

84176522

TUBE,7.11 mm ID x 3220.00 mm

Midship Tee To Operators Platform Quick Disconnect

1шт.

10

84172815

AIR HOSE,7.11mm ID x 1150mm OAL

Operators Platform To Under Cab Quick Disconnect

1шт.

11

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

12

218-1249

BHD LOCK NUT,1-3/16" - 12

1шт.

13

218-1254

LOCK NUT,Blkhd, 9/16"-18

1шт.

14

84036669

FITTING

M26

1шт.

15

84073303

HOSE,25mm ID - 38mm ID x 100mm OAL

Air Intake

1шт.

16

84227701

RIGID TUBE

Air Intake

1шт.

17

87637434

HYDRAULIC HOSE,1" ID x 3.1" L

1шт.

18

382527

HOSE CLAMP,25mm ID - 40mm ID x 13mm W, Unlined

3шт.

19

382528

HOSE CLAMP,35mm ID - 52mm ID x 13mm W, Unlined

1шт.

20

47439781

HYDRAULIC HOSE

Governor

1шт.

21

84162976

HYD CONNECTOR

Elbow, Push Connect, 1/4"

1шт.

22

84346374

AIR HOSE

Tube To Reservoir

1шт.

23

84527246

BRACKET

Tube Support, Engine

1шт.

24

87598659

ELBOW

20mm ORFS x M26 ORB

1шт.

25

47601635

TUBE

Air Compressor To Union

1шт.

26

82019386

HYD CONNECTOR

M12 x 9/16"-18

1шт.

27

47601636

TUBE

Governor

1шт.

28

201-140

HYD CONNECTOR,1-3/16" - 12, Blkhd, ORFS

1шт.

29

87000143

CLAMP

Tube, 19.05mm

1шт.

30

47651262

TUBE

Union To Hose

1шт.

31

201-108

HYD CONNECTOR,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS

1шт.

32

87698761

BOLT,Hex, M6 x 60mm, Cl 10.9

Flange, M6 x 60mm, 10.9

1шт.

33

84386243

CLAMP,489mm L

Dual Tie

3шт.

34

87000230

PLATE

Hose Clamp

1шт.

35

86050300

FLANGE NUT,M6 x 1.0, Cl 10

1шт.

36

47650157

TUBE

Governor

1шт.

37

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

1шт.

38

86050279

FLANGE NUT,M10 x 1.5, Cl 10

1шт.

39

84372641

AIR HOSE

Reservoir To Beacon Quick Disconnect

1шт.

40

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

2шт.

41

84372662

FITTING

Elbow Union, 3/8"

1шт.

42

516-22127

CLAMP,12.7mm ID, 8.7mm Bolt Hole, J Type

1шт.

43

86566990

CABLE TIE,292mm OAL x 4.8mm W

10шт.

44

87698854

NUT,M10

1шт.

45

445394

RIVET,Pop, 3/16" x 1/2" OAL

1шт.

46

86625099

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

4шт.

47

87582269

DUCT

Tubing Cover, 11"

1шт.

48

86566989

CABLE TIE,208mm L

1шт.

49

47369196

HYDRAULIC HOSE

Reservoir To Midship Tee

1шт.

50

47369205

HYDRAULIC HOSE

Reservoir To Midship Tee

1шт.

51

47364924

HYDRAULIC HOSE

Midship Tee To Quick Connect

1шт.

52

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

53

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

1шт.

54

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

2шт.
