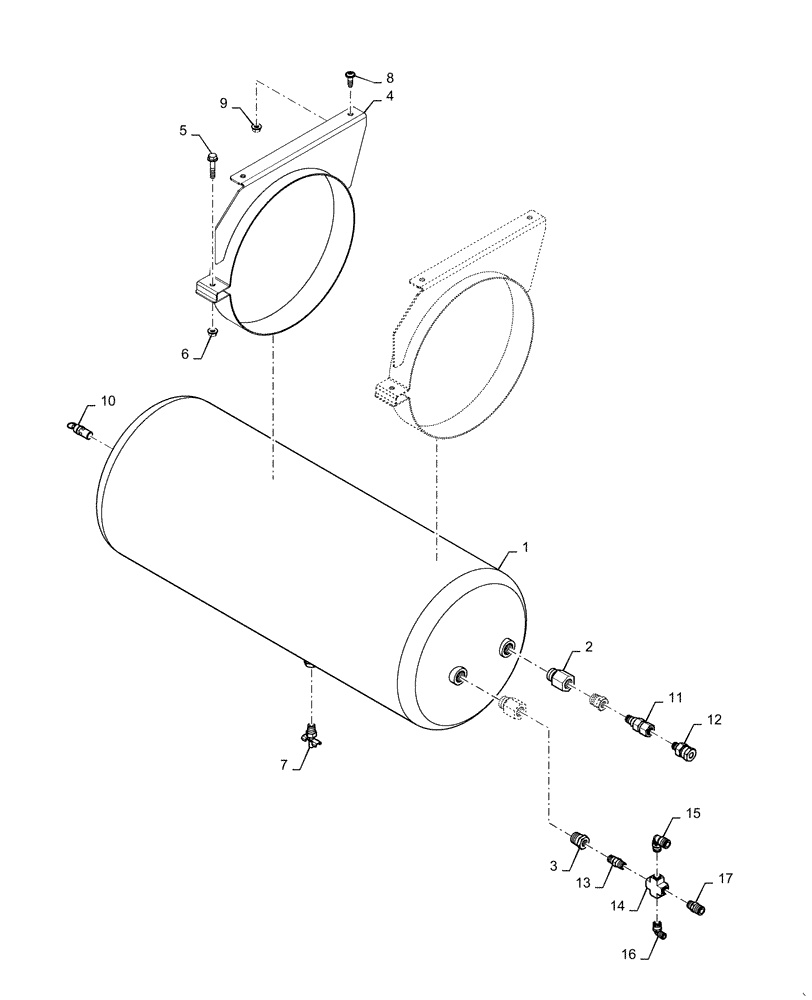

Запчасти Case IH 7140 (36.100.AC[02]) - RESERVOIR, AIR COMPRESSOR (36) - PNEUMATIC SYSTEM

1

84036945

AIR RESERVOIR

60L

1шт.

2

84171940

HYD CONNECTOR

M22 x 1/2" NPTF

4шт.

3

217-43

REDUCER,1/2" - 14 NPTF x 1/4" - 18 Fem NPTF

4шт.

4

84144718

BRACKET

Reservoir Mounting

2шт.

5

87698834

BOLT,M8 x 48.1mm, Cl 10.9

Flange, M8 x 40mm, 10.9

2шт.

6

87681210

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

7

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

1шт.

8

87624708

STEP BOLT,Torx, M8 x 1.25 x 25.4mm, Cl 10.9

4шт.

9

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

10

84994447

VALVE PRESSURE RELIE

Pop-Off

1шт.

11

84994444

VALVE SECTION

Check Valve

1шт.

12

84173777

UNION

Swivel, 1/4" x 3/8"

1шт.

13

217-195

FITTING,1/4" - 18 Male NPTF x 1/4" - 18 Male NPTF

1шт.

14

84159156

CROSS,1/4" - 18NPT

Cross, 1/4" NPTF

1шт.

15

84162975

HYD CONNECTOR

3/8" Push Connect

1шт.

16

84162976

HYD CONNECTOR

1/4" Push Connect

1шт.

17

84162977

HYD CONNECTOR

Adapter, 3/8" Push Connect

1шт.
