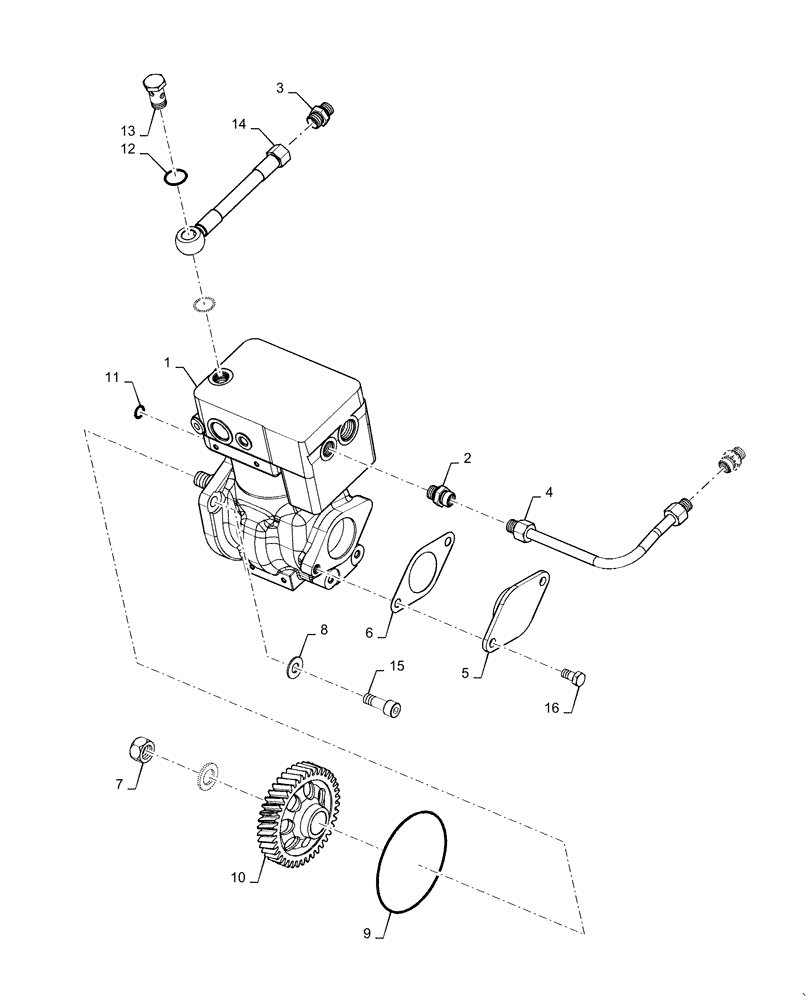

Запчасти Case IH 7140 (36.100.AA[02]) - PUMP, AIR COMPRESSOR (36) - PNEUMATIC SYSTEM

1

84307299

AIR COMPRESSOR

Blow Off

1шт.

2

87533446

FITTING

Union, Straight, M18 x 1.5

1шт.

3

87533447

FITTING

Union, Straight, M16 x M18

2шт.

4

87520363

TUBE

Engine Oil Supply

1шт.

5

84441022

COVER

Rear Cap

1шт.

6

84441023

GASKET

Rear Cover

1шт.

7

84307309

NUT

M18, LH

1шт.

8

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

3шт.

9

84441025

O-RING

Compressor To Engine

1шт.

10

87520321

GEAR

41 Tooth

1шт.

11

84441024

O-RING,9.19mm ID x 2.62mm Thk

1шт.

12

84441019

O-RING

26mm OD x 18mm ID x 1.5mm

2шт.

13

87542795

HOLLOW SCREW

Flow Through

1шт.

14

87520362

FLEXIBLE HOSE

Engine Oil Supply

1шт.

15

84441027

BOLT

M12 x 35mm

3шт.

16

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.
