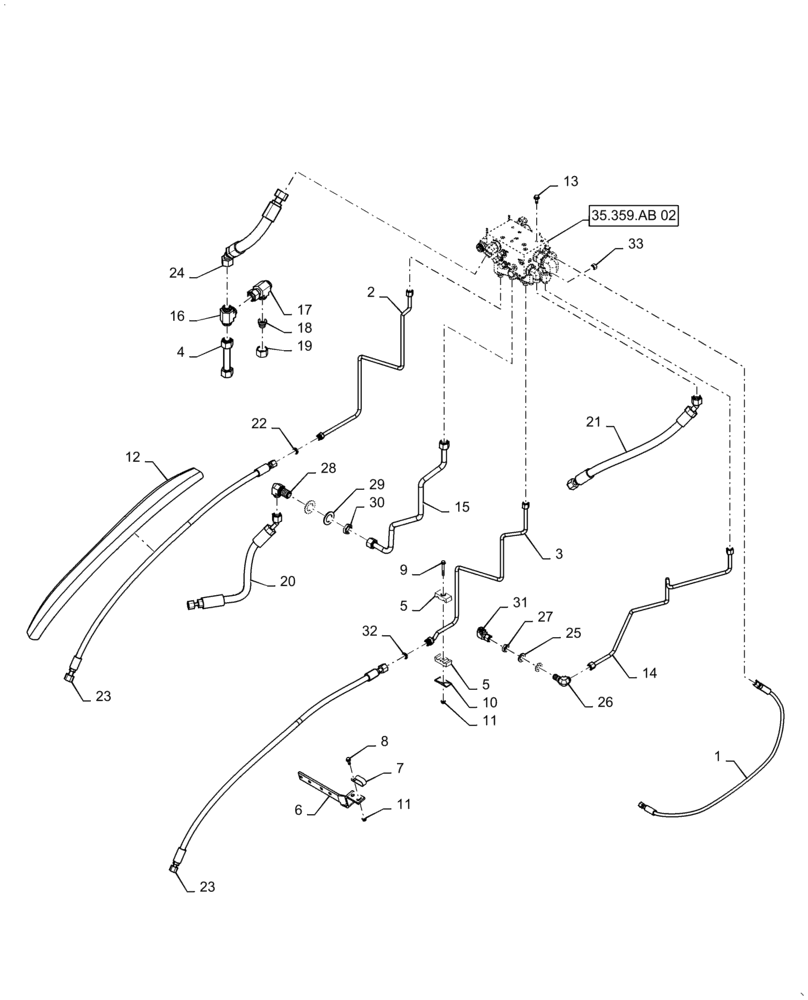

Запчасти Case IH 7140 (35.359.AB[01]) - HYDRAULIC SYSTEM, MAIN STACK VALVE (35) - HYDRAULIC SYSTEMS

1

84260471

HOSE ASSY.

Pump Signal

1шт.

2

84518532

HYD TUBE

Reverser Return

1шт.

3

84350040

HYD TUBE

Reverser Supply

1шт.

4

84260113

HYD TUBE

Reel Return

1шт.

5

87000149

CLAMP

Tube

1шт.

6

87605327

BRACKET

Feeder Hoses

1шт.

7

470375C1

CLAMP,1", Insul, 3/8" Bolt

Medium Duty

1шт.

8

87698833

BOLT,M8 x 33.1mm, Cl 10.9

1шт.

9

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

1шт.

10

87000230

PLATE

Hose Clamp

1шт.

11

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

12

1324451C1

PROTECTIVE SLEEVE,40.4 mm ID x 914.50 mm

1шт.

13

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

3шт.

14

84359760

HYD TUBE

Steer Supply

1шт.

15

84518535

HYD TUBE

Feeder Lift

1шт.

16

201-410

TEE,1 7/16"-12 ORFS

1шт.

17

201-418

TEE,1-7/16" - 12 ORFS x 1-7/16" - 12 ORFS x 1-7/16" - 12 ORFS

1шт.

18

201-149

REDUCER,13/16"-16 Male x 1 7/16"-12 Fem, ORFS

1шт.

19

203-905

TUBE NUT,1 7/16"-12 ORFS

1шт.

20

84304076

HYDRAULIC HOSE,6.35mm ID x 410mm L, SAE 100R17

Load Sense

1шт.

21

84565377

HYDRAULIC HOSE,19.05mm ID x 690mm L, SAE 100R17

Reel Function Supply

1шт.

22

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

23

84324767

HOSE ASSY.,12.7mm ID x 1560mm L, SAE 100R17

Reverser Supply/Return

2шт.

24

84536111

HYDRAULIC HOSE,25.4mm ID x 455mm L, SAE 100R1

Valve Stack Return

1шт.

25

140021

WASHER,22mm ID x 37mm OD x 3mm Thk

2шт.

26

87319550

90 ELBOW

1/2" ORFS

1шт.

27

87381289

BHD LOCK NUT,13/16"-16, 12mm OD

1/2" Tube

1шт.

28

201-323

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS

1шт.

29

87020814

WASHER,33mm ID x 56mm OD x 4mm Thk

2шт.

30

218-1249

BHD LOCK NUT,1-3/16" - 12

1шт.

31

201-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

32

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

33

87331951

ORIFICE

Cap, 1/2" ORFS

1шт.
