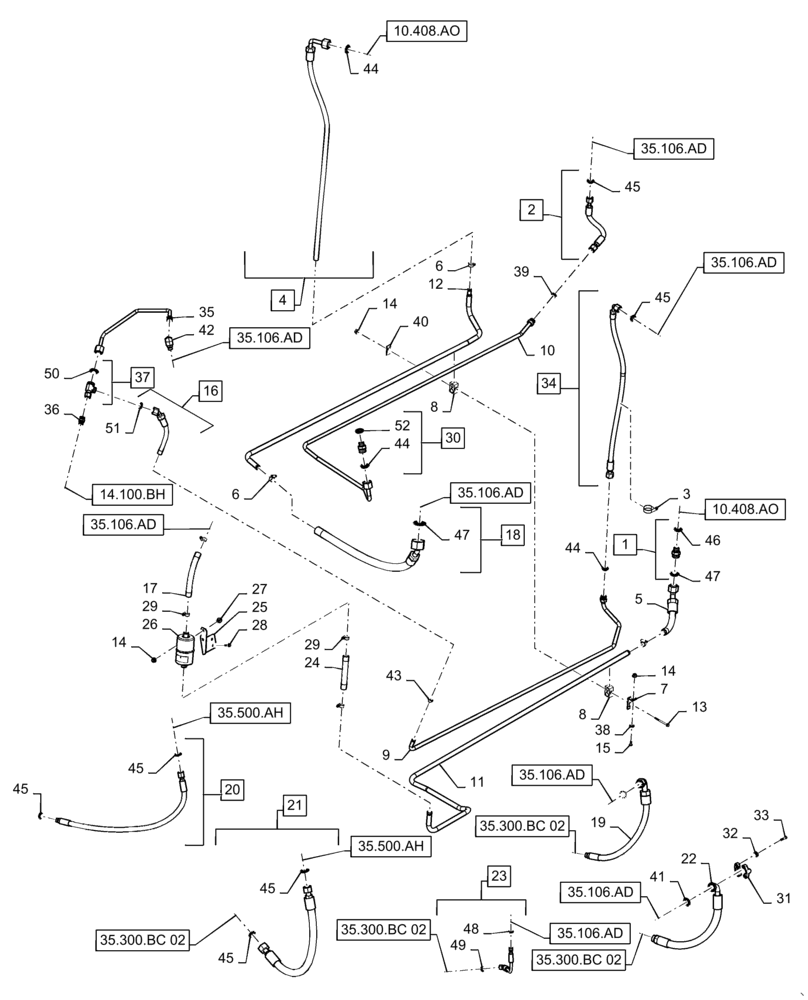

Запчасти Case IH 7140 (35.300.BC[01]) - HYDRAULIC SYSTEM, ENGINE, COOLER, PTO (35) - HYDRAULIC SYSTEMS

1

87303844

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 46 - 47

1шт.

2

84355977

HOSE ASSY.,15.88mm ID x 375mm L, SAE 100R6

Hydraulic Supply, Incl 45

1шт.

3

515-23508

CLAMP,2", Insul, 3/8" Bolt

1шт.

4

84556774

HYDRAULIC HOSE,19.05mm ID x 1330mm L, SAE 100R4

Cooler Return, Incl 44

1шт.

5

84317535

HOSE ASSY.,25.4mm ID x 325mm L

Cooler

1шт.

6

214-3228

HOSE CLAMP,1" - 1-7/8", HD Worm, W/ Liner

3шт.

7

87549264

SUPPORT TUBE,112.4 mm L

Tube Bundle Center

2шт.

8

87000146

CLAMP

Tube

4шт.

9

84570331

HYD TUBE

PTO Cooler Return

1шт.

10

84347786

HYD TUBE

PTO Cooler Supply

1шт.

11

47419567

HYD TUBE

Hydraulic Cooler Supply

1шт.

12

84556772

HYD TUBE

Hydraulic Cooler Return

1шт.

13

87301686

BOLT,M8 x 108.1mm, Cl 10.9

Flange, M8 x 100mm, 10.9

2шт.

14

86507066

FLANGE NUT,M8 x 1.25, Cl 10

6шт.

15

87682384

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 10.9

2шт.

16

84570336

HOSE ASSY.,19.05mm ID x 320mm L, SAE 100R6

PTO Cooler Return, Incl 51

1шт.

17

84156333

HOSE ASSY.

Cooler

1шт.

18

84556773

HYDRAULIC HOSE

Cooler Return, Incl 47

1шт.

19

84304550

HOSE ASSY.,19.05mm ID x 725mm L, SAE 100R6

Low Pressure Return

1шт.

20

84347774

HOSE ASSY.,12.7mm ID x 1090mm L, SAE 100R17

Air Screen Supply, Incl 45

1шт.

21

84347775

HOSE ASSY.,25.4mm ID x 1025mm L, SAE 100R17

Rear Return, Incl 45

1шт.

22

84355975

HOSE ASSY.,25.4mm ID x 685mm L, SAE 100R17

Main Supply

1шт.

23

84156311

HOSE ASSY.,6.35mm ID x 365mm L, SAE 100R17

Signal Pump To Tube, Incl 48 - 49

1шт.

24

84156334

HOSE ASSY.

Cooler Return

1шт.

25

47433809

BRACKET

Screen

1шт.

26

87684758

HYDRAULIC OIL FILTER,27.4mm Hose Barb, 27.4mm Hose Barb, 203.71mm L

Return

1шт.

27

87681207

BOLT,M8 x 24.1mm, Cl 10.9

2шт.

28

87698833

BOLT,M8 x 33.1mm, Cl 10.9

2шт.

29

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

4шт.

30

86579681

HYD CONNECTOR,1-3/16"-12 ORFS x M22 x 1.5 ORB

Incl 44, 52

1шт.

31

86980728

COLLAR CLAMP

Split Flange

2шт.

32

9618968

WASHER,0.41" ID x 0.78" OD x 0.1" Thk

3/8"

4шт.

33

87564748

BOLT

3/8" x 1 1/2" Full Thread

4шт.

34

84356578

HOSE ASSY.,12.7mm ID x 1225mm L, SAE 100R6

Supply, Incl 45

1шт.

35

84425180

TUBE

PTO Cooler Return

1шт.

36

84420304

HYD CONNECTOR

16mm ORFS x 22mm ORB

1шт.

37

201-433

TEE,1"-14 ORFS x 1"-14 Sw Run

Incl 50 - 51

1шт.

38

131-440

PUSH-ON NUT

5/16"

2шт.

39

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

40

87000230

PLATE

Hose Clamp

2шт.

41

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

42

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

1шт.

43

87016721

HOSE CLAMP,17.5mm - 31.7mm

1шт.

44

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

45

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

6шт.

46

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

47

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

48

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

49

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

50

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

51

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

52

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.
