Запчасти Case IH 7140 (35.106.AD) - DRIVE, TANDEM GEAR PUMP (35) - HYDRAULIC SYSTEMS

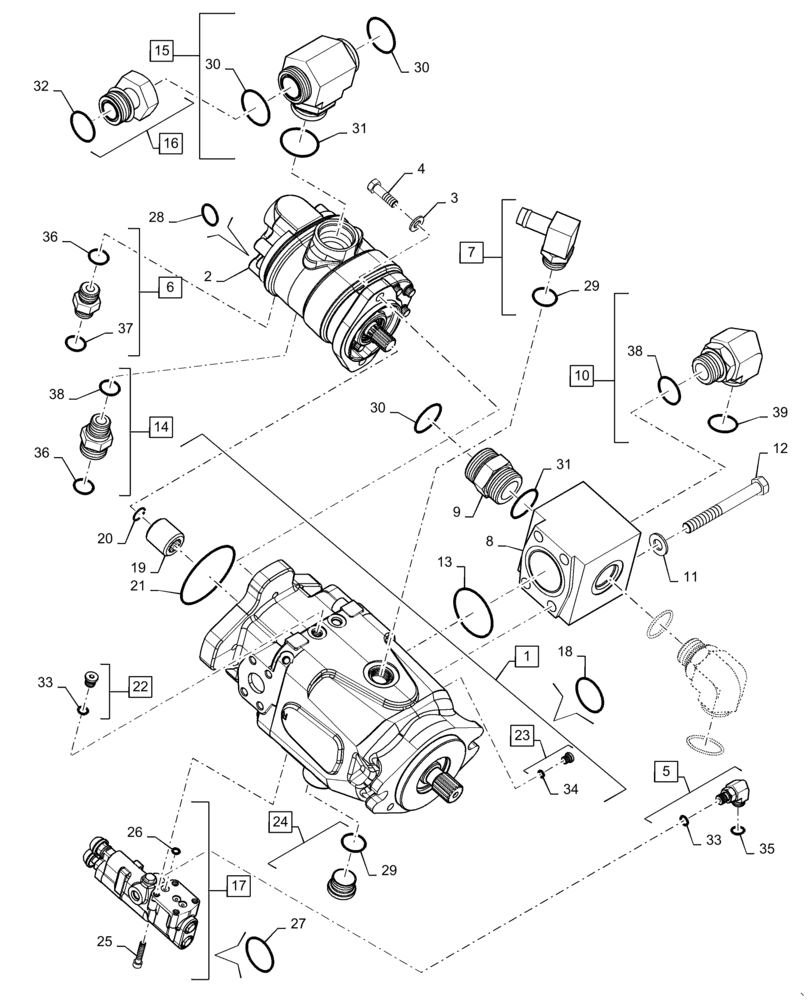

Схема запчастей Case IH 7140 - (35.106.AD) - DRIVE, TANDEM GEAR PUMP (35) - HYDRAULIC SYSTEMS
9
21
8
30
35
14
25
39
10
30
34
30
32
5
31
11
31
19
13
36
3
29
33
38
23
12
33
29
26
1
18
27
4
28
17
24
36
20
38
22
37
2
6
15
16
7

Артикул

Название

Примечание

Количество

1

84148055

HYDRAULIC PUMP,62.3 CC

PFC W/ Thru Drive, Incl 17 - 27

1шт.

1

84148055R

REMAN-HYD PUMP

Reman PFC W/ Thru Drive, Incl 17 - 27

1шт.

1

84148055C

CORE-HYDRAULIC PUMP

Core Return Number

1шт.

2

84148068

HYDRAULIC PUMP,27.7 CC

Tandem Gear

1шт.

3

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

2шт.

4

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

5

87681199

90 ELBOW

90°, 9/16-18 ORFS x 7/16-20 ORB, Incl 33, 35

1шт.

6

87610720

HYD CONNECTOR,7/8" - 14 ORB x 13/16" - 16 ORFS

13/16-16 ORFS x 7/8-14 ORB, Incl 36, 37

1шт.

7

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

Incl 29

1шт.

8

84178552

MANIFOLD

PFC

1шт.

9

9840325

HYD CONNECTOR,1 11/16"-12 ORFS x 1 5/8"-12 ORB

1шт.

10

9846955

90 ELBOW,1-7/16"-12 ORFS x 1-5/16"-12 ORB

90°, 1-7/16-12 ORFS x 1-5/16-12 ORB, Incl 38, 39

2шт.

11

86632589

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.

12

87996

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

4шт.

13

86637769

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

14

9840534

HYD CONNECTOR,1-3/16" - 12 ORFS x 7/8" - 14 ORB

1шт.

15

84302526

HYD CONNECTOR

1-11/16-12 ORFS x 1-5/8-12 ORB, Incl 30 (2), 31 (1)

1шт.

"T" Connector Requires (2) Ref 30 Orings

1шт.

16

201-118

REDUCER,1-7/16" - 12 Male ORFS x 1-11/16" - 12 Male ORFS

Incl 32

1шт.

17

84193573

KIT

PFC Pump, Incl 25 - 26

1шт.

Ref 5 90° HYD Connector Serviced Separately

1шт.

18

87585824

SEAL KIT

Services 1

1шт.

19

86566800

COUPLING

11 Tooth

1шт.

20

87585828

SNAP RING

Coupler

1шт.

21

238-6042

O-RING,0.07" Thk x 3.239" ID, -42, Cl 6, 90 Duro

1шт.

22

278548

PLUG,Hex, 7/16"-20 ORB

Incl 33

3шт.

23

86632547

PLUG,Hex, 5/16"-24 ORB

Incl 34

3шт.

24

9841223

PLUG,1-1/16" - 12 ORB

Incl 29

1шт.

25

86512871

HEX SOC SCREW,1/4" - 28 x 1 1/4"

4шт.

26

86512844

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

3шт.

27

87585826

SEAL KIT

Services 17

1шт.

28

87025563

SEAL KIT

Services 2

1шт.

29

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

30

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

3шт.

31

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

2шт.

32

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

33

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4шт.

34

86010510

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

3шт.

35

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

36

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

37

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

38

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

2шт.

39

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

Выбрано товаров: 43
