Запчасти Case IH 7140 (27.450.AL[04]) - MOTOR, REAR AXLE ASSY, 2-SPEED, RH (27) - REAR AXLE SYSTEM

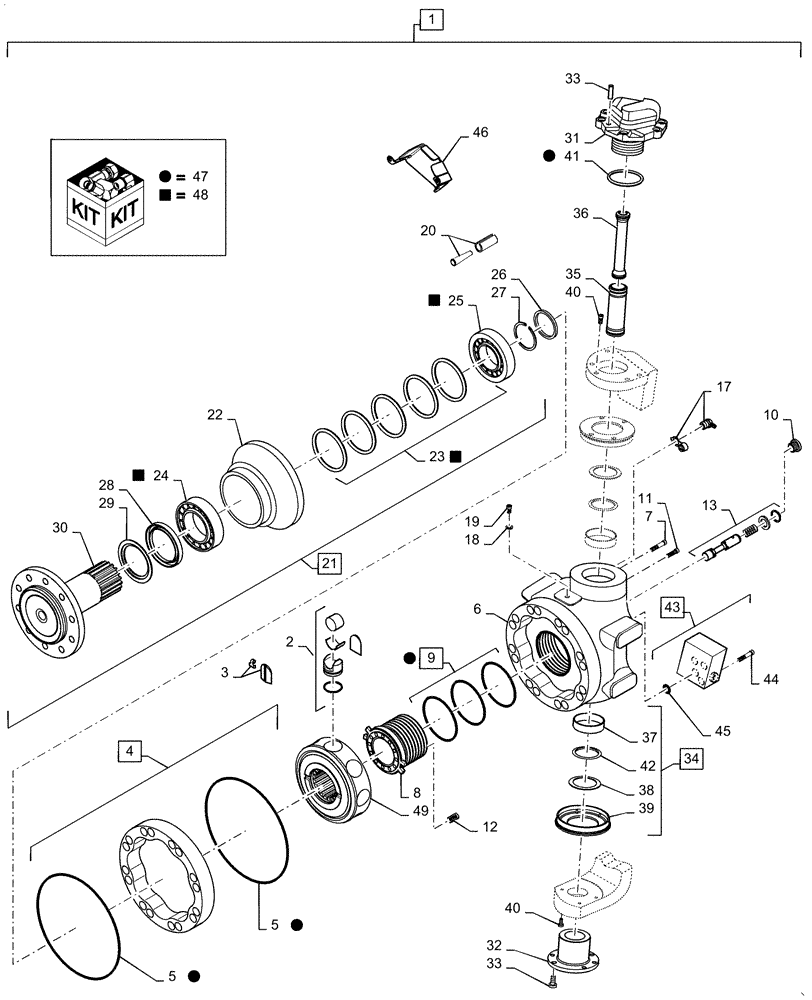

Схема запчастей Case IH 7140 - (27.450.AL[04]) - MOTOR, REAR AXLE ASSY, 2-SPEED, RH (27) - REAR AXLE SYSTEM
48
7
26
48
47
48
4
34
27
48
43
38
47
44
48
19
3
47
25
10
1
5
6
40
40
8
39
45
33
23
17
12
49
30
29
36
41
37
47
5
42
47
18
2
11
32
24
9
22
20
46
13
47
33
31
28
35
21

Артикул

Название

Примечание

Количество

1

84280362

HYDRAULIC MOTOR,1259CC

Two Speed, RH, Incl 2 - 49

1шт.

2

NSS

NOT SOLD SEPARAT

Piston, Incl In 1

8шт.

3

NSS

NOT SOLD SEPARAT

Piston Retainer, Incl In 1

1шт.

4

NSS

NOT SOLD SEPARAT

Cam Ring, Incl In 1

1шт.

5

87484762

O-RING

Cam Ring

2шт.

6

NSS

NOT SOLD SEPARAT

Cover, Distributor, Incl In 1

1шт.

7

NSS

NOT SOLD SEPARAT

Screw, Socket Head Cap, Incl In 1

6шт.

8

NSS

NOT SOLD SEPARAT

Valve, Distributor, Incl In 1

1шт.

9

87484763

SEAL KIT

Distributor Seal

1шт.

10

NSS

NOT SOLD SEPARAT

Plug, Hex Socket, Incl In 1

1шт.

11

NSS

NOT SOLD SEPARAT

Screw, Socket Head Cap, Incl In 1

4шт.

12

NSS

NOT SOLD SEPARAT

Spring, Incl In 1

9шт.

13

NSS

NOT SOLD SEPARAT

Spool, Incl In 1

1шт.

14

NSS

NOT SOLD SEPARAT

Washer, Not Illustrated, Incl In 1

1шт.

15

NSS

NOT SOLD SEPARAT

Snap Ring, Not Illustrated, Incl In 1

1шт.

16

NSS

NOT SOLD SEPARAT

Spring, Not Illustrated, Incl In 1

1шт.

17

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

2шт.

18

NSS

NOT SOLD SEPARAT

Washer, Bleed Screw, Incl In 1

1шт.

19

NSS

NOT SOLD SEPARAT

Screw, Socket Head Cap, Incl In 1

1шт.

20

NSS

NOT SOLD SEPARAT

Safety Pin, Incl In 1

2шт.

21

NSS

NOT SOLD SEPARAT

Bearing Support, Incl In 1

1шт.

22

NSS

NOT SOLD SEPARAT

Bearing Support, Incl In 1

1шт.

23

87485684

SEAL

Inner Shaft

1шт.

24

87485685

BEARING

Outer

1шт.

25

87485686

BEARING

Inner

1шт.

26

NSS

NOT SOLD SEPARAT

Split Ring, Incl In 1

1шт.

27

NSS

NOT SOLD SEPARAT

Shim, Incl In 1

1шт.

28

NSS

NOT SOLD SEPARAT

Seal, Grease, Incl In 1

1шт.

29

NSS

NOT SOLD SEPARAT

Deflector, Incl In 1

1шт.

30

NSS

NOT SOLD SEPARAT

Shaft, Incl In 1

1шт.

31

432698A1

GUIDE

Pin, Top

1шт.

32

84800194

PIN,3.15" OD x 3.07" L

Pin, Bottom

1шт.

33

86508097

HEX SOC SCREW,M10 x 25mm, Cl 12.9, Full Thd

9шт.

34

NSS

NOT SOLD SEPARAT

Kit, Pivot Seal, Incl In 1

2шт.

35

84800212

TUBE,1.77" OD x 5.24" L

Outer, With Seals

1шт.

36

84800213

TUBE,1.25" DIA x 7.05" L

Inner, With Seals

1шт.

37

84817916

BUSHING,80.01mm ID x 89.15mm OD x 20.07mm L

3.51" OD x 3.15" ID x .79"

2шт.

38

84817900

THRUST WASHER,3.23" ID x .08" Thk

3.23" ID x .08"

2шт.

39

84817924

DUST CAP,137.92mm OD x 22.1mm W

Protection

2шт.

40

9515561

HEX SOC SCREW,M6 x 35mm, Cl 12.9

8шт.

41

84817917

SEAL,66.04mm ID x 76.71mm OD x 5.33mm Thk

Top Pin

1шт.

42

84817926

SEAL,109.22mm ID x 127mm OD x 9.14mm Thk

Trash

2шт.

43

87283383

VALVE

Pilot, 2 Speed

1шт.

44

NSS

NOT SOLD SEPARAT

Screw, Socket Head Cap, Incl In 1

4шт.

45

NSS

NOT SOLD SEPARAT

O-Ring, Incl In Ref 1

4шт.

46

NSS

NOT SOLD SEPARAT

Cover, Pilot Valve, Incl In 1

1шт.

47

87360505

SEAL KIT

Incl 5, 9, 41, Includes 7 Additional NSS Seals For Motor

1шт.

48

87552816

BEARING ASSY

Front Side Motor, Incl 23 - 25

1шт.

48

87552816R

REMAN-WHEEL END ASSY

1шт.

48

87552816C

CORE-WHEEL END ASSY

1шт.

49

NSS

NOT SOLD SEPARAT

Cylinder Block, Incl In 1

1шт.

Выбрано товаров: 51
