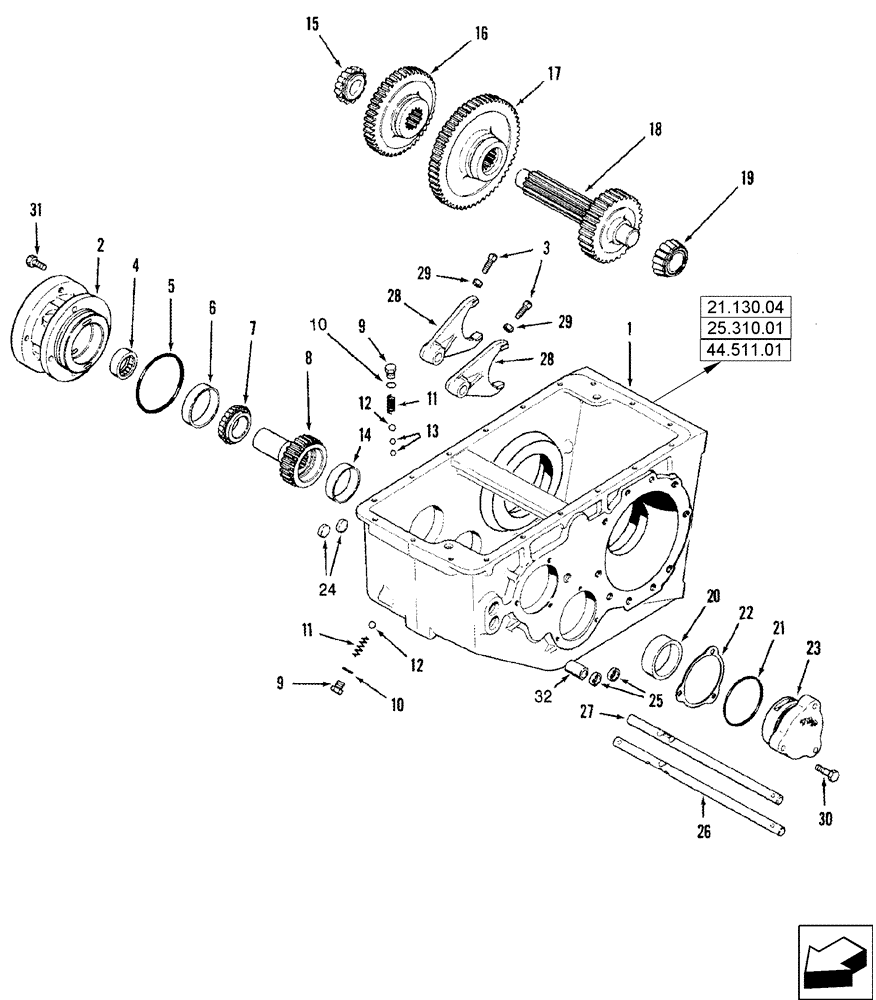

Запчасти Case IH 7130 (21.140.01) - TRANSMISSION ASSY - INPUT SHAFT, GEARS AND SHIFTER RAILS (21) - TRANSMISSION

1

REF

INSTRUCTION

See Page 21.130.04 For Complete Assys

1шт.

2

84163252

HOUSING

Input Shaft

1шт.

3

1997657C1

SET SCREW

2шт.

4

675708R91

NEEDLE BEARING

2.125 ID

1шт.

5

86637742

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

1шт.

6

105497H

BEARING CUP,96.85mm OD x 15.77mm W

3-17/64 OD

1шт.

7

L33289

ROLLER BEARING,57.1565mm ID x 21.857mm Thk

1шт.

8

84160943

GEAR

Input Pinion, 26T

1шт.

9

76349

PLUG,9/16" - 18 ORB

Incl 10

2шт.

9

84152678

SWITCH

Detent Switch, If Used

2шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

87670320

SPRING

Poppet Spring, Used With 84152678 Switch

2шт.

12

211-1016

BALL,12.7mm OD, Gr 24

Gr 24, CRS

2шт.

12

86624945

BALL,11.11mm OD, Gr 24

Used With 87670320 Poppet

2шт.

13

211-1014

BALL,7/16" Dia

24, CRS

2шт.

14

51200379

BEARING CUP,69.9mm OD x 18.95mm W

2-3/4 OD

1шт.

15

50212VA

ROLLER BEARING,33.35mm ID x 24.01mm W

1-5/16 ID

1шт.

16

84283747

GEAR

26T, 46T, Second and Third Sliding

1шт.

17

401889R1

GEAR

58T, First Sliding

1шт.

18

1342934C1

SHAFT

37T, Drive Gear, Slow

1шт.

18

84283745

GEAR SHAFT

35T, Fast

1шт.

19

290099C91

TAPERED BEARING,39.69mm ID x 22.1mm W

1-9/16 ID

1шт.

20

290100C1

BEARING CUP,73.05mm OD x 17.78mm W

2-7/8 OD

1шт.

21

238-7154

O-RING,0.103" Thk x 3.737" ID, -154, Cl 7, 75 Duro

1шт.

22

401883R2

SHIM,102mm ID x 126mm OD x 0.08mm Thk

(0.003)

1шт.

22

401884R2

SHIM,102mm ID x 110mm OD x 0.13mm Thk

(0.005)

1шт.

22

401885R2

SHIM,102mm ID x 110mm OD x 0.18mm Thk

(0.007)

1шт.

22

184195C2

SHIM,102mm ID x 110mm OD x 0.76mm Thk

(0.030)

1шт.

23

1997998C1

BEARING COVER,72.99 mm ID x 101.51 mm OD x 37.8 mm

Bearing

1шт.

24

41-1012

PLUG,Cup, 3/4"

2шт.

25

1997906C1

OIL SEAL,19.05mm ID x 31.85mm OD x 6.35mm Thk

Shifter Rail Oil

2шт.

26

87574759

SHIFT RAIL

Second and Third Gear

1шт.

27

84213134

SHIFT RAIL

First Gear

1шт.

28

1997656C1

SHIFTER FORK

2шт.

29

829-1310

NUT,M10, Cl 10

2шт.

30

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

3шт.

31

613-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

4шт.

32

189168A1

SPACER

Shift Rail

1шт.
