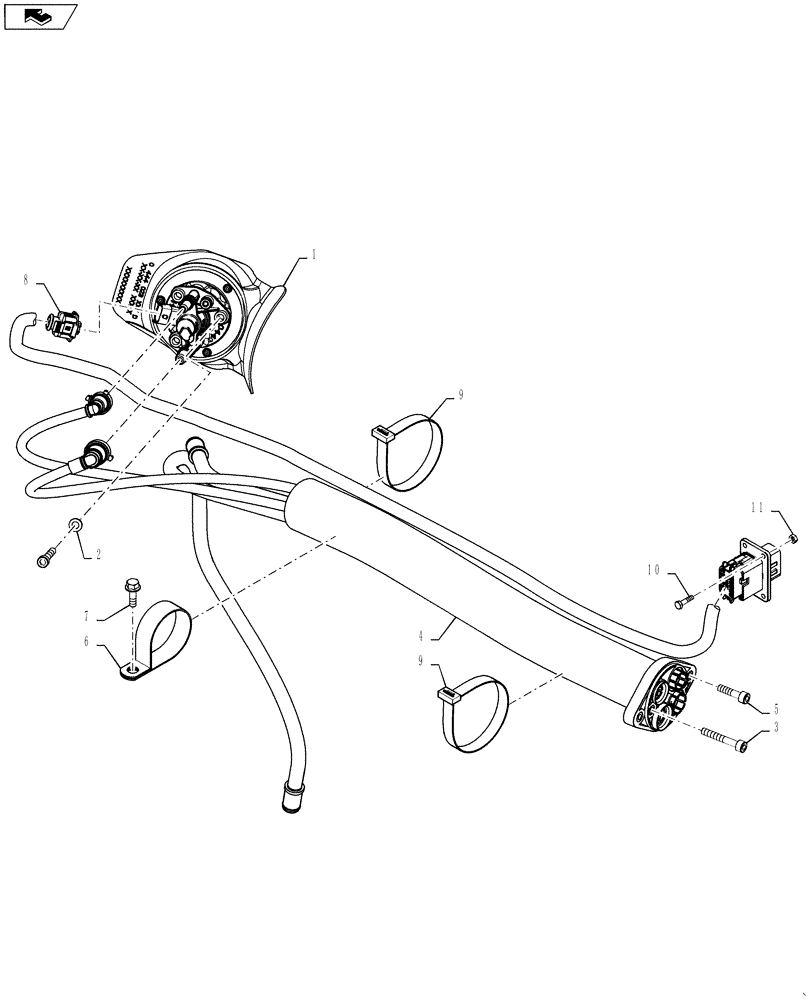

Запчасти Case IH 7130 (10.500.02) - DEF/ADBLUE SUPPLY, EXHAUST CONNECTIONS (10) - ENGINE

1

84247021

MODULE,Dosing Injector

DE NOX2 UREA DOSING VALVE

1шт.

2

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

3

14305821

HEX SOC SCREW,M6 x 40mm, Cl 8.8

5шт.

4

84293028

TUBE

5130 Only NEF *No Service Components*

1шт.

4

84293029

TUBE

61/7130 Cursor 9 *No Service Components*

1шт.

5

9832203

HEX SOC SCREW,M6 x 25mm, Cl 8.8, Full Thd

2шт.

6

515-23508

CLAMP,2", Insul, 3/8" Bolt

1шт.

7

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

4шт.

8

84499591

WIRE HARNESS

1шт.

9

84266050

CABLE TIE,384mm L, Polyamide

4шт.

10

412064

BOLT,Hex, M4 x 16mm, Cl 8.8, Full Thd

2шт.

11

100012

NUT,M4 x 0.7, Cl 8

2шт.
