Запчасти Case IH 7130 (10.500.01) - DEF/ADBLUE SUPPLY (10) - ENGINE

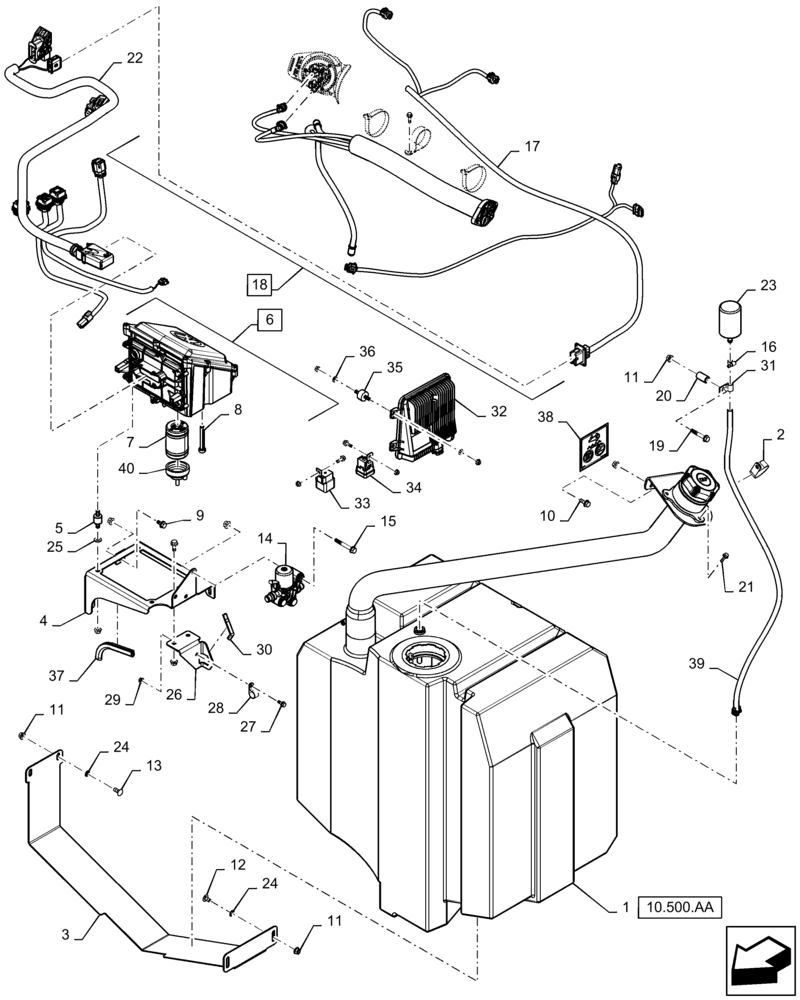

Схема запчастей Case IH 7130 - (10.500.01) - DEF/ADBLUE SUPPLY (10) - ENGINE
17
22
19
24
11
6
38
5
34
35
14
2
3
30
8
11
40
31
13
36
37
32
26
7
29
4
33
12
1
37
10
18
10.500.aa
23
39
21
15
16
25
27
20
9
28
24
11

Артикул

Название

Примечание

Количество

1

84151000

TANK

DEF/ADBLUE

1шт.

2

515-23444

CLAMP,1 3/4", Insul, 3/8" Bolt

1шт.

3

84230069

SUPPORT

Support, DEF/ ADBLUE Tank Bottom

1шт.

4

84469953

BRACKET

Support, DENOX ECU

1шт.

5

84558714

SHOCK ABSORBER

DEF/ ADBLUE Module

4шт.

6

84246892

MODULE

DEF/ ADBLUE Supply, Incl 7, 8, 40

1шт.

6

84246892R

REMAN-MODULE

DEF/ ADBLUE Supply

1шт.

6

84246892C

CORE-MODULE

Return Number

1шт.

7

84254852

FILTER

DEF/ ADBLUE, Module, Primary

1шт.

8

84247272

FILTER,In-Line

DEF/ ADBLUE, Insert, 30mm OAL

1шт.

9

87681207

BOLT,M8 x 24.1mm, Cl 10.9

3шт.

10

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

4шт.

11

86507066

FLANGE NUT,M8 x 1.25, Cl 10

19шт.

12

87020310

CARRIAGE BOLT,M8 x 1.25 x 20.8mm, Cl 10.9

2шт.

13

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

2шт.

14

84151635

HEATER VALVE

1шт.

15

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

3шт.

16

86625041

HOSE CLAMP,11.2mm - 19.8mm

1шт.

17

84368623

WIRE HARNESS

DEF/ADBLUE Level

1шт.

18

84293027

TUBE

Fuel Line Bundle, Incl 17

1шт.

19

87698763

FLANGE BOLT,Hex, M8 x 50mm, Cl 0.9

1шт.

20

84132594

SPACER,10.7mm ID x 17.1mm OD x 30mm OAL

Support

1шт.

21

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

3шт.

22

84499598

WIRE HARNESS

Denox System

1шт.

23

47437399

FUEL FILTER

DEF/ADBLUE Tank Vent

1шт.

24

131-440

PUSH-ON NUT

Retainer

4шт.

25

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

26

84422163

BRACKET

Filter

1шт.

27

87552802

CLAMP,19mm, Coat, 7.1mm Bolt Hole, P Type

19mm Insulated

1шт.

28

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

1шт.

29

86050300

FLANGE NUT,M6 x 1.0, Cl 10

12шт.

30

86516805

SOFT TRIM,31-3/4" L

Cut From Bulk, .2 Ft

1шт.

31

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

32

84383005

CONVERTER,12V To 24V

12V TO 24V

1шт.

33

84261547

RELAY

24V W/ Bracket, 5 Spade

1шт.

34

86508603

RELAY,12V

W/ Bracket, 5 Spade

2шт.

35

84341086

DAMPER,M6 x 51mm, 25mm OD

Converter Mount

4шт.

36

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

8шт.

37

196707C1

SEAL

Cut From Bulk, .5 Ft

1шт.

38

84284896

DECAL,DEF TANK identification label

DEF/ADBLUE Fill

1шт.

39

47567176

HOSE

Vent

1шт.

40

47401714

FILTER HEAD

Filter Cap

1шт.

Выбрано товаров: 42
