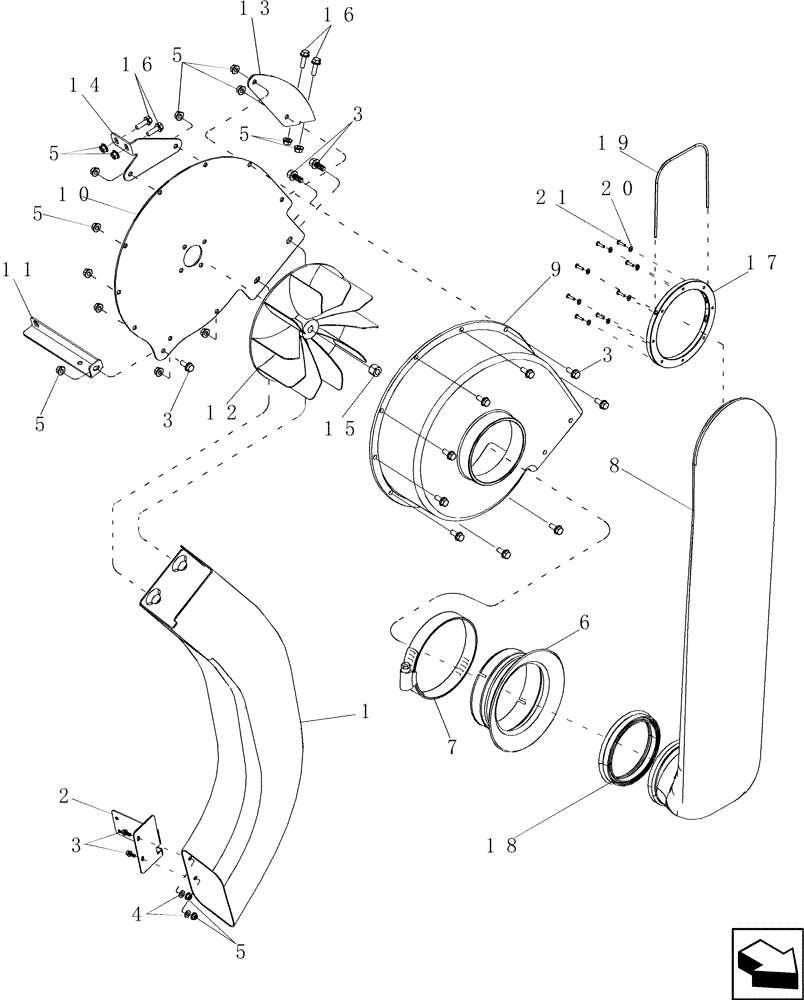

Запчасти Case IH 7130 (10.418.33) - STATIONARY AIR SCREEN VACUUM SYSTEM (10) - ENGINE

1

87596685

DUCT

Discharge

1шт.

2

87596688

BRACKET

Discharge Duct

1шт.

3

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

14шт.

4

86639313

WASHER,9mm ID x 24mm OD x 2mm Thk

2шт.

5

86507066

FLANGE NUT,M8 x 1.25, Cl 10

18шт.

6

87479340

SPACER,132mm ID x 205mm OD x 70mm Thk

Air Inlet

1шт.

7

214-1496

HOSE CLAMP,#96, 5.56" - 6.5", Type F Worm

1шт.

8

87692664

DUCT

Fixed Screen Outer

1шт.

9

87479341

HOUSING

Vacuum Fan Housing

1шт.

10

87596053

BRACKET

Suction Fan

1шт.

11

84270855

BRACKET

Suction Fan

1шт.

12

87385913

FAN

Vacuum

1шт.

13

87596066

BRACKET

Motor Plate

1шт.

14

87596068

BRACKET

Motor Plate

1шт.

15

87366201

NUT

1шт.

16

87698833

BOLT,M8 x 33.1mm, Cl 10.9

4шт.

17

87472744

RING

Outside

1шт.

18

87363448

SEAL,Blockoff, 482mm L

Duct

1шт.

19

87717348

WIRE

Stationary Air Screen Hub Retaining

1шт.

20

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

8шт.

21

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

8шт.
