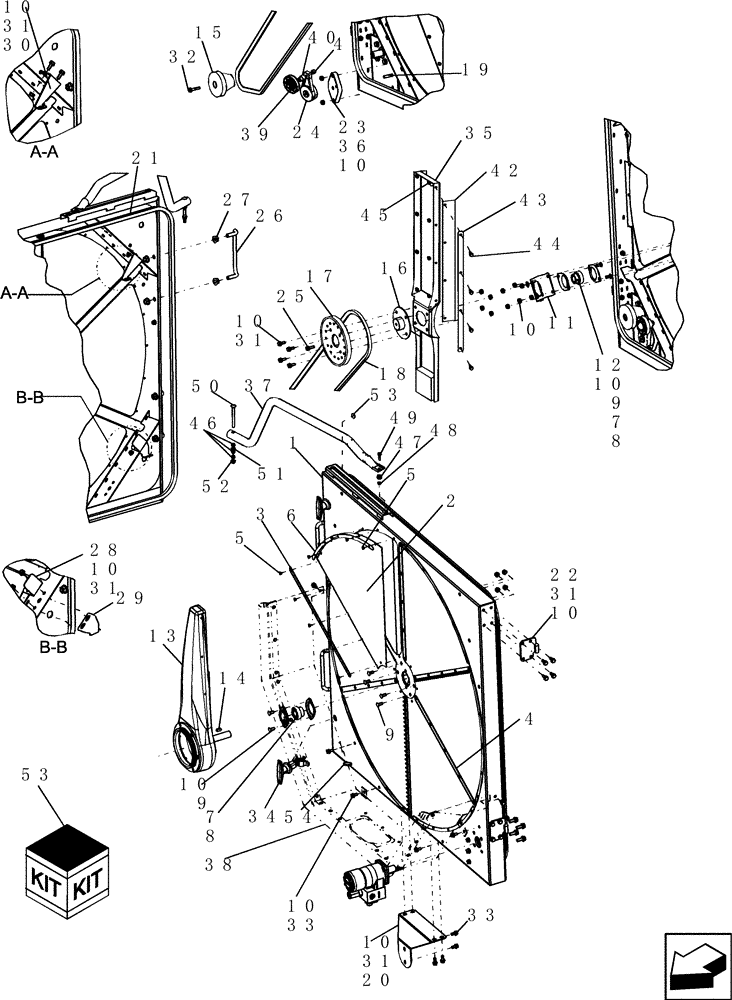

Запчасти Case IH 7130 (10.418.32) - DOOR ASSEMBLY, STATIONARY AIR SCREEN (10) - ENGINE

1

84191711

DOOR

Fixed Air Screen

1шт.

2

87644459

SCREEN

Wedge Perorated Air

6шт.

3

87646364

KNIFE

Stationary Air Screen Door

3шт.

4

87644454

ANGLE

Stationary Air Screen Door

3шт.

5

87644487

RIVET,Pop, 4.76mm OD x 10.92mm L

66шт.

6

87693137

SUPPORT ASSY.

Outer Retaining

6шт.

7

86548974

FLANGE,Bearing

Housing

4шт.

8

325103

BALL BEARING,25mm ID x 52mm OD x 15mm W

2шт.

9

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

8шт.

10

86507066

FLANGE NUT,M8 x 1.25, Cl 10

35шт.

11

87682654

BRACKET

Stationary Air Screen Bearing

1шт.

12

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

13

87609366

NOZZLE

Air Screen, Assy

1шт.

14

10619520

KEY,8mm W x 20mm L x 7mm H

1шт.

15

87682772

PULLEY,25.05mm ID x 100mm OD x 79mm W

Pulley

1шт.

16

87581597

RETAINING PLATE

1шт.

17

87585076

PULLEY,197.65mm OD

Air Screen

1шт.

18

87583785

V-BELT,12.7mm W

Air Screen

1шт.

19

160-104

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 8

1шт.

20

87590718

SHEET ASSY.

Suction Duct Strap

1шт.

21

87598111

DOOR SEAL

Door

1шт.

22

87654393

HINGE

Cooler Door Upper

2шт.

23

87663397

SPACER,19mm W, 100mm Centerline Length

Tensioner

1шт.

24

87607602

PULLEY ASSY.

Belt Tensioner

1шт.

25

87698833

BOLT,M8 x 33.1mm, Cl 10.9

1шт.

26

1329715C1

HANDLE

Rear Service Ladder

2шт.

27

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

28

87632645

ANGLE

Condenser Bumper Stationary Air Screen

1шт.

29

87685964

BRACKET

Door Ramp

1шт.

30

87634114

ANGLE

Condenser Bumper Stationary Air Screen, Top

1шт.

31

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

20шт.

32

87698834

BOLT,M8 x 48.1mm, Cl 10.9

1шт.

33

87681207

BOLT,M8 x 24.1mm, Cl 10.9

7шт.

34

87283386

LATCH

1/4 Turn Compression

1шт.

35

84123676

BRACKET

1шт.

36

87695419

FLANGE BOLT,M8 x 43.1mm, Cl 10.9

2шт.

37

87755014

RAIL ASSY.

Cooler Box Door

1шт.

87472510

LATCH

Component part. Latch For EU only

1шт.

38

87746049

BRACKET

Cooler Box Blockoff, Incl 55 - 59

1шт.

39

87607844

PULLEY

Belt Tensioner

1шт.

40

87607847

SPACER

Tensioner Pulley

1шт.

41

160-104

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 8

1шт.

42

87687393

RUBBER SEAL,540mm L

Blockoff

2шт.

43

87687575

STRAP

Seal Retainer

2шт.

44

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

8шт.

45

87301498

FLANGE NUT,Hex, M6 x 1.0, Cl 10

8шт.

46

87674756

WASHER

3шт.

47

87670013

SPACER,7mm ID x 18mm OD x 9.5mm Thk

Safety Rail

1шт.

48

86619800

FLANGE NUT,M6 x 1, Cl 8

1шт.

49

87670758

FLANGE BOLT,M6 x 31.6mm, Cl 10.9

1шт.

50

9811147

CARRIAGE BOLT,Sq Nk, M8 x 100mm, Cl 8.8

1шт.

51

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

52

86619801

FLANGE NUT,M8 x 1.25, Cl 8

1шт.

53

87687385

DIA KIT, HARVESTER

Dia, Harvest Kit Stationary Air Screen Brush, DIA

1шт.

54

86625129

PLUG,Dome, 1" Hole, Nylon

1шт.

55

87746050

RUBBER SEAL,Blockoff, 180mm W x 345mm L

Cooler Box Blockoff

1шт.

56

87746051

RUBBER SEAL,Blockoff, 180mm W x 520mm L

Cooler Box Blockoff

1шт.

57

87746052

RUBBER SEAL,Blockoff, 180mm W x 650mm L

Cooler Box Blockoff

1шт.

58

87746053

RUBBER SEAL,Blockoff, 180mm W x 515mm L

Cooler Box Blockoff

1шт.

59

87746063

RUBBER SEAL,Blockoff, 145mm W x 345mm L

Cooler Box Blockoff

1шт.
