Запчасти Case IH 7130 (10.250.13) - CHARGE AIR COOLER WITH WIPER ASSEMBLY (10) - ENGINE

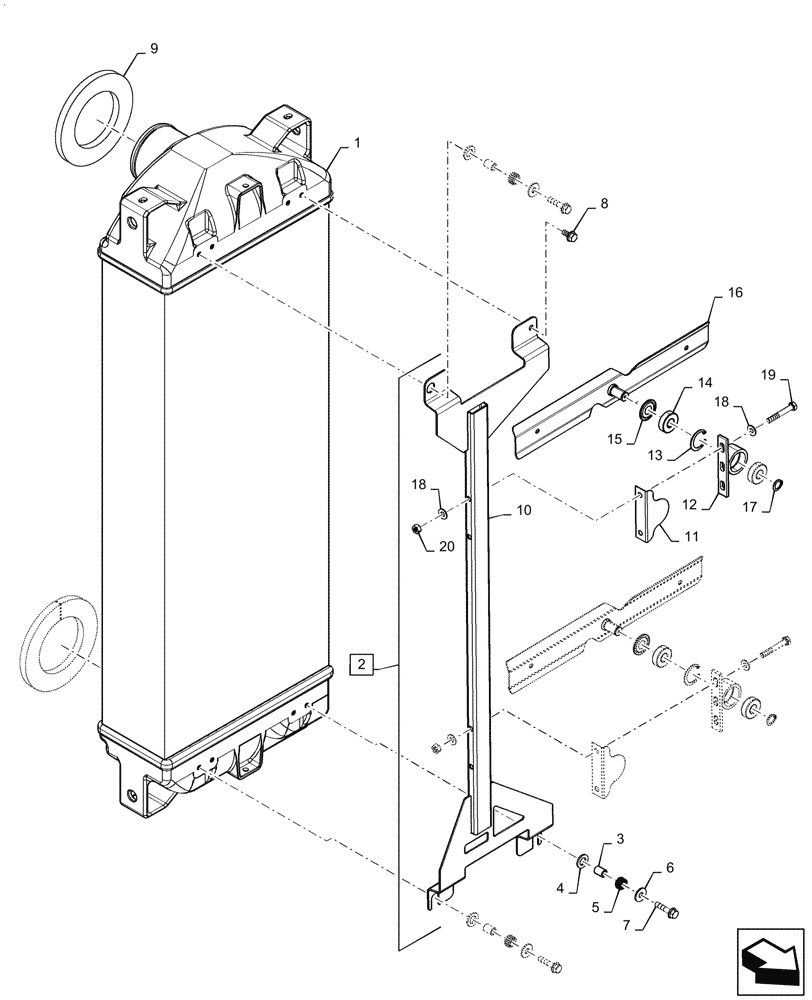

Схема запчастей Case IH 7130 - (10.250.13) - CHARGE AIR COOLER WITH WIPER ASSEMBLY (10) - ENGINE
7
18
11
13
14
15
16
1
19
5
18
6
20
17
10
3
9
12
2
4
8

Артикул

Название

Примечание

Количество

1

438250A2

COOLER

Charge Air Cooler, 1210mm OAL, Used on 5130 Only

1шт.

1

87325480

COOLER

Used On 61/7130 Only

1шт.

2

87381181

ASSEMBLY

Wiper

1шт.

3

87392240

SPACER,8.48mm ID x 12.7mm OD x 16.8mm L

3шт.

4

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

3шт.

5

87392233

COMPRESSION SPRING,17.2mm OD x 22.5mm L

3шт.

6

86639313

WASHER,9mm ID x 24mm OD x 2mm Thk

3шт.

7

87695419

FLANGE BOLT,M8 x 43.1mm, Cl 10.9

3шт.

8

87681207

BOLT,M8 x 24.1mm, Cl 10.9

1шт.

9

NS

NOT SERVICED

SEAL, Fan Shroud, 520 mm (20.47 in), Cut From 1319664C3

2шт.

10

87383453

CHANNEL

CAC Wiper

1шт.

11

87339125

BRACKET

CAC Wiper

2шт.

12

604599

SUPPORT

Bearing

2шт.

13

300642

CIRCLIP,M35 x 1.5mm W, Internal

2шт.

14

308803

BALL BEARING

Wiper

4шт.

15

47862000

SEAL

Bearing

2шт.

16

47862130

WIPER BLADE

CAC

2шт.

17

NNA301615

SNAP RING

2шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

19

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

4шт.

20

9706690

NUT,M8 x 1.25, Cl 8

4шт.

Выбрано товаров: 21
