Запчасти Case IH 7130 (10.250.12[02]) - COOLER BOX, RADIATOR, AIR COOLER, OIL/CONDENSER COOLER, INTERNAL PARTS (10) - ENGINE

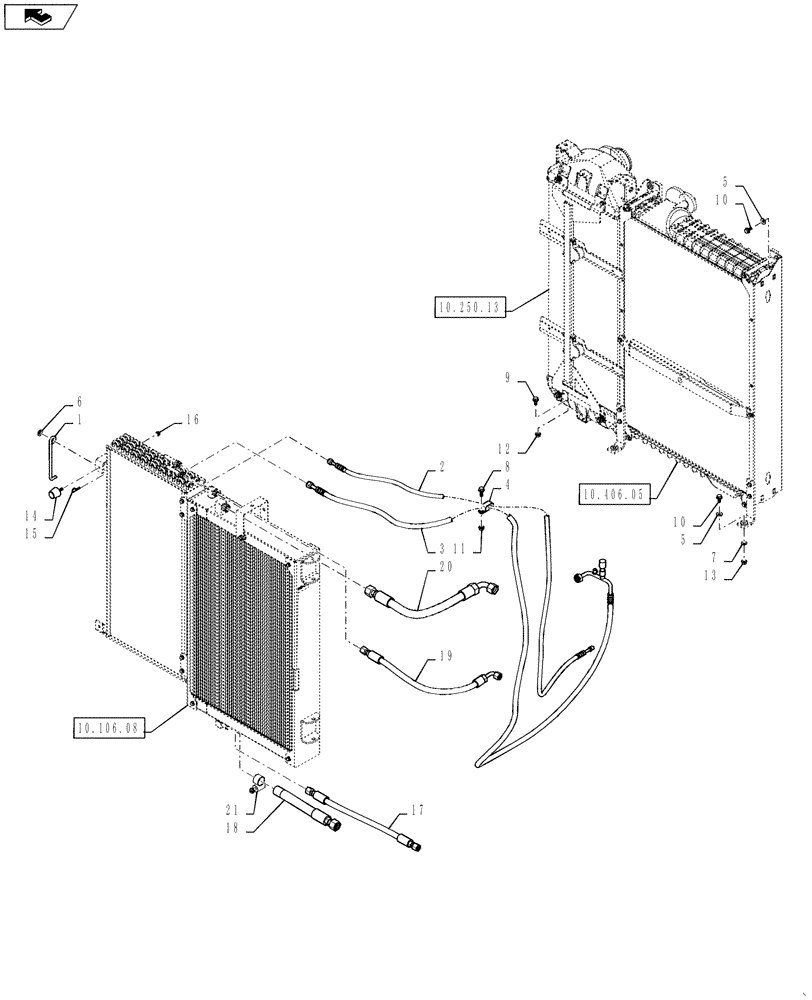

Схема запчастей Case IH 7130 - (10.250.12[02]) - COOLER BOX, RADIATOR, AIR COOLER, OIL/CONDENSER COOLER, INTERNAL PARTS (10) - ENGINE
7
21
14
15
2
11
home
5
18
16
1
13
9
4
20
6
12
17
3
10
8
5
19
10.106.08
10.250.13
10.406.05
10

Артикул

Название

Примечание

Количество

1

87575232

ROD

1шт.

2

84205552

A/C HOSE,7.94mm ID x 2660mm L

AC OUTLET TO CAB

1шт.

87000227

SWITCH, A/C HIGH PRE

Used On Ref 2

1шт.

3

84323355

HOSE ASSY.

COMPRESSOR TO CONDESER

1шт.

4

485093C1

CLAMP,13/16" Insul, 13/32" Bolt

1шт.

5

87033737

WASHER,9mm ID x 28mm OD x 3mm Thk

4шт.

6

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

1шт.

7

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

8

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

1шт.

9

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

2шт.

10

87698834

BOLT,M8 x 48.1mm, Cl 10.9

4шт.

11

86507066

FLANGE NUT,M8 x 1.25, Cl 10

1шт.

12

86050279

FLANGE NUT,M10 x 1.5, Cl 10

2шт.

13

86619801

FLANGE NUT,M8 x 1.25, Cl 8

4шт.

14

87109195

BUMPER,5/16" - 18, 38mm OD

2шт.

15

216698

COTTER PIN,0.125" OD x 1.75" L

1шт.

16

86521605

FLANGE NUT,5/16"-18, Cl 5

2шт.

17

84258365

A/C HOSE,12.7mm ID x 610mm L, SAE 100R17

PTO COOLER RETURN, Uses Oring 9992298

1шт.

18

84258366

A/C HOSE,19.05mm ID x 325mm L

HYD OIL COOLER RETURN, Uses Oring 9991976

1шт.

19

84258367

A/C HOSE,12.7mm ID x 700mm L, SAE 100R17

HYD OIL PTO, Uses Oring 9992298

1шт.

20

84258368

A/C HOSE,19.05mm ID x 625mm L, SAE 100R4

HYD COOLER SUPPLY, Uses Oring 9991976

1шт.

21

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

1шт.

Выбрано товаров: 22
