Запчасти Case IH 7130 (10.214.06) - FUEL, SUPPLY AND RETURN, REAR HOOD (10) - ENGINE

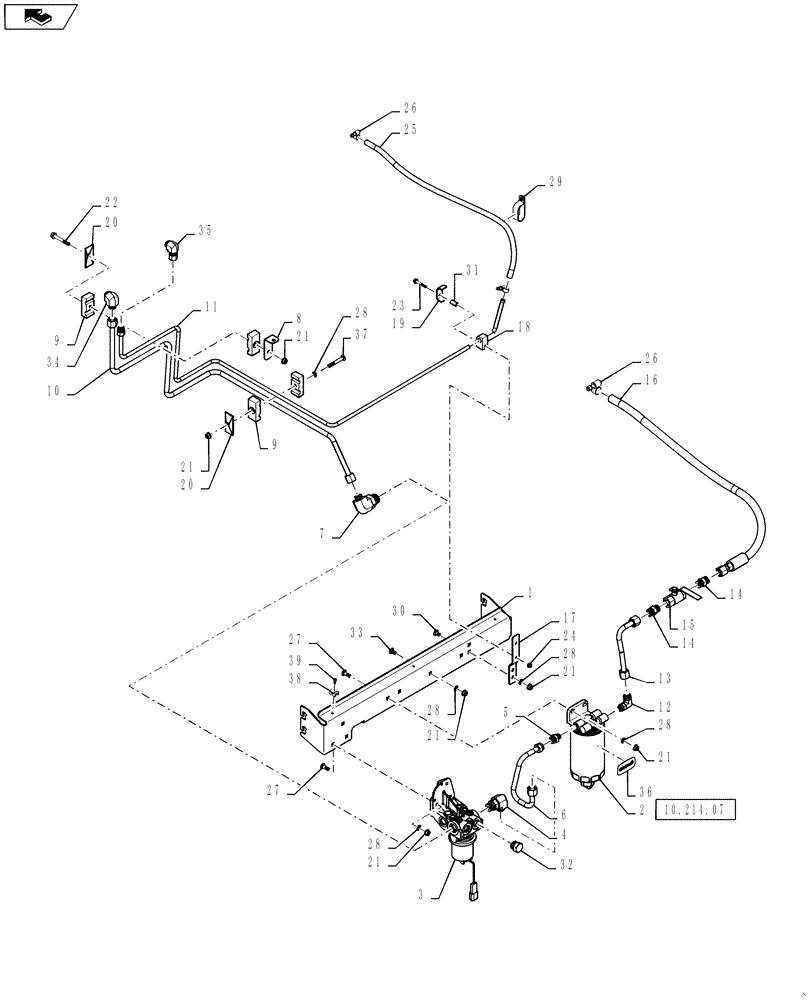

Схема запчастей Case IH 7130 - (10.214.06) - FUEL, SUPPLY AND RETURN, REAR HOOD (10) - ENGINE
home
11
21
34
28
10.214.07
12
27
19
6
29
22
10
31
33
28
15
7
38
30
9
37
1
5
28
20
24
3
27
9
21
39
8
35
32
28
13
28
4
21
17
36
20
21
2
14
26
23
21
18
26
14
25
16
21

Артикул

Название

Примечание

Количество

1

84230796

BRACKET

Def Tank,Side

1шт.

2

84357723

FUEL FILTER

Complete Fuel Filter W/ Head, Filter, Sensor

1шт.

3

87676818

FUEL PUMP,12V, 4.5A

1шт.

4

201-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

1шт.

5

84431916

FITTING

1шт.

6

87728316

FUEL TUBE,.5" OD

Fuel Filter To Pump

1шт.

7

201-327

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 1-1/16" - 12 Male ORB

1шт.

8

84497413

ANGLE

1шт.

9

87105732

CLAMP

2шт.

10

84497410

FUEL TUBE

Fuel Supply

1шт.

11

84497408

FUEL TUBE

Fuel Return

1шт.

12

5185548

ELBOW,M14 x 1.5mm ORB, 13/16"-16" ORFS

1шт.

13

84169781

TUBE

Fuel Supply

1шт.

14

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

2шт.

15

84185100

SHUT-OFF VALVE,3/4" - 16 x 3/4" - 16

1шт.

16

84169778

FUEL HOSE

Fuel Supply

1шт.

17

84206792

SUPPORT

1шт.

18

87644666

CLAMP

1шт.

19

87644667

PLATE

1шт.

20

87000230

PLATE

2шт.

21

86507066

FLANGE NUT,M8 x 1.25, Cl 10

11шт.

22

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

1шт.

23

87670759

FLANGE BOLT,M6 x 1.0 x 46.6mm, Cl 10.9

1шт.

24

86050300

FLANGE NUT,M6 x 1.0, Cl 10

1шт.

25

128073A1

HYDRAULIC HOSE,9.52 mm ID x 880.00 mm

Fuel Return

1шт.

26

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

3шт.

27

87682384

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 10.9

5шт.

28

131-440

PUSH-ON NUT

10шт.

29

470375C1

CLAMP,1", Insul, 3/8" Bolt

1шт.

30

87020310

CARRIAGE BOLT,M8 x 1.25 x 20.8mm, Cl 10.9

1шт.

31

303793A1

SLEEVE

1шт.

32

86512512

PLUG,7/8" - 14 ORB

2шт.

33

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

2шт.

34

201-334

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

1шт.

35

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

1шт.

36

87679098

DECAL,37mm x 70mm

CIH Filter Decal

1шт.

37

84319915

CARRIAGE BOLT,M8 x 1.25 x 64.8mm OAL, Cl 10.9

1шт.

38

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

3шт.

39

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

3шт.

Выбрано товаров: 39
