Запчасти Case IH 7130 (90.160.09) - CAB - INTERIOR TRIM (90) - PLATFORM, CAB, BODYWORK AND DECALS

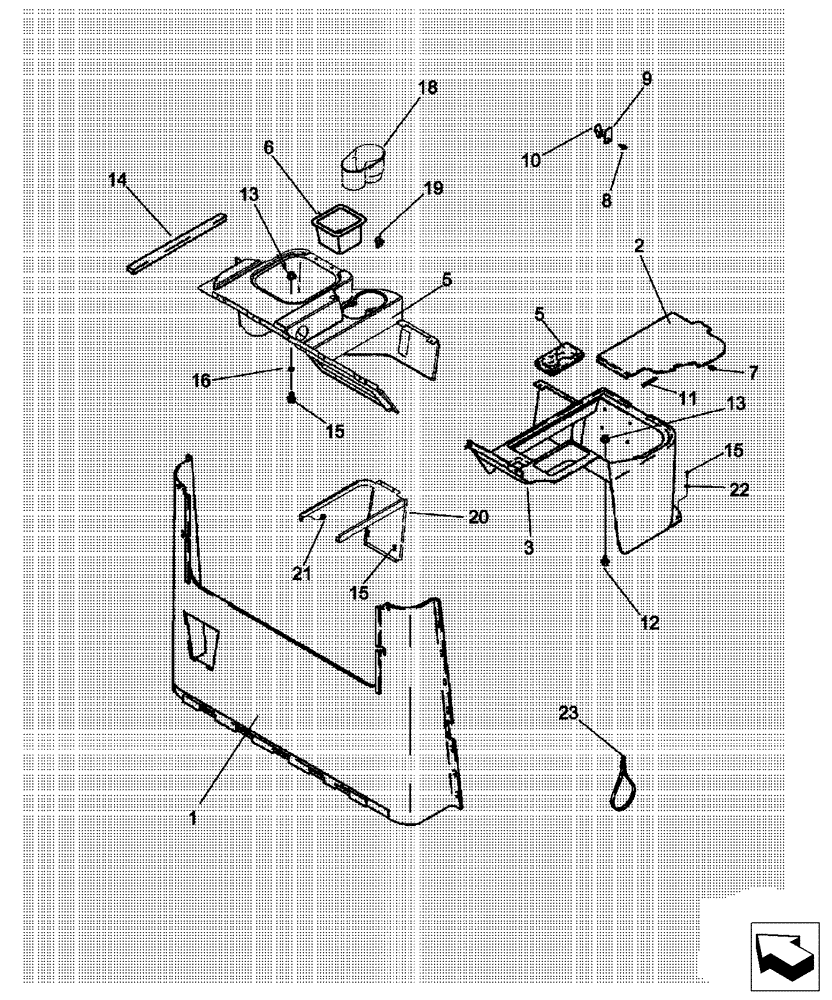

Схема запчастей Case IH 7130 - (90.160.09) - CAB - INTERIOR TRIM (90) - PLATFORM, CAB, BODYWORK AND DECALS
7
14
12
1
2
5
21
6
20
19
15
8
16
18
3
13
9
13
10
11
16
23
15
22
5

Артикул

Название

Примечание

Количество

1

87388140

PANEL

Rear Wall Trim

1шт.

2

87342570

ACCESS COVER

Fuse Access

1шт.

3

87342568

SHIELD

Pedestal, Right Hand

1шт.

4

87342569

COVER

Pedestal, Left Hand

1шт.

5

87580935

TRAY

Console Cupholder

1шт.

6

119308A2

TRAY

Storage

1шт.

7

121067A1

FASTENER

1 x 12, Cut From 121068A1 Velcro

2шт.

8

276-13520

SELF-TAP SCREW,Hex Hd, #10 x 1 1/4"

1шт.

9

60-6520T1

PLATE

1шт.

10

3234176R1

COAT HOOK

1шт.

11

1990258C1

SEAL

80 mm (3-5/32"), Cut From 87302032

2шт.

12

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

15шт.

13

231-51409

SERRATED NUT,Flg, USR, #10-24

12шт.

14

192269A1

FOAM INSULATION,25mm W x 500mm L x 19mm Thk

500 mm (19-5/8"), Cut From 1971350C1

3шт.

15

117067A1

SELF-TAP SCREW,Pan Hd, #10-24 x 3/4"

12шт.

16

492-11010

LOCK WASHER,#10

12шт.

17

353-410

PLUG,Dome, .875" hole, Nylon

1шт.

18

87342571

SHIELD

Cup

1шт.

19

278316A2

CLIP

2шт.

20

87707578

SUPPORT ASSY.

Pedestal, LH

1шт.

21

825-5146

SERRATED NUT,M6, Flg Ser

2шт.

22

495-31022

WASHER,#10

11шт.

23

1978896C1

STRAP

1шт.

Выбрано товаров: 23
