Запчасти Case IH 7130 (90.124.01) - SEAT, OPERATOR - AIR SUSPENSION - CUSHIONS AND KNOBS (90) - PLATFORM, CAB, BODYWORK AND DECALS

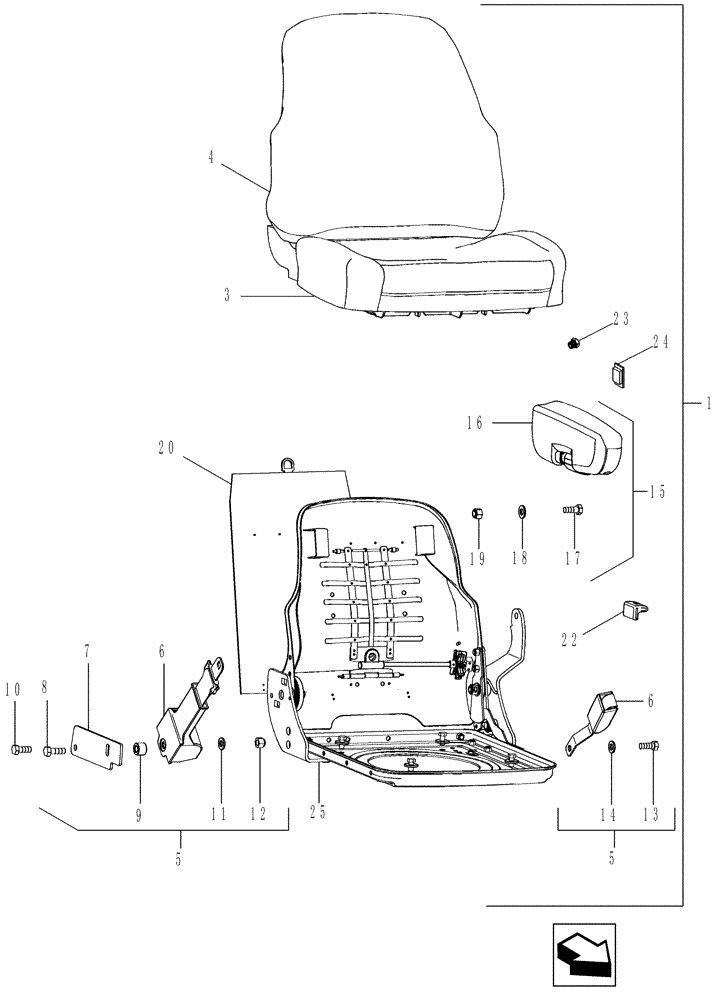

Схема запчастей Case IH 7130 - (90.124.01) - SEAT, OPERATOR - AIR SUSPENSION - CUSHIONS AND KNOBS (90) - PLATFORM, CAB, BODYWORK AND DECALS
14
18
22
23
24
7
9
16
20
5
6
5
11
12
3
6
17
1
10
15
8
25
19
13
4

Артикул

Название

Примечание

Количество

1

87686695

SEAT ASSY.

Cloth, Fabriform, Incl 2 - 25, (Not Shown)

1шт.

1

87686676

SEAT ASSY.

Cloth, Bucket, Incl 2 - 25, (Not Shown)

1шт.

1

87646953

SEAT ASSY.

Leather, With Heat, Incl 2 - 22 And 25 - 29, (Not Shown)

1шт.

2

84151261

SEAT ACCESSORY

Top, Cloth With Fabriform Cushions, Incl 3 - 25

1шт.

2

84151264

SEAT ACCESSORY

Top, With Bucket Style Cushions, Incl 3 - 25

1шт.

2

84151277

SEAT ACCESSORY

Top, Red Leather With 3-Position Heat, Incl 3 - 22 And 25 - 29

1шт.

3

87749241

SEAT CUSHION

Kit, Red Leather With Heat, Without OPS Switch

1шт.

3

87758013

CUSHION

Kit, Seat, Cloth Fabriform, With OPS Switch

1шт.

3

84120473

SEAT CUSHION

Kit, Seat, Cloth Bucket Style, Without OPS Switch, CIH Wheat

1шт.

4

87758229

CUSHION

Kit, Back, Cloth Fabriform

1шт.

4

84120474

CUSHION

Kit, Back, Cloth Bucket Style, CIH Wheat

1шт.

4

87397614

SEAT CUSHION

Kit, Back, Red Leather With Heat

1шт.

5

87416490

KIT

Seat Belt, Incl 6 - 14

1шт.

6

279671A1

SAFETY BELT ,48.00 mm W

1шт.

7

87416920

PLATE

Seat Belt Mounting

1шт.

8

815-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

1шт.

9

NSS

NOT SOLD SEPARAT

SPACER, Mounting Plate

1шт.

10

615-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

1шт.

11

895-10010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

12

832-41410

NUT,M10 x 1.5, Cl 10

1шт.

13

613-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

14

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

15

84120494

ARMREST

Kit, Left Hand, Incl 16 - 19

1шт.

16

NSS

NOT SOLD SEPARAT

ARMREST

1шт.

17

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

1шт.

18

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

1шт.

19

832-10312

NUT,M12 x 1.75, Cl8

1шт.

20

86994172

SERVICE KIT

Manual Holder

1шт.

21

86994165

SEAT ACCESSORY

Kit, Recliner Service (Not Shown)

1шт.

22

87416475

KNOB

Recliner

1шт.

23

84151297

PLUG

20 mm, Dome

1шт.

24

87749302

SWITCH

Heater Switch

1шт.

24

375200A1

PLUG

No Heater Switch

1шт.

25

87416485

KIT

Seat Top

1шт.
