Запчасти Case IH 7130 (90.120.09) - SEAT, INSTRUCTIONAL - STORAGE TRAY (90) - PLATFORM, CAB, BODYWORK AND DECALS

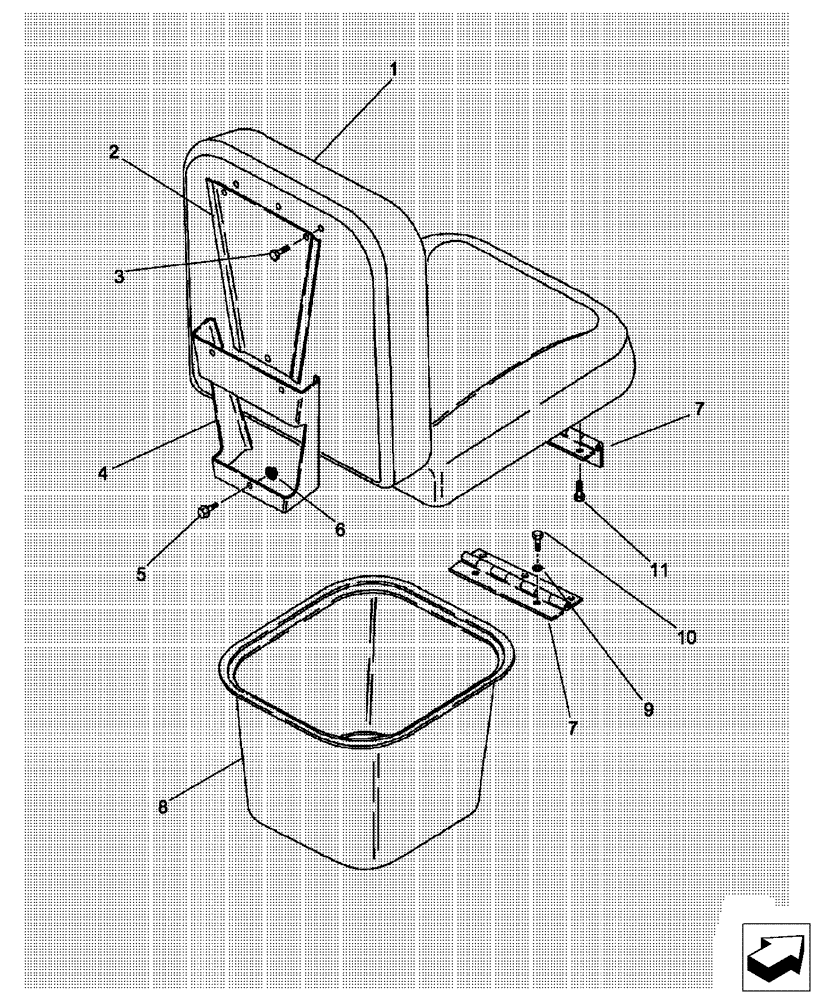

Схема запчастей Case IH 7130 - (90.120.09) - SEAT, INSTRUCTIONAL - STORAGE TRAY (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
8
11
10
2
9
5
7
7
6
1
3

Артикул

Название

Примечание

Количество

1

87618520

CUSHION

Frabric

2шт.

1

84142717

SEAT CUSHION

Red Leather

2шт.

2

119890A1

SUPPORT

Seat

1шт.

3

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

3шт.

4

119891A1

SUPPORT

Seat

1шт.

5

281-53510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

3шт.

6

231-51409

SERRATED NUT,Flg, USR, #10-24

3шт.

7

121062A1

HINGE

Seat

1шт.

8

119308A2

TRAY

1шт.

9

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

10

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

11

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

Выбрано товаров: 12
