Запчасти Case IH 7130 (90.118.50) - EXTENSION ASSEMBLY, 34 INCH DECK (EU ONLY) (90) - PLATFORM, CAB, BODYWORK AND DECALS

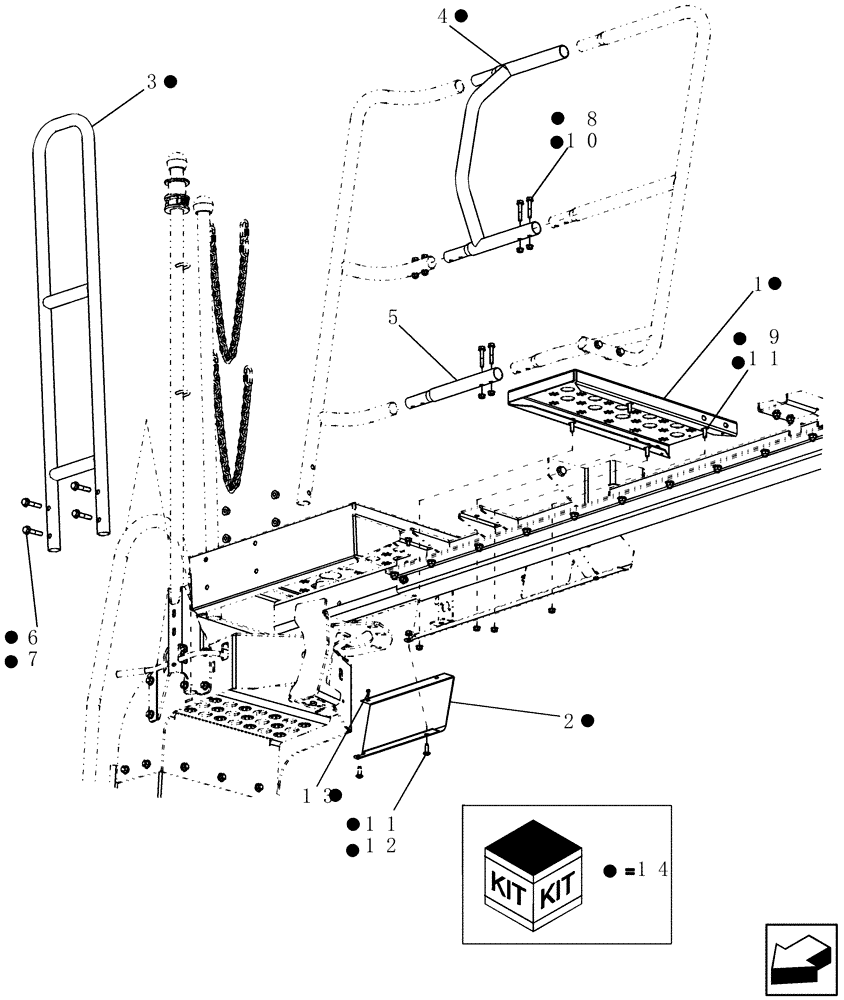

Схема запчастей Case IH 7130 - (90.118.50) - EXTENSION ASSEMBLY, 34 INCH DECK (EU ONLY) (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
1
8
9
11
7
2
10
12
9
3
14
11
13
4
6
5

Артикул

Название

Примечание

Количество

1

84158413

EXTENSION ASSY.

10 Inch Extension

1шт.

2

87665151

CHANNEL

Short Extension

1шт.

3

87607104

HANDRAIL

Rear

1шт.

4

87604237

EXTENSION ASSY.

Left Hand Handrail

1шт.

5

87619742

TUBE,28.2-33.35 mm OD

Handrail Extension

1шт.

6

857-10050

BOLT,Hvy Hex, M10 x 50mm, Cl 10.9

4шт.

7

86619802

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

8

844-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

4шт.

9

857-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 10.9

4шт.

10

86619801

FLANGE NUT,M8 x 1.25, Cl 8

4шт.

11

86507066

FLANGE NUT,M8 x 1.25, Cl 10

5шт.

12

87624708

STEP BOLT,Torx, M8 x 1.25 x 25.4mm, Cl 10.9

1шт.

13

282-1448

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

1шт.

14

87479324

DIA KIT, HARVESTER

DIA Kit, 34 Inch Deck, Inc. 1-13 EU ONLY

1шт.

Выбрано товаров: 14
