Запчасти Case IH 7130 (90.118.49[03]) - EXTENSION ASSEMBLY 62 INCH DECK (90) - PLATFORM, CAB, BODYWORK AND DECALS

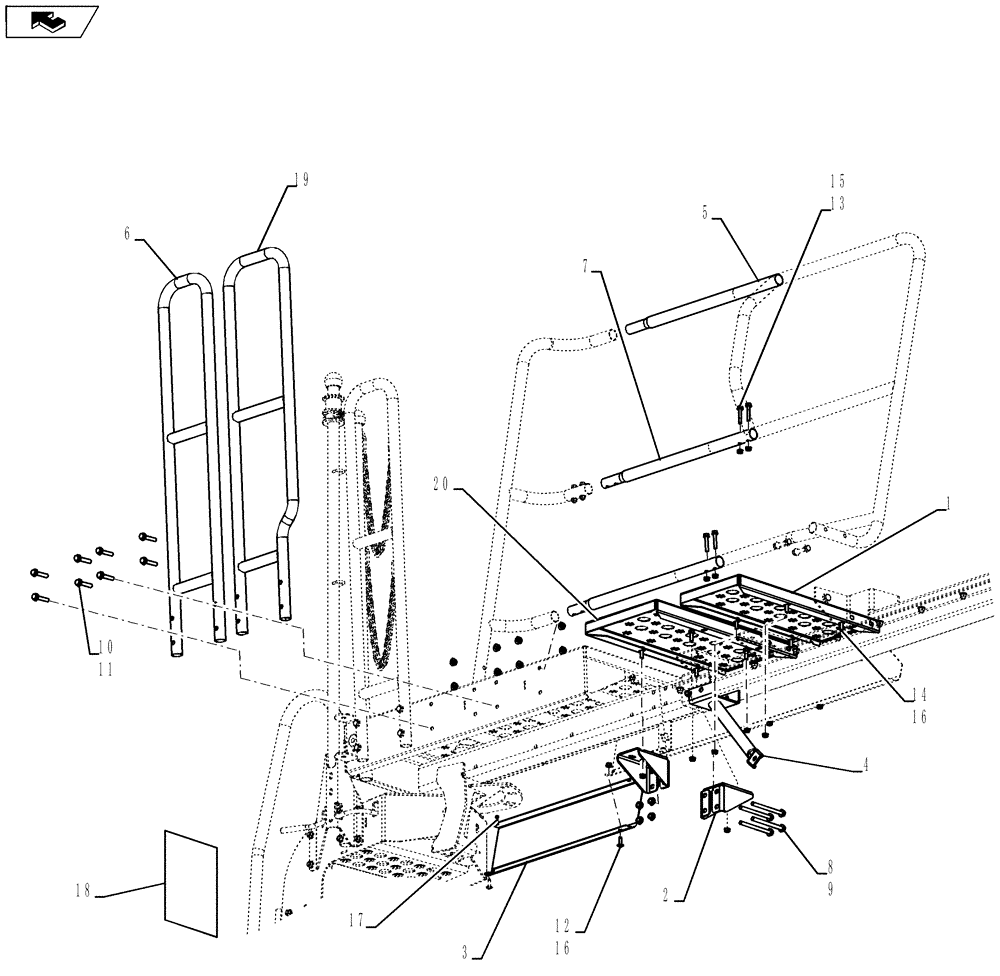

Схема запчастей Case IH 7130 - (90.118.49[03]) - EXTENSION ASSEMBLY 62 INCH DECK (90) - PLATFORM, CAB, BODYWORK AND DECALS
home
15
20
12
8
5
9
16
7
3
11
10
14
1
4
16
17
2
6
13
19
18

Артикул

Название

Примечание

Количество

1

84158413

EXTENSION ASSY.

10 Inch Extension

1шт.

2

84158444

SUPPORT ASSY.

Operator Deck

2шт.

3

84312271

TRIM PANEL

22 inch Extension

1шт.

4

143822A1

SUPPORT

1шт.

5

84258860

RIGID TUBE

Top Hand Rail Extension 22 inches

1шт.

6

87607104

HANDRAIL

Assembly Rear

1шт.

7

84258847

RIGID TUBE

Tube Handrail Extension 22 inch

2шт.

8

87681205

BOLT,Hex, M10 X 120, Class 10.9

M10x120

4шт.

9

86050279

FLANGE NUT,M10 x 1.5, Cl 10

4шт.

10

857-10050

BOLT,Hvy Hex, M10 x 50mm, Cl 10.9

8шт.

11

86619802

FLANGE NUT,M10 x 1.5, Cl 8

M10x1.5

8шт.

12

87624708

STEP BOLT,Torx, M8 x 1.25 x 25.4mm, Cl 10.9

WM8x1.25x25

1шт.

13

86619801

FLANGE NUT,M8 x 1.25, Cl 8

4шт.

14

857-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 10.9

8шт.

15

844-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

4шт.

16

86507066

FLANGE NUT,M8 x 1.25, Cl 10

9шт.

17

282-1448

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

1шт.

18

84182281

INSTRUCTION

1шт.

19

84258898

HANDRAIL

Handrail Assembly, Rear 22 inch Deck

1шт.

20

84258878

EXTENSION

Deck Extension 12 inch

1шт.

21

84259066

EXTENSION

DIA KIT (Includes Ref 1-20)

1шт.

Выбрано товаров: 21
